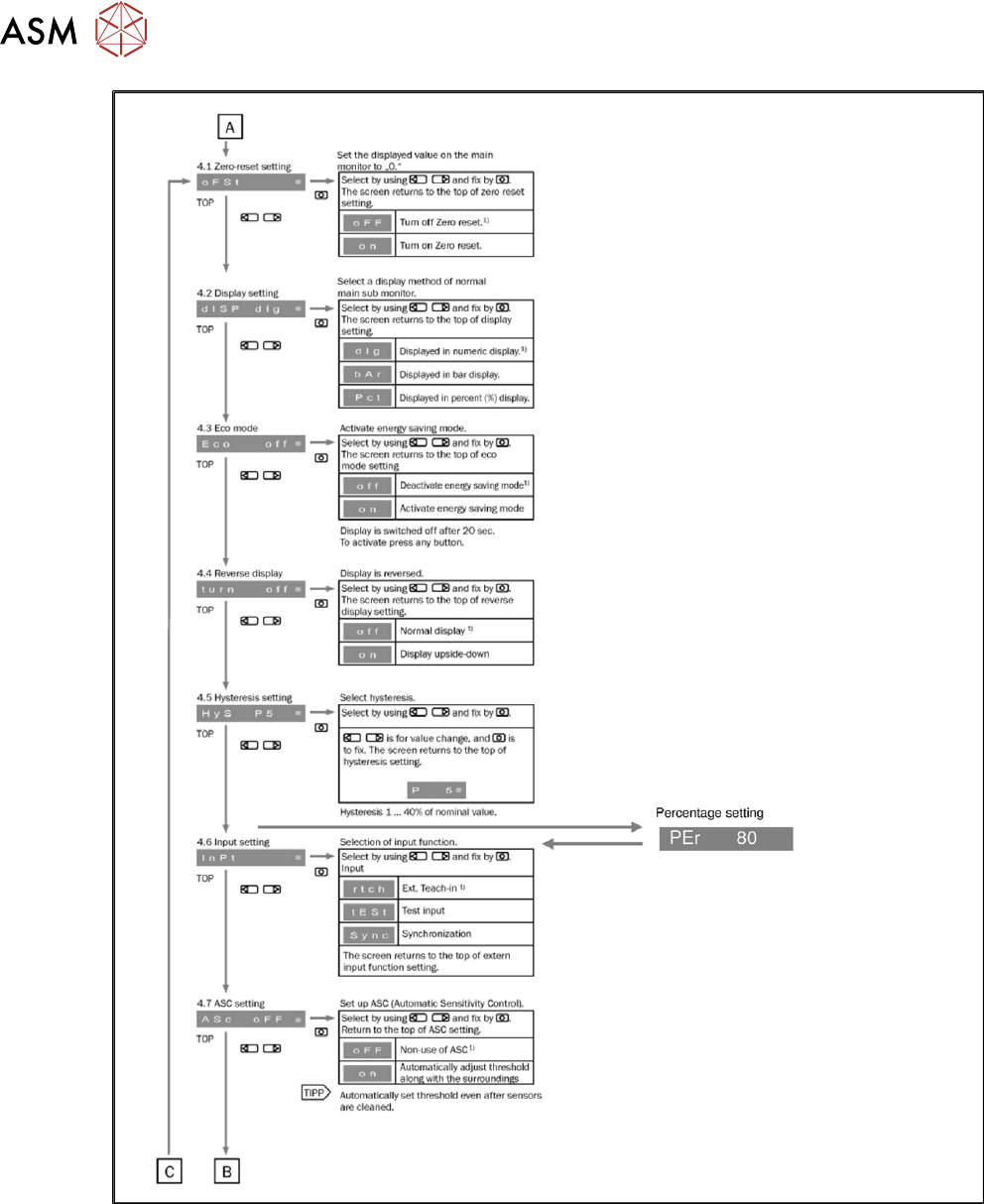

7 Conveyor 7.8 Laser light barriers, fiber optic cable and PCB sensors 238 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 Fig.313: Setting the fiber optic sensor - 3
7 Conveyor
7.8 Laser light barriers, fiber optic cable and PCB sensors
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 237

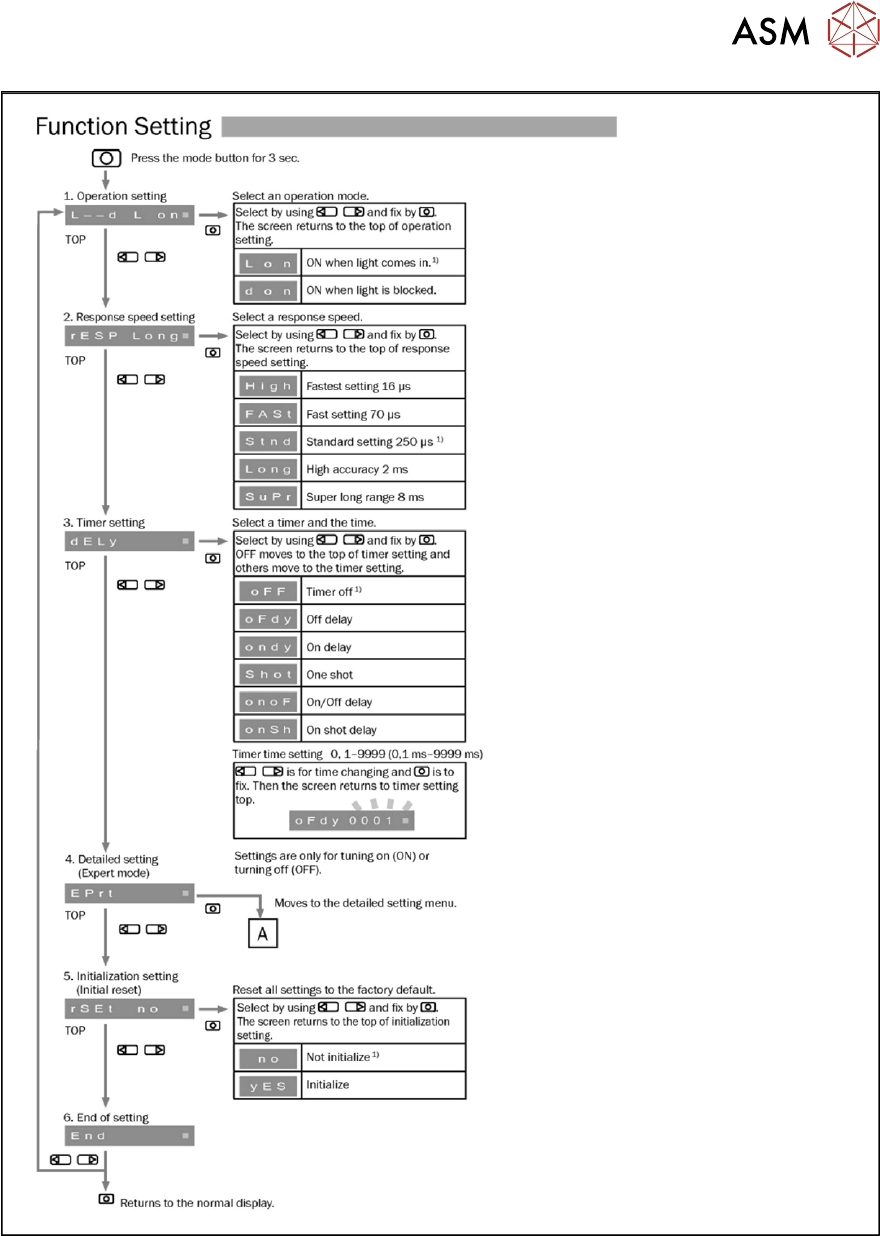

Fig.312: Setting the fiber optic sensor - 2
7 Conveyor
7.8 Laser light barriers, fiber optic cable and PCB sensors
238 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021

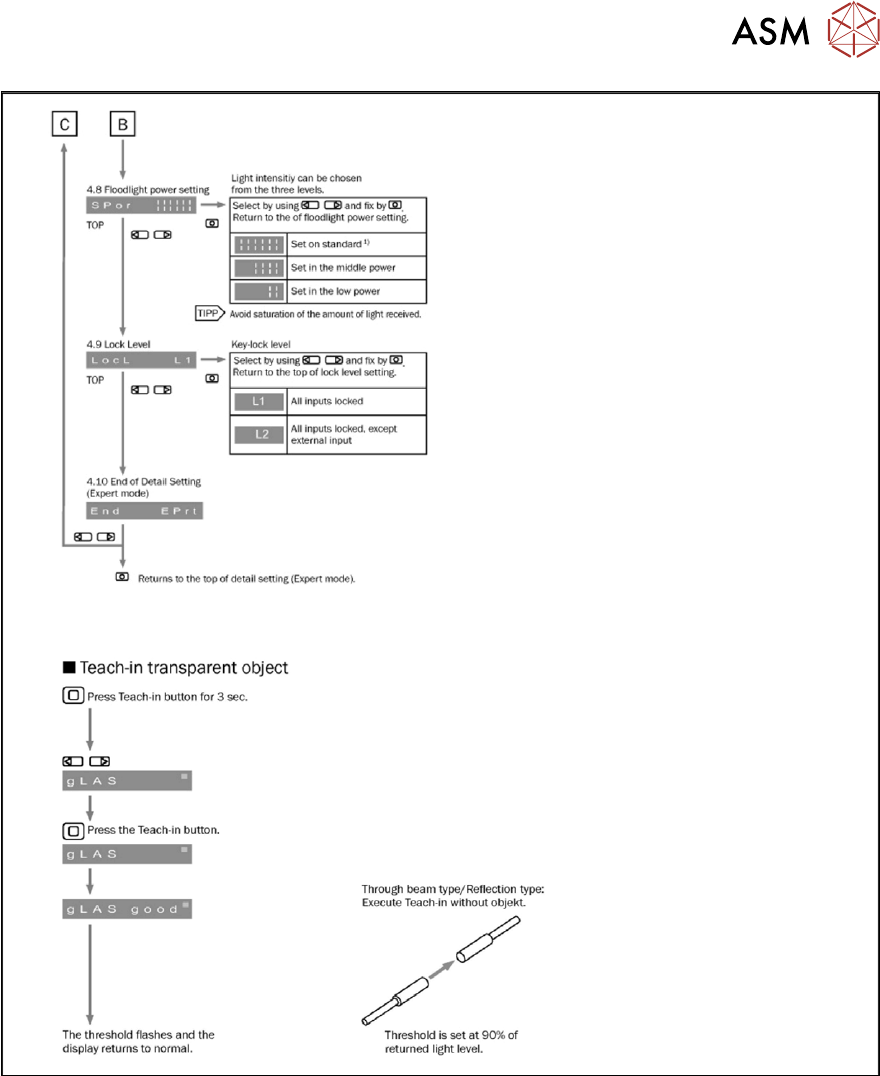

Fig.313: Setting the fiber optic sensor - 3
7 Conveyor
7.8 Laser light barriers, fiber optic cable and PCB sensors
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 239
Fig.314: Setting the fiber optic sensor - 4
