7 Conveyor 7.9 Boards 244 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 Fig.322: 03087641-02
7 Conveyor
7.9 Boards
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 243
Fig.321: 03087640-02

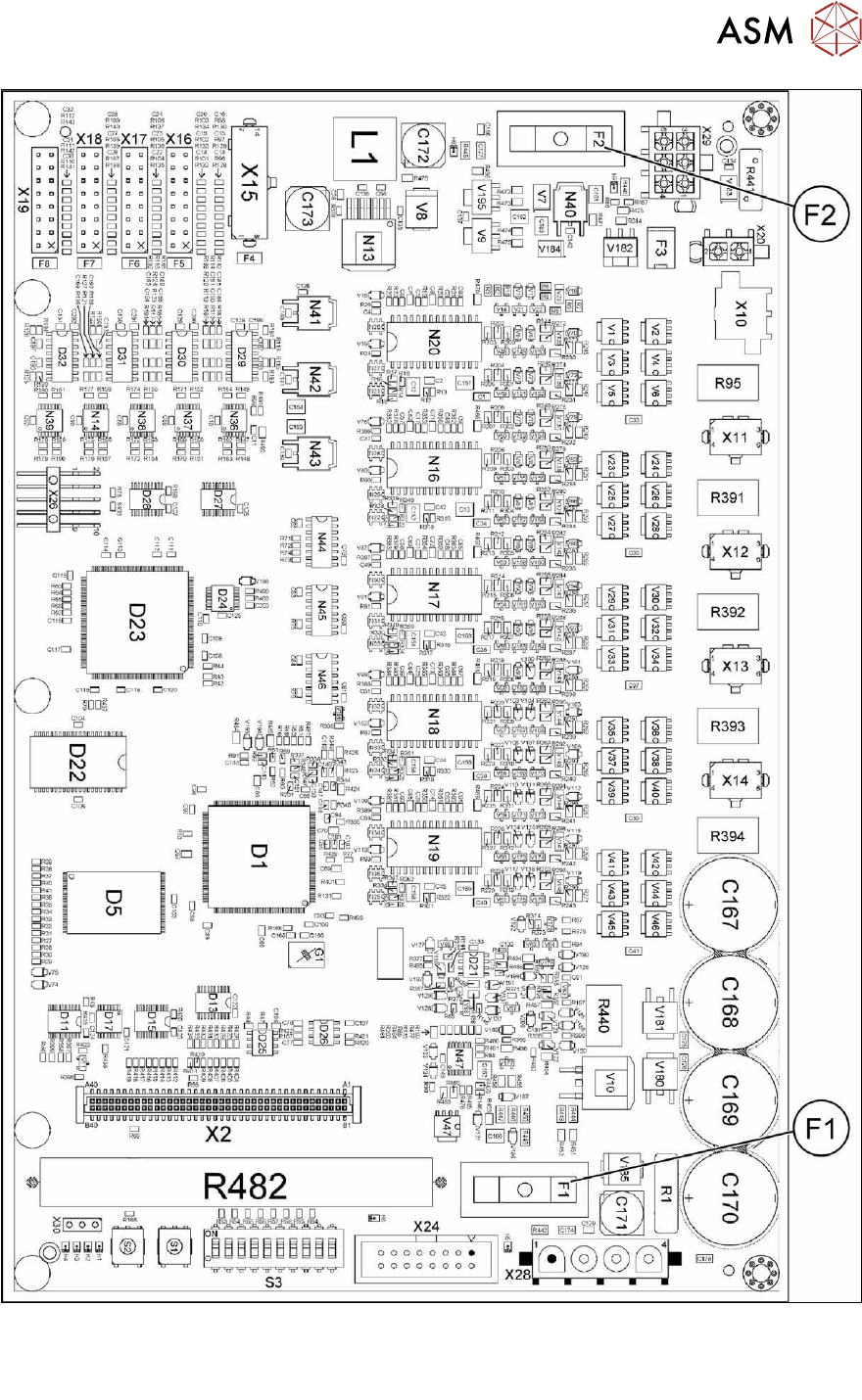

Spare fuses:
●
F1: Fuse T5A 1500A 5x20mm SPT series (0001.2511 Schurter)
●
F2: Fuse T2A 5x20mm (0034.3120 Schurter / 0239 002 XP Littelfuse)
7 Conveyor
7.9 Boards
244 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
Fig.322: 03087641-02
7 Conveyor
7.9 Boards
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 245
Fig.323: TSP420 machine plate SIPLACE X4 S
