Fig.331: Adjustment unit (example of SX1/SX2 shown)

1. Adjustment unit

2. Spacer piece (here:lifting table fixture)

3. Frame

4. Toothed belt of width adjustment

► Place the toothed belt over the two up-

per idler pulleys so that the adjustment

units move exactly parallel to one an-

other. Check the parallelism as follows:

► Push the adjustment units by hand out-

wards, to one side of the conveyor. In-

sert a spacer piece in each case. This

helps you to check the distance to the

frame more easily. Make sure that the

lifting table plate guides are only lying

against the adjustment unit base struc-

tures and not against the threads.

Fig.332: Spacer (example of SX1/SX2 shown)

1 View from the side 2 View from above

3 Spacer piece (here: metal platelet) 4 Adjustment unit

5 Frame 6 Warehouse

► Position the adjustment units so that these lie flush against the lifting table guides between the

frame and the adjustment unit.

7 Conveyor

7.10 Conveyor sides

Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 251

► Tighten the fastening screw of the movable idler pulley.

► Check the parallelism of the adjustment units again and correct again if necessary.

► If the conveyor side clamps have loosened, fix these again.

► Set the tension of the toothed belt.

7.5.3.1 "Setting the belt tension (width adjustment)" [}183]

► Calibrate the width adjustment motor.

(The calibration is identical for the lifting table motor.)

► Use the software to move the fixed conveyor side. This ensures that the fixed conveyor side is

parallel to the flexible sides. Readjust the fixed conveyor side to its original value after that.

7.10.3 Calibrating the Conveyor Rails

NOTICE

This chapter is valid for machines with dual conveyor (DC) only.

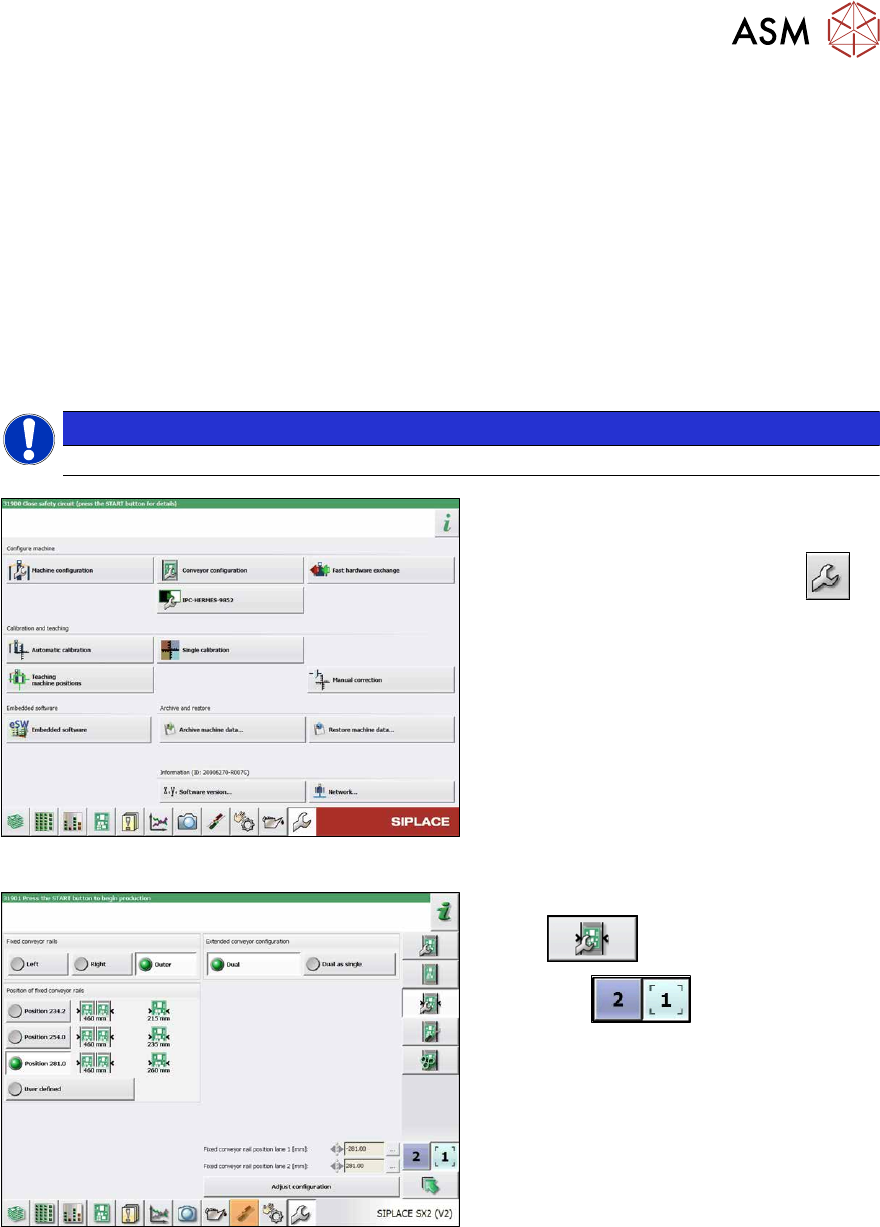

Fig.333: Service menu

► Switch over to the operator level Ma-

chine service.

► Switch over to the service menu .

► Select Conveyor configuration.

Fig.334: Setting the conveyor side

► Select Set options for conveyor fixed

rail .

► Use the button to select the

required conveyor lane.

► Set the conveyor position and confirm

with the Adjust configuration

button.

The fixed sides will later have their original

positions again.

7 Conveyor

7.11 Mapping

252 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021

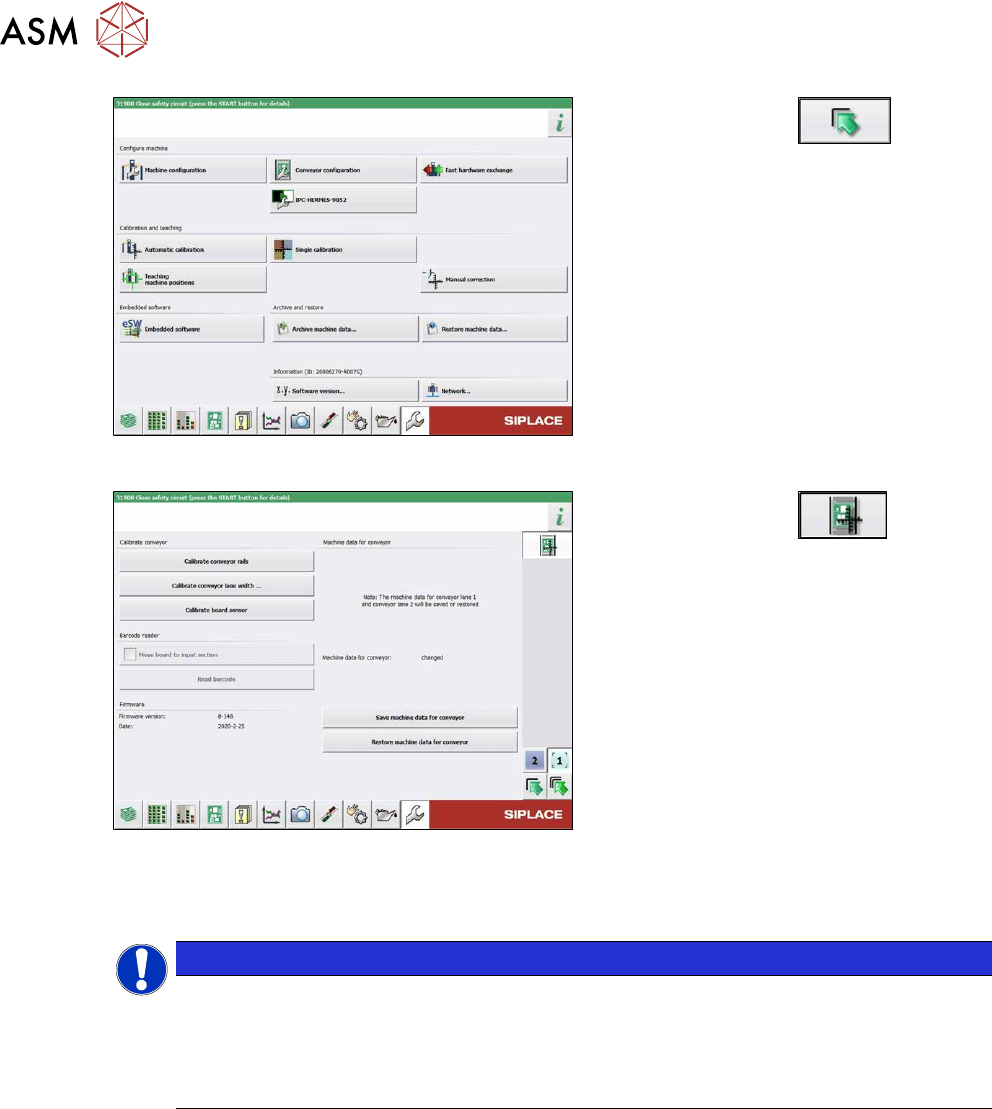

Fig.335: Service menu

► Click on this button .

► Select Single calibration.

Fig.336: Calibrating the conveyor sides

► Click on this button .

► Select Calibrate conveyor sides.

7.10.4 Fixed Side Right/Left

NOTICE

No conversion possible

The SIPLACE X-Series S single conveyor is available in the variants "fixed side right" and

"fixed side left".

Conversion from a fixed side right to a fixed side left or vice versa is not possible. In this

case, the conveyor must be replaced by your SIPLACE service team.

7.11 Mapping

For information about mapping, refer to the technical information "Overview of all mapping plates

and allocation to the machines" [DE:TI2017‑10D04] [EN:TI2017‑10E04].
