8 Head exchange 8.10 Calibration Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 281 Fig.377: Calibration (combined steps) Fig.378: Calibration (all steps) You can choose between Combined steps and All steps . T…
8 Head exchange
8.10 Calibration
280 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
► Head and cameras
– Pressure control valve (SIPLACE C&P20P)
– Camera coefficient (unit nm/pixel), angle
– Head offset (offset PCB camera to component camera)
– Segment offset II (bottom)
– Segment offset I (top)
► Calibrating the nozzle changer
– Calibrating the pickup position for all magazines
– Calibrating the pickup height
– Calibrating the reject position
► Board mapping
► Head mapping
► Calibrating the lifting table
► Pin picker, calibrating the offset
► Calibrating the pin magazine
► Calibrating the feed unit
8.10.2 Calibrating the heads and cameras (from SW7xx)

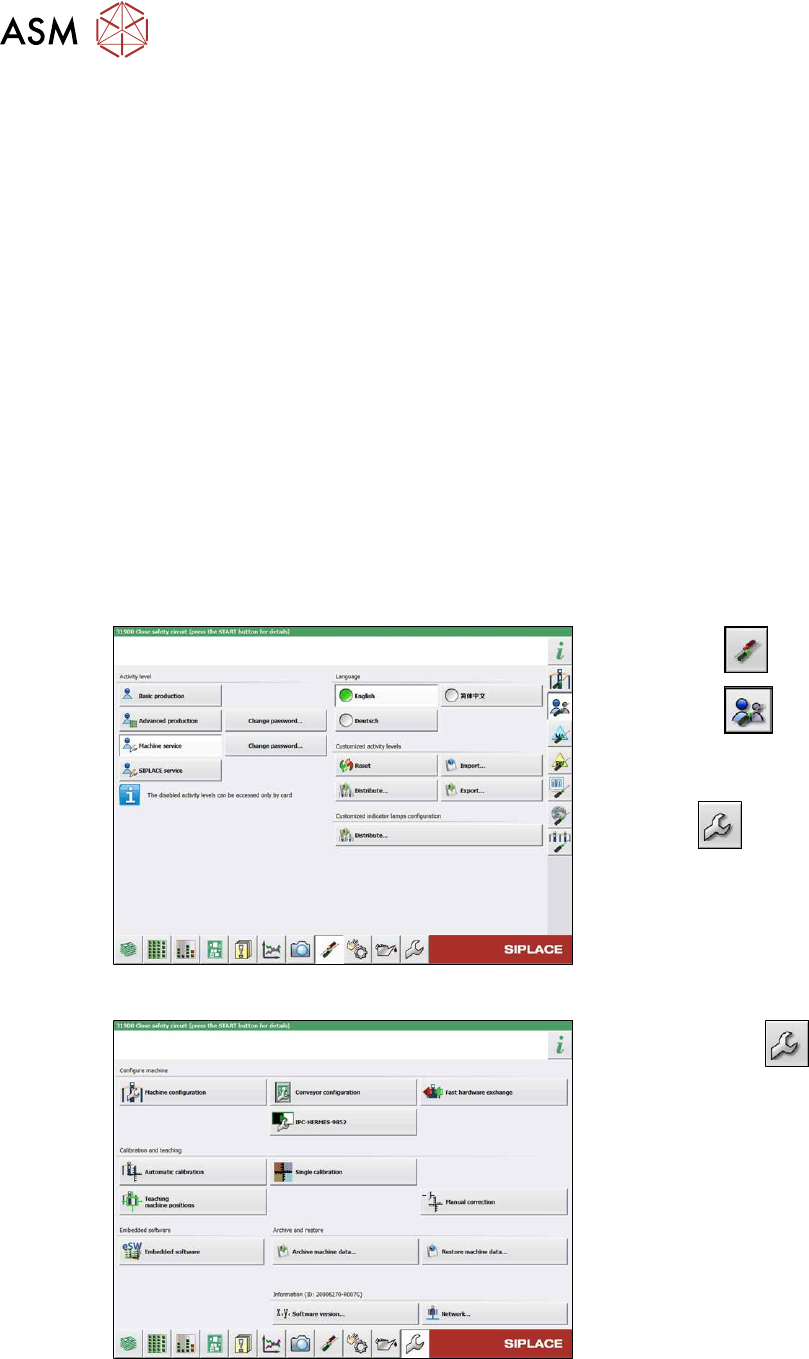

Fig.375: Select operator level
► Select the button.
► Select the button.
► Switch over to the operator level
Machine service
.
ð The button will be shown.
Fig.376: Service menu
► Use the button to switch to the
Service menu.
► Click the Automatic calibration but-
ton.
8 Head exchange
8.10 Calibration
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 281

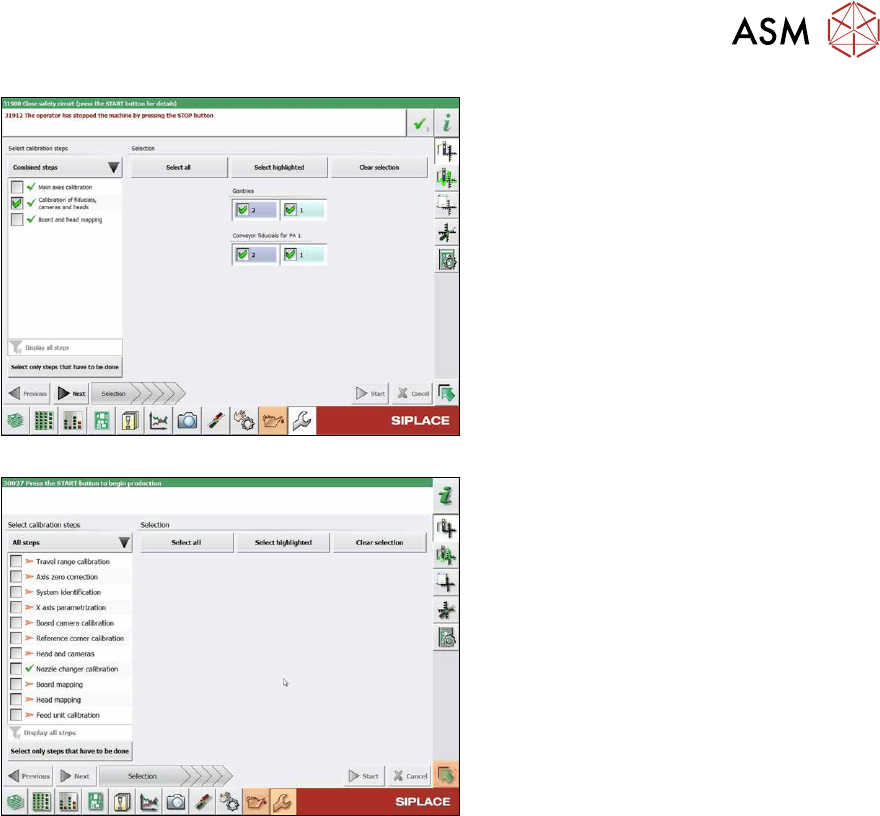

Fig.377: Calibration (combined steps)
Fig.378: Calibration (all steps)
You can choose between Combined steps
and All steps.
The procedure for All steps is described
below.
► Go to Select calibration steps and se-
lect All steps
.
► Choose Heads and cameras.
► On the next page, select the gantries
on which the heads to be calibrated are
located and then click on the Next
but-
ton.
Follow the instructions on the next pages:
► The next step is to check the calibration
conditions (nozzle, calibration tool etc.).
Follow the instructions provided.
After this step, the calibration will begin. All
required intermediate steps (head height
etc.) will be performed automatically.
