9 Component feeding
9.1 Cutter
302 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
Final work

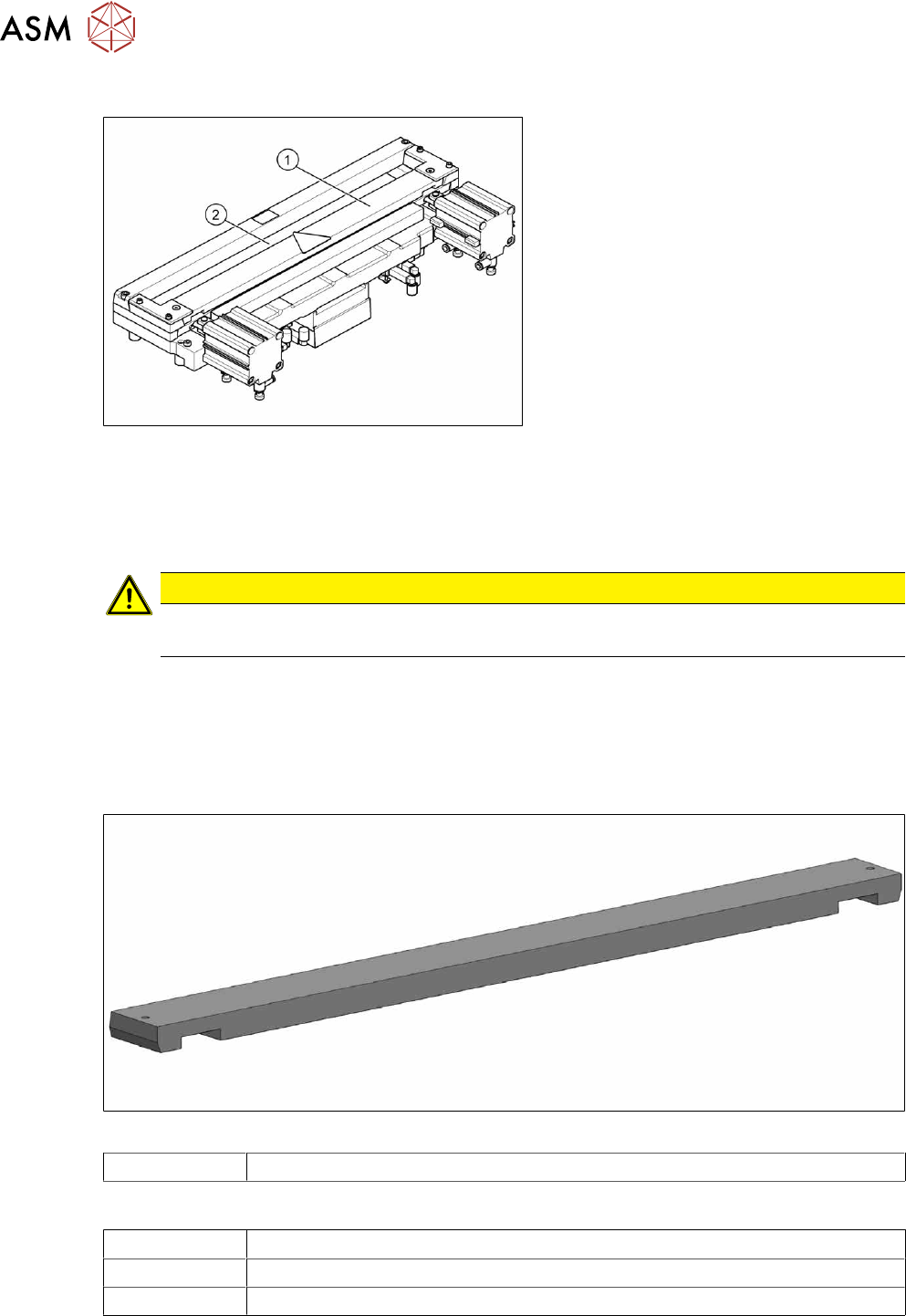

Fig.416: Cutter (using example of X-Series)
► Use a feeler gauge to check the gap
between the wiper (1)
and the move-
able blade (2)
, along the entire length
and width of the blade.
ð The 0.05 mm feeler gauge should fit
through the gap.
ð The 0.25 mm feeler gauge should
not fit through the gap.
If the gap is not correct, check:
●
Whether the wrong downholder has
been installed (with function level < 03).
●
The downholders are those designed
for cutters with function status -04 (=
with wiper)!
●
Whether the blades, wiper etc. were
cleaned before installation.
If the gap is correct:
► Fit the baffle plate and cover plate. Make sure that the edges are parallel.
CAUTION
Check how the cables are run!
Make sure that the cables and hoses are not pinched or subjected to excess strain.
► Remove the clamps from the cutter/remove the cutter from the assembly plate.
Further installation is performed by following the above instructions in the reverse order.
9.1.11 Replacing the wiper
Parts
Fig.417: Wiper
03000491‑xx Wiper (cutter HF)
Equipment and tools
00353832-xx Allen key set
Wire cutters
Cable tie
9 Component feeding
9.1 Cutter
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 303
Overview
Fig.418: Wiper on cutter
1. Wiper
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the cutter from the machine.
9.1.4 "Replacing the Cutter on the COT Insert [03066690-xx]" [}285]
Fig.419: Cover plate
► Remove the screws(2) fastening the
top cover plate(1)
and then remove the
top cover plate.
Fig.420: Removing the wiper
► Remove the two screws(1) fixing the
wiper(2)
.
► Remove the wiper(2).
The notch(3)
in the wiper will move
over the articulated joint(4)
on the
short-stroke cylinder.
Installation
Follow the removal instructions in reverse order for installation.
9 Component feeding
9.1 Cutter
304 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
9.1.12 Replacing Wiper Clip
Parts
Fig.421: Wiper left and right
03000506‑xx Wiper clip left (SIPLACE HF)
03000505‑xx Wiper clip, right (cutter HF)
Equipment and tools
00353832-xx Allen key set
Wire cutters
Cable tie
Overview
Fig.422: Wiper clips on cutter
1. Wiper clips
