9 Component feeding
9.1 Cutter
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 305
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the cutter from the machine.
9.1.4 "Replacing the Cutter on the COT Insert [03066690-xx]" [}285]
► Remove the wiper.
9.1.11
"Replacing the wiper" [}302]
Fig.423: Removing the wiper clips
► Remove the two screws(1) (left and
right) and remove the wiper clips(2)
.
Installation
Fig.424: Installing the wiper clips
► Install the new wiper clips(2) on both
sides and loosely put the screws(1)
back in.
► Align the wiper clips to the edges of the
cutter frame(3)
and to the cutter top
blade(4)
.
► Tighten the screws(1) fixing the wiper
clips.
Follow the removal instructions in reverse order for further installation.
9 Component feeding
9.1 Cutter
306 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
9.1.13 Replacing the cutter cable
Parts
03063590-xx Cutter cable X-Series
Equipment and tools
00353832-xx Allen key set
Wire cutters
Cable tie
Overview

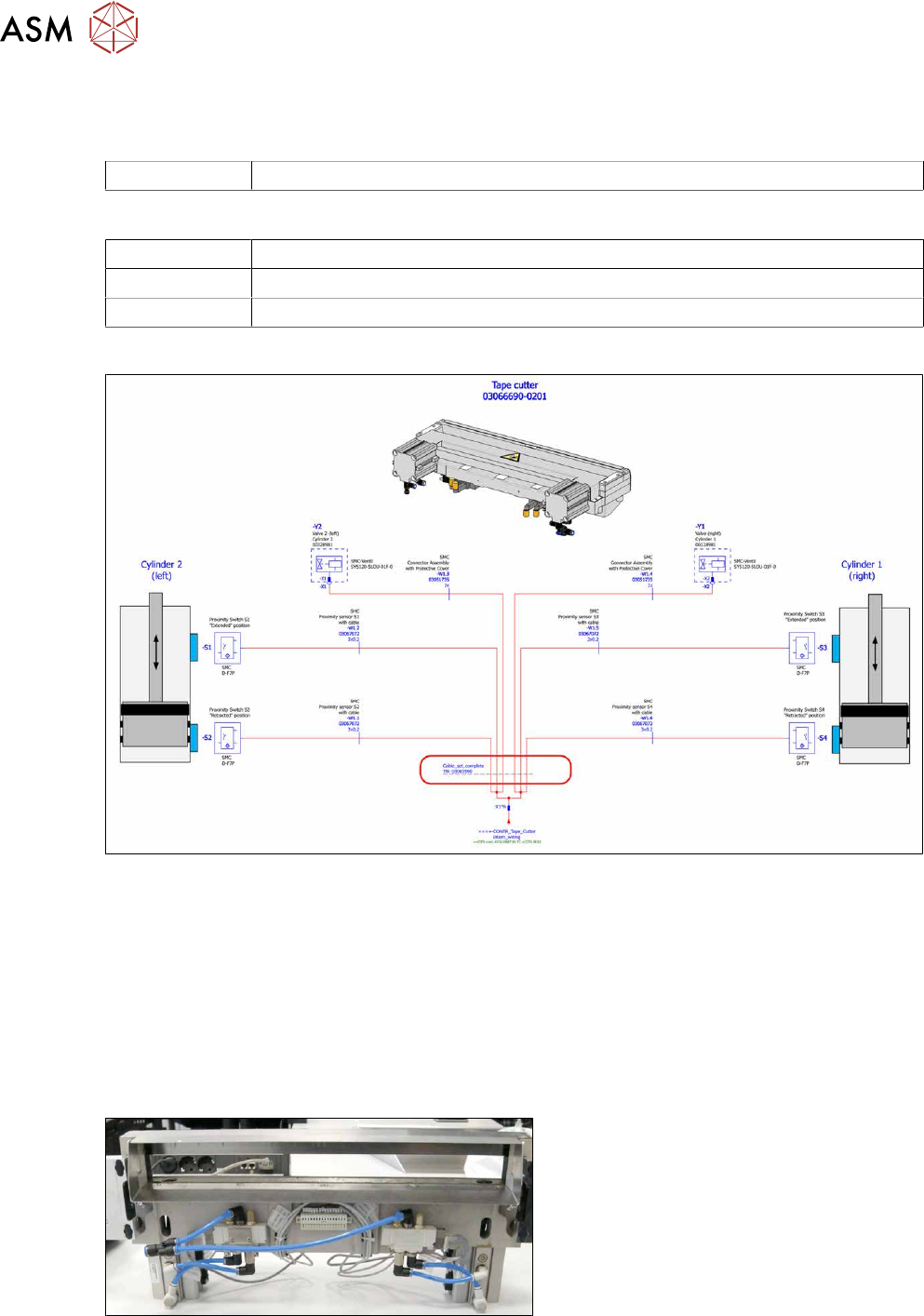

Fig.425: Electrical connections
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Switch off the compressed air supply
5.2 "Disabling the compressed air supply" [}86]
► Vent the cutter. It must be totally depressurized.
9.1.2 "Venting compressed air at the cutter" [}284]
Fig.426: Cutter cable
► Disconnect all sensors and plugs and
remove the cable set completely.
Mark the position of old sensors, espe-
cially the sensors responsible for posi-
tioning the short-stroke cylinders.
9 Component feeding
9.1 Cutter
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 307
Installation
► Fit the new cable set and adjust the sensors to the correct position.
Follow the removal instructions in reverse order for further installation.
► Attach cables ties if necessary (strain relief).
9.1.14 Replacing the throttle valve
Parts

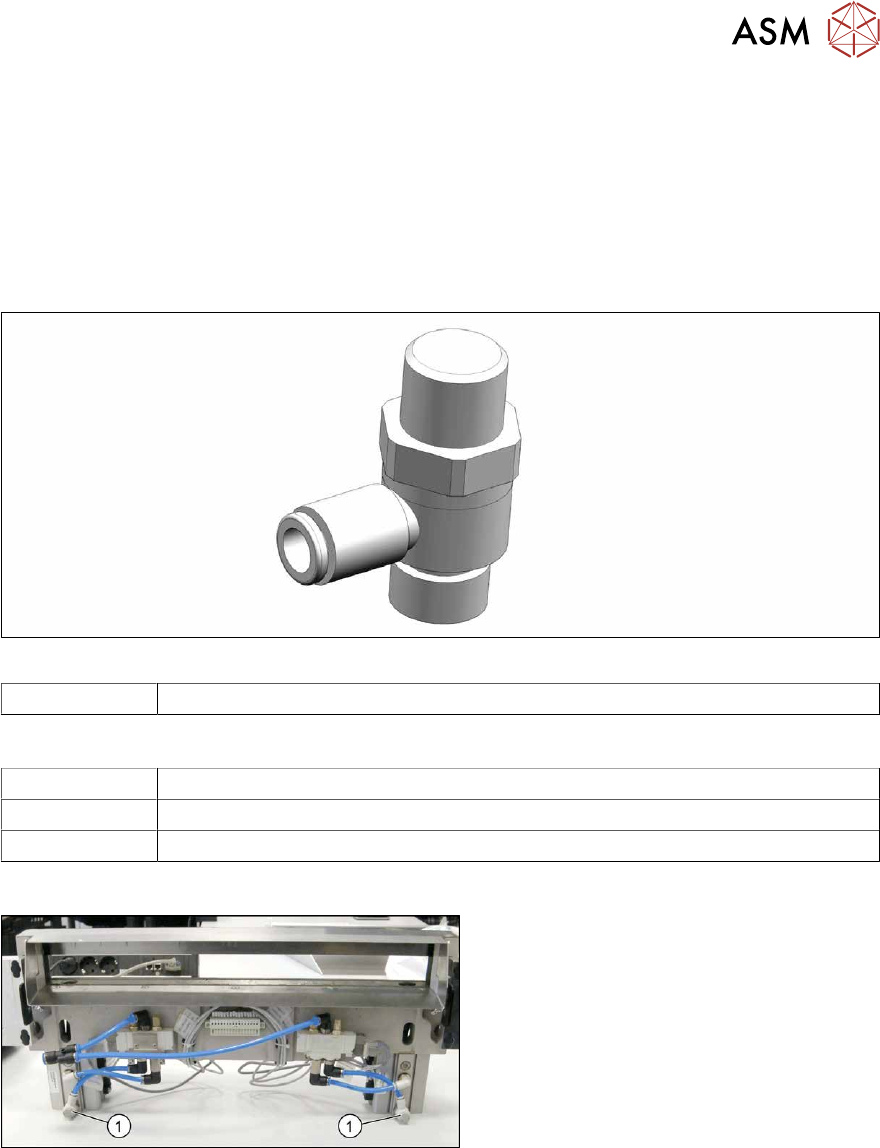

Fig.427: Throttle valve
03000600‑xx Throttle valve AS2201F-02-06SA
Equipment and tools
00096290-xx Fork wrench set
Wire cutters
Cable tie
Overview
Fig.428: Throttle valves on cutter
1. Throttle valves
The throttle valves are installed at the lower
sides of the short-stroke cylinders.
