9 Component feeding
9.1 Cutter
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 309

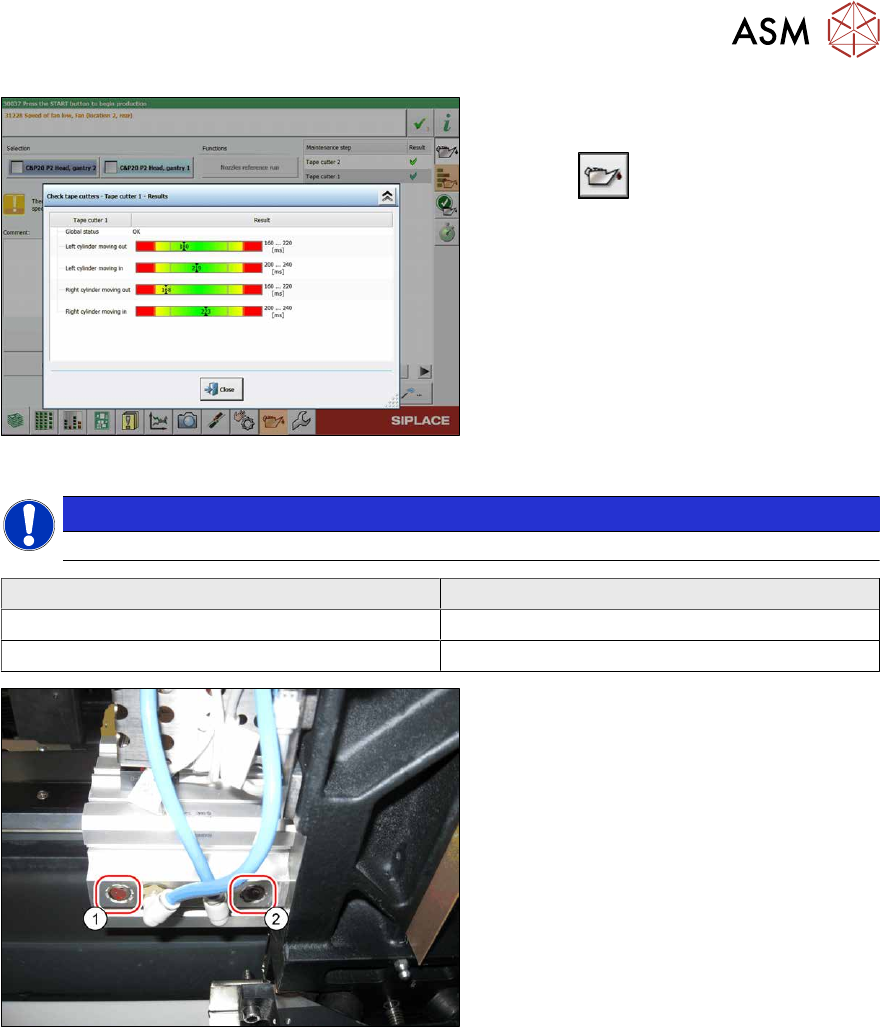

Fig.431: Measuring times
To test all cutters, you can switch over to the
maintenance menu:
► Select .
► Select Check tape cutter.
► Mark the relevant line to see the time in
the details.
NOTICE
The permitted measurement ranges will be provided by the software.
Cutter Time
Moving the blade out 175 to 200 ms
Moving the blade in 200 to 250 ms
Fig.432: Restrictor valves
► If necessary: change the time by ad-
justing the restrictor valves at the short-
stroke cylinders.
1. Infeed restrictor
2. Outfeed restrictor
See also
2 9.1.9 "Replacing the short-stroke cylinder" [}295]
9 Component feeding
9.1 Cutter
310 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021

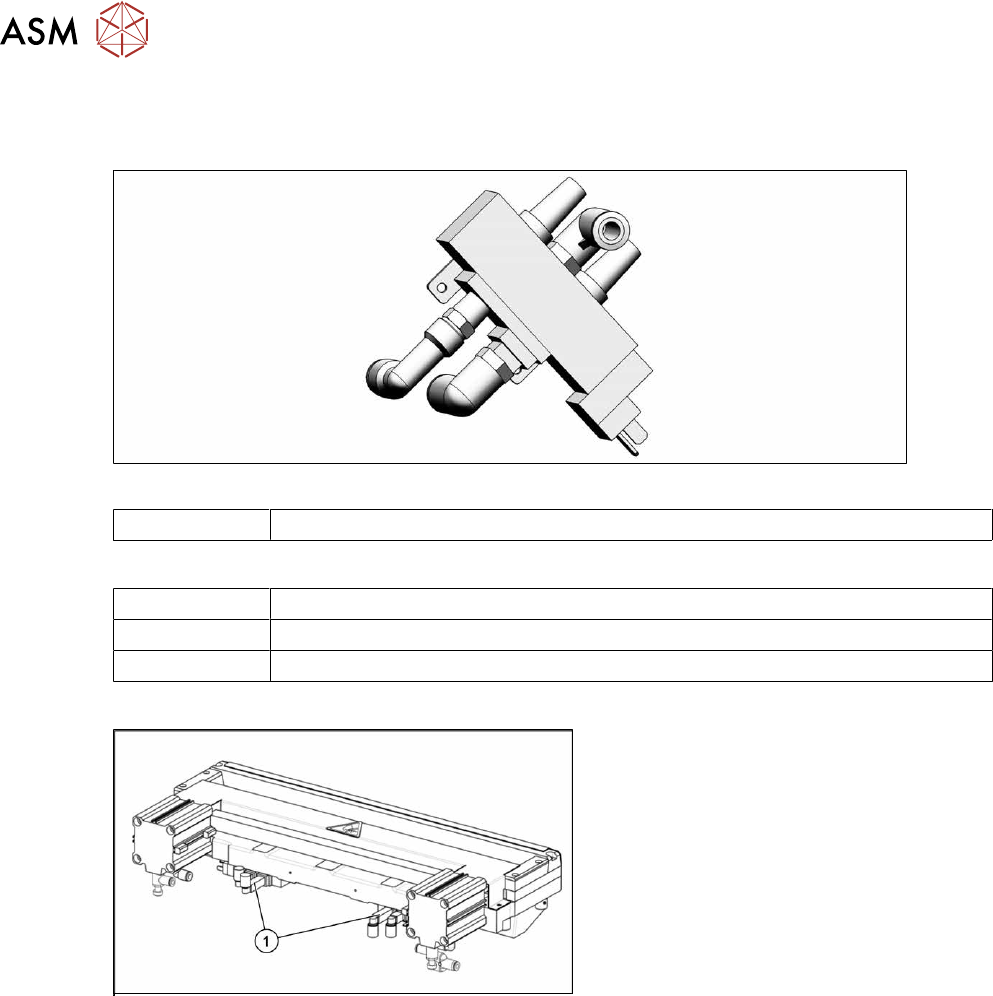

9.1.15 Replacing the solenoid valves
Parts
Fig.433: Solenoid valve
03000630-xx Solenoid valve
Equipment and tools
00353832-xx Allen key set
Wire cutters
Cable tie
Overview
Fig.434: Cutter
1. Position of the solenoid valves
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Switch off the compressed air supply
5.2 "Disabling the compressed air supply" [}86]
► Vent the cutter. It must be totally depressurized.
9.1.2 "Venting compressed air at the cutter" [}284]
► Loosen the compressed air connections on the solenoid valve.
► Unplug the press-fit connection on the solenoid valve connection cable. Mark the position to
make clear assignment easier later on.
► Remove the screws holding the solenoid valve in place and remove the solenoid valve.
Installation
► Mount the new solenoid valve and reestablish the press-fit connection to the valve.
► Plug in the compressed air connections.
► Attach cables ties if necessary (strain relief).
9 Component feeding
9.1 Cutter
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 311

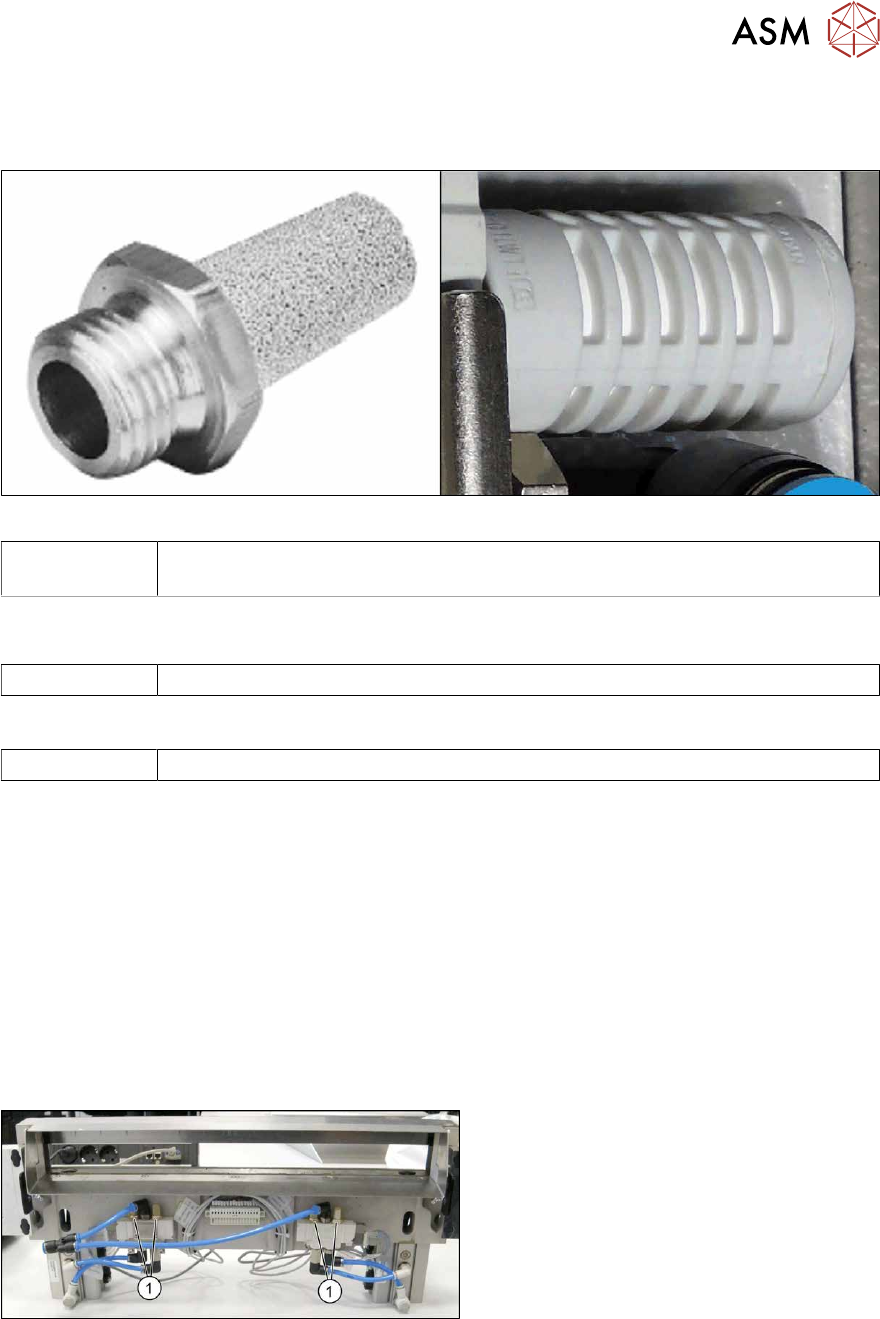

9.1.16 Replacing the silencer
Parts
Fig.435: Silencer version 1 and 2
03122731‑xx Silencer R1/8 40dB (version2)
(replaces version 1 [00317044‑xx])
If a silencer version 1 is replaced with a version 2 silencer, you will also need to use this push-in fit-
ting:
00320172-xx Push-in L-fitting QSL-1/8-6
Equipment and tools
00096290-xx Fork wrench set
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Switch off the compressed air supply
5.2 "Disabling the compressed air supply" [}86]
► Vent the cutter. It must be totally depressurized.
9.1.2 "Venting compressed air at the cutter" [}284]
► Try to perform the exchange on the installed cutter.
If access is too limited, remove the cutter from the machine.
9.1.4 "Replacing the Cutter on the COT Insert [03066690-xx]" [}285]
Fig.436: Silencer on cutter
► Remove the silencer(1) (SW13).
