9 Component feeding 9.2 COT insert 326 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 9.2.11 Replacing the infeed control Parts, equipment and tools Fig.457: Feed control 1. Infeed control assembly SX4 [03082077…
9 Component feeding
9.2 COT insert
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 325
Installation
► Installation is performed by following the above instructions in the reverse order. Also observe
the following instructions:
– Refit the empty tape duct insert on the empty tape duct if you are not using any compon-
ents >15mm.
Fig.456: Empty tape duct
CAUTION
The empty tape duct insert fits somewhat tightly in the empty tape duct
These can damage the coating in the empty tape duct, which can then lead to component
tapes getting jammed at the edges. This could then cause a head crash.
► Never use sharp-edged objects to position the empty tape duct insert.
► If necessary, use a wooden wedge or, as shown in the diagram, a brush with wooden
handle.
9 Component feeding
9.2 COT insert
326 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
9.2.11 Replacing the infeed control
Parts, equipment and tools

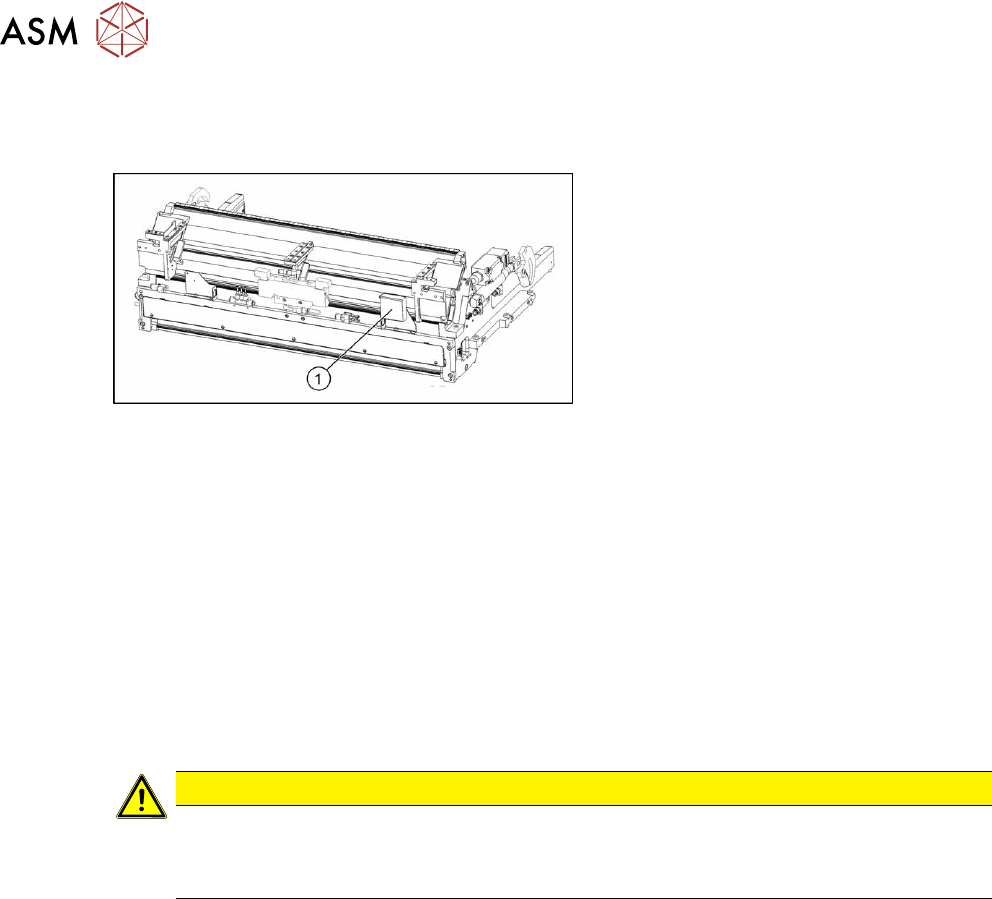

Fig.457: Feed control
1. Infeed control assembly SX4
[03082077-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Dismantle the nozzle changer over the feed control.
2.8.3 "Replacing the Nozzle Changer" [}40]
► To gain better access, you may need to disconnect the COT insert and pull it slightly out of
the machine. Observe the instructions in section 9.2.2
"Installation Positions of COT Insert and
Manual Table (Table Positions)" [}313].
You can improve access by removing the upper section of the stationary camera, if present.
2.7 "Stationary component camera" [}33]
CAUTION
Component camera
► The component camera mirror has sharp edges.
► Take care not to damage the component camera.
► Unplug all electrical connections to the insert control. You may want to mark the positions of
these connections to make clear assignment easier later on.
► Remove the screws fastening the infeed control and remove the insert control from the
machine.
Installation
Follow the removal instructions in reverse order for installation.
9 Component feeding
9.2 COT insert
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 327
9.2.12 Replacing the Reject Bin Sensors
Parts, equipment and tools
●
Reject bin query X-Series S [03089087-xx]
Overview
Fig.458: Sensors on standard COT insert
A) View from above
B) View from back
1. Connector for additional sensors
2. Connector for sensors (3) and (4)
3. Sensor for reject channel C&P20P
4. Sensor for reject bin (nozzles and com-
ponents CPP)
Fig.459: Sensors on COT insert with SPS
1. Sensor component reject bin (Twin and
CPP with stationary camera)
2. Sensor for reject channel C&P20 P
3. Sensor for reject bin (nozzles and com-
ponents CPP)
Fig.460: Sensors on COT insert with JTF
1. 2x sensors
Reject bin (Twin Head and CPP with
stationary camera)
Reject bin (nozzles)
2. Sensor for reject channel C&P20 P
