9 Component feeding
9.4 Docking Station for Component Trolley
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 339

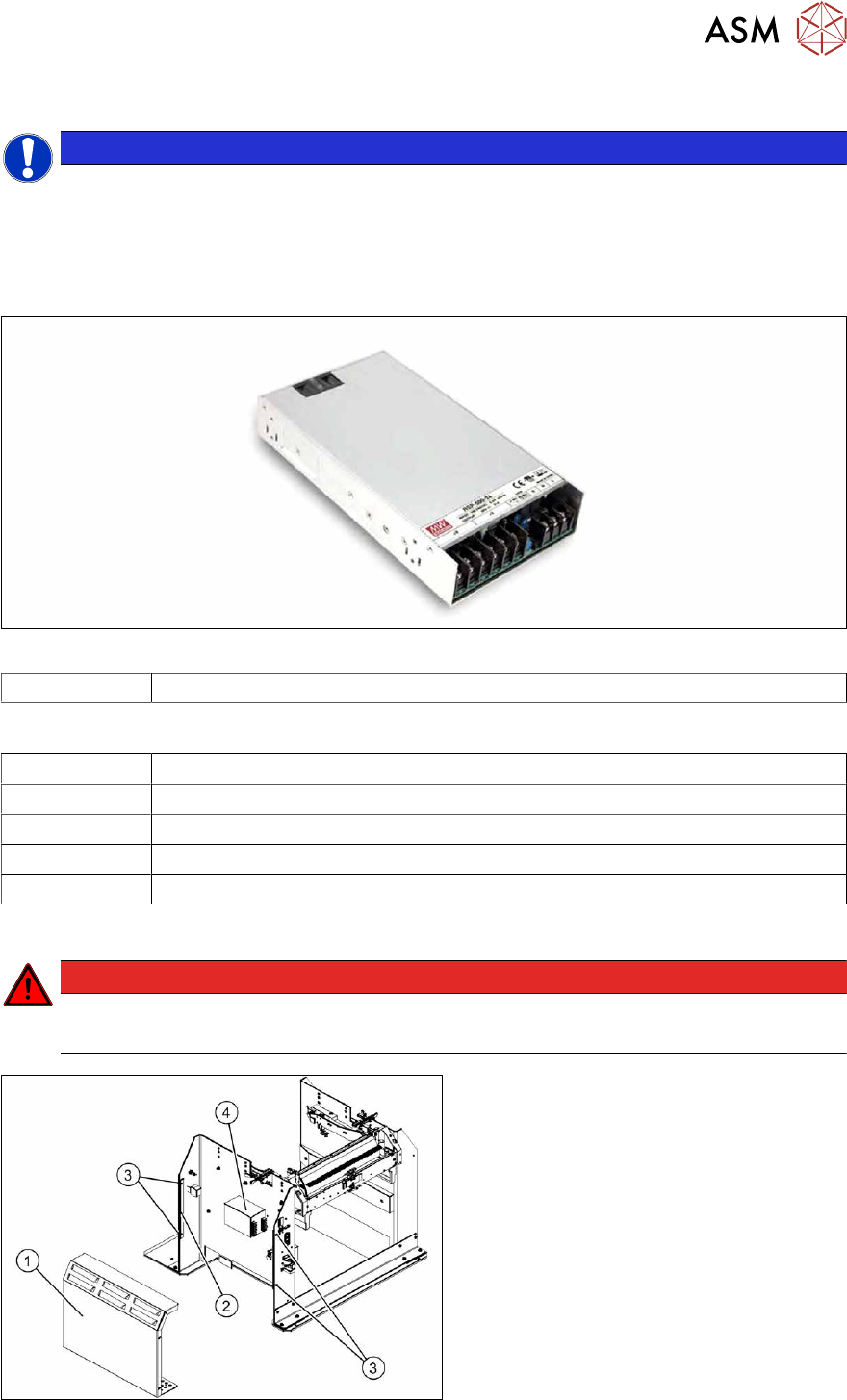

9.4.2 Replacing the power pack
NOTICE
Observing the technical information
► Observe the technical information "Power pack for docking station for component trol-
ley SIPLACE X [116933] and SX [116965] has been discontinued" [DE:
TI2015-04D07] [EN: TI2015-04E07].
Parts
Fig.477: Switching power supply RSP-500-27 [03121806‑xx]
03121806‑xx Switching power supply RSP-500-27 (replaces: [03025938‑xx])
Equipment and tools
00353832-xx Allen key set
Wire cutters
Cable tie
Voltage measuring device
Circuit diagram folder for your machine
Removal/installation
DANGER
Switch off the voltage supply
► Press the ON/OFF button to switch off and disconnect the power supply.
Fig.478: Removing the cover
The power pack(4) is located behind the
cover(1)
.
► Remove the four screws(3) fastening
the cover. The cover is clamped in
place with the help of the bar(2)
.
► Pull the cover out of the docking sta-
tion.
Pay attention to the ground connection.

9 Component feeding
9.4 Docking Station for Component Trolley
340 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
Fig.479: Removing the power pack
► Disconnect all electrical connections(4)
to the power pack(3). You may want to
mark their positions to make clear as-
signment easier later on.
► Remove the four screws(2) fastening
the power pack and then remove the
power pack.
► Connect all cables and fit the new
power pack.
► Press the ON/OFF button(1) to switch
on.
► Set the output voltage of the power pack at terminals nine and twelve:
– Standard (without BulkFeeder):
26.8 V (+/- 0.5 V)
– When using the BulkFeeders the output voltage is set permanently to 28.0V(+/‑0.5V).
► Refit the cover.
9.4.3 Replacing the micro switch
Parts
03033387‑xx Microfuse
Overview
1
Fig.480: Microfuse on docking station
1. Position of microfuse (T 8.0 A)

9 Component feeding
9.4 Docking Station for Component Trolley
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 341
Replacing the microfuse
1
3
2
Fig.481: Replacing the microfuse
1. Cover on the microfuse (T8.0A)
2. ON / OFF switch
3. Power supply plug
DANGER!
Switch off the voltage supply
Press the ON/OFF button (2) to switch
off and then unplug the power supply
(3).
.
► Open the cover (1) on the microfuse.
► Remove the microfuse.
► Insert the new microfuse and close the cover (1).
► Connect the connection cable (3) and press the ON/OFF button to switch on (2).
9.4.4 Replacing the locking unit short-stroke cylinder
Parts
Fig.482: Short-stroke cylinder
03034831-xx Short-stroke cylinder
Equipment and tools
00353832-xx Allen key set
Lint-free cloth
Unisilikon
