2 Basic Machine
2.8 Nozzle Changers and Reject Boxes
36 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
2.8 Nozzle Changers and Reject Boxes
See also
2 9.2 "COT insert" [}312]

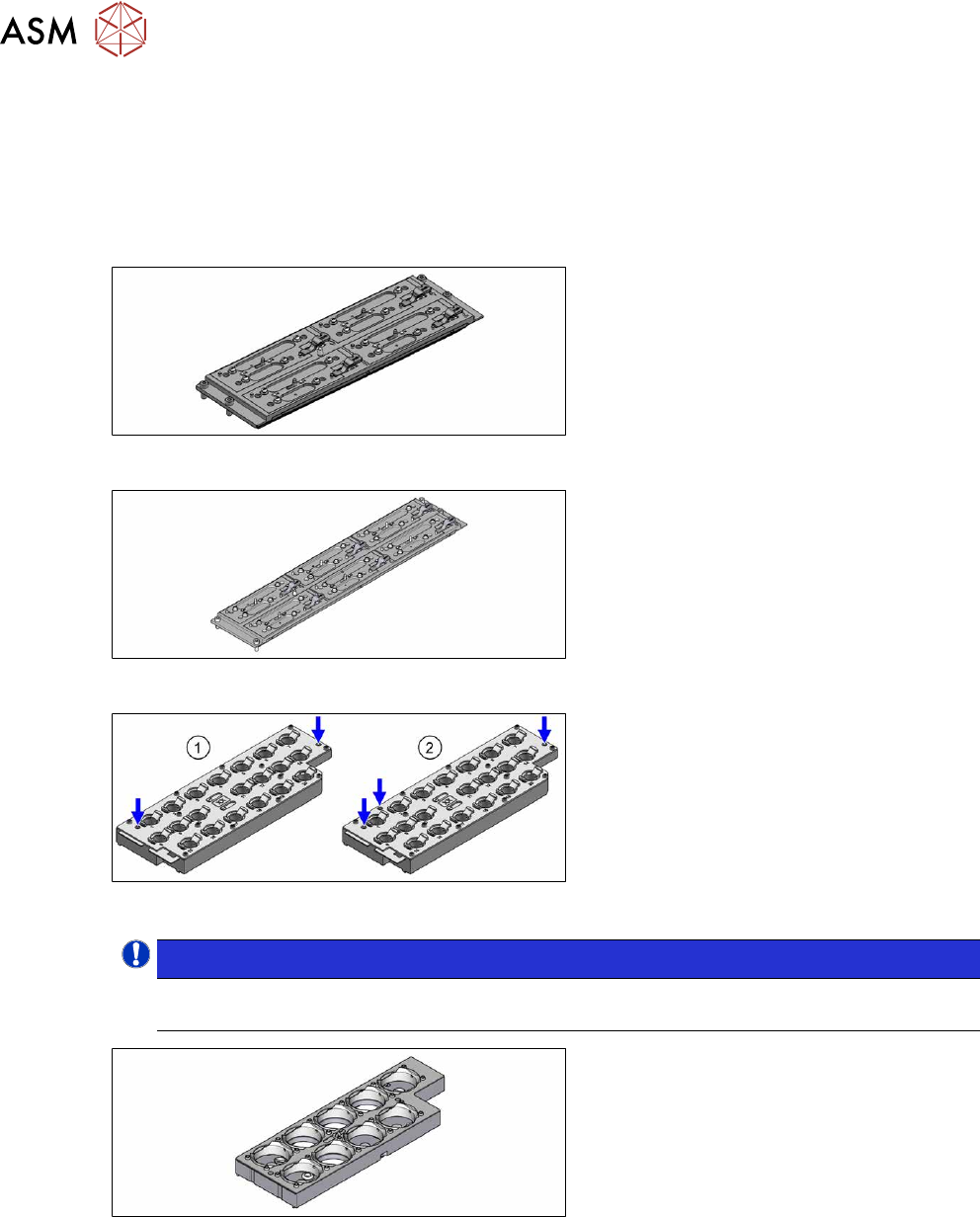

2.8.1 Nozzle Changers and Nozzle Stations - Overview
Fig.25: Nozzle changer CPx short [03147925‑xx]
Nozzle changer basic structure (short
design) for all CPx placement heads
Fig.26: Nozzle changer, long [03147324‑xx]
Standard nozzle changer, long
[03147324‑xx] for six magazines
Fig.27: 20xx magazine with two and three fiducials
Magazine for 20 nozzles of 20 xx series
●
Magazine with two fiducials
[03135469‑xx]
●
Magazine with three fiducials
[03226630‑xx]
NOTICE!
From SW713.1 the magazine will need to be recalibrated using three fiducials when changing
the magazine. This step will no longer be necessary from SW714.
.
Fig.28: Magazine 28xx [03065782-xx]
Magazine for nozzles of 28 xx series
2 Basic Machine
2.8 Nozzle Changers and Reject Boxes
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 37

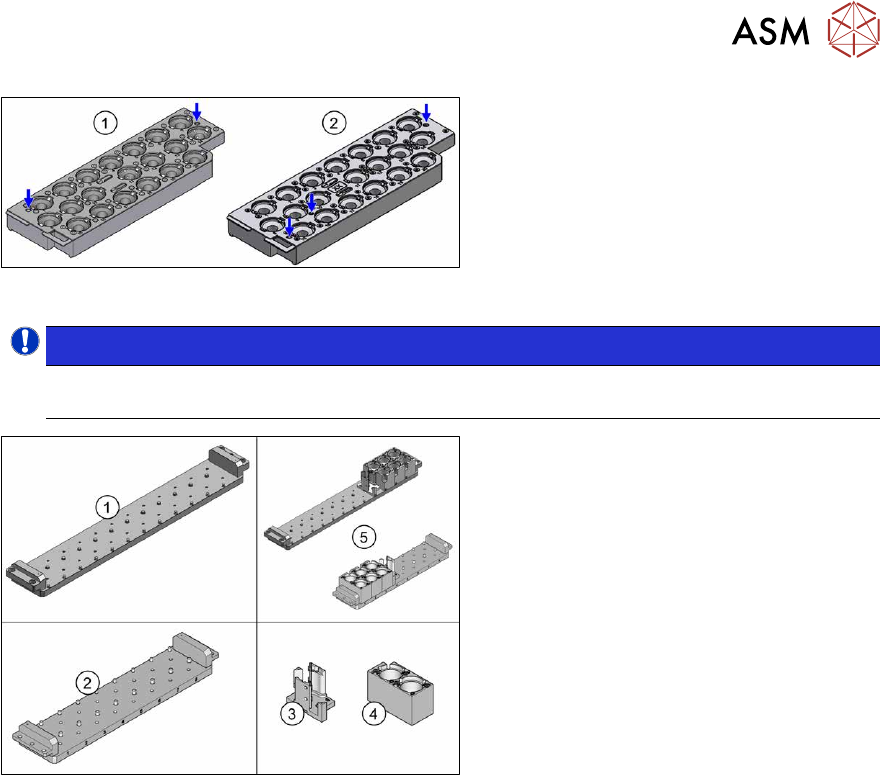

Fig.29: 40xx/60xx magazine – with two and three fiducials
Magazine for nozzles of 40 xx/60 xx series
1. Magazine with two fiducials
[03101503‑xx]
2. Magazine with three fiducials
[03218226‑xx]
NOTICE!
From SW713.1 the magazine will need to be recalibrated using three fiducials when changing
the magazine. This step will no longer be necessary from SW714.
.
Fig.30: Nozzle changer TwinStar
1. Nozzle changer TwinStar (long)
[03003138‑xx]
2. Nozzle changer TwinStar (short)
[03062452‑xx]
(for SIPLACE X4iS)
3. Magazine for 1 nozzle [03001807-xx]
4. Magazine for 2 nozzles [03005191-xx]
5. Nozzle changer in standard configura-
tion
1x magazine for 1 nozzle
3x magazine for 2 nozzles
2 Basic Machine
2.8 Nozzle Changers and Reject Boxes
38 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
2.8.2 Reject bin and sensors - overview
For more information, refer to the circuit diagrams folder for your machine.
●
Detailed circuit diagrams folder for SIPLACE X-Series S (from Hxxxx) [DE+EN:00197920‑03]
●
Detailed circuit diagrams folder for SIPLACE X-Series S (from H1440) [DE EN: 00197920-04]
●
Detailed circuit diagrams folder for SIPLACE X-Series S (from H2500) [DE EN: 00198730-xx]
Fig.31: Sensors for reject bin SIPLACE X-Series S
Fig.32: Sensors for reject bin SIPLACE X-Series S
