9 Component feeding
9.6 Smart Pin Support
372 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
9.6.13 Replacing the bottom sensor
Parts, equipment and tools
●
Inductive sensor assembly, bottom SPS [03090192Sxx]
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
Overview

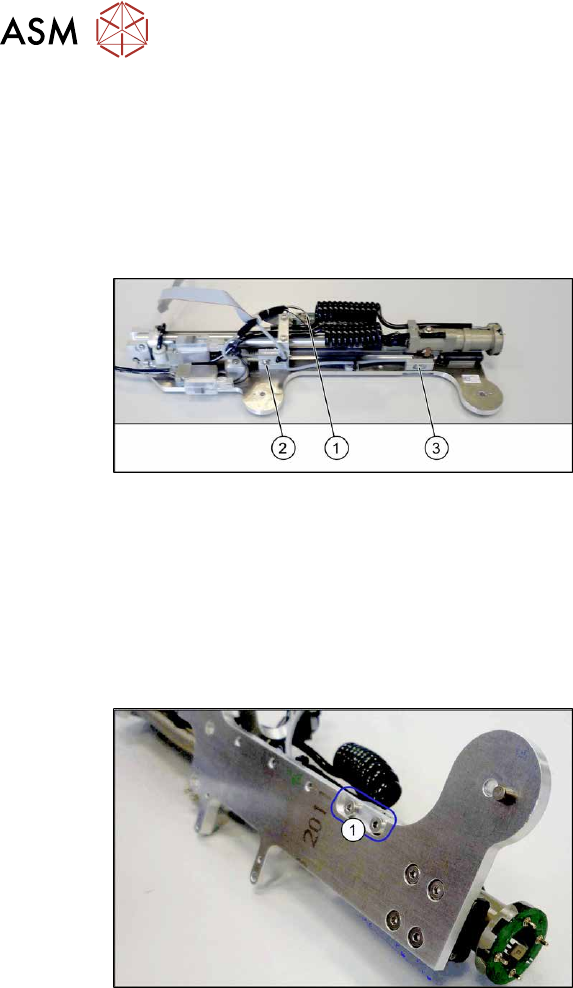

Fig.534: Sensors
1. Control board
2. Fastening screw for top sensor
3. Fastening screw for bottom sensor
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the Pin Picker.
9.6.1 "Replacing the Pin Picker Assembly" [}357]
Fig.535: Screws fastening the sensor mount
► Remove the two screws(1) fastening
the sensor mount.
► Remove the screws holding the sensor.
► Unthread the sensor cable as far as the board. Open the corresponding cable ties to help you,
if needed.
► Unplug the sensor cable from the board. You may want to mark the position to make clear as-
signment easier later on.
Installation
Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
► Fasten the sensor in the center of the slot.
► Check that the sensors switch properly.
The switch tag of the linear guide must have between 0.7 and 1.4 mm space to the sensor
above or below.
The bottom sensor must switch after 112 mm when travelling downwards.
► Replace any opened cable ties.
9 Component feeding
9.6 Smart Pin Support
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 373
9.6.14 Replacing the one-way restrictor
Parts, equipment and tools
●
One-way restrictor AS1201F-M3-04 [03088646-xx]
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
Overview
Fig.536: One-way restrictor
1. One-way restrictor
CAUTION!
The one-way restrictor is preset. Do
not change this setting!
If the setting is changed, you will need
to replace the one-way restrictor.
.
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the Pin Picker.
9.6.1 "Replacing the Pin Picker Assembly" [}357]
Fig.537: Screws fastening the valve terminal
► Remove the two screws fastening the
(1)
valve terminal. These are on the
back of the Pin Picker.
► Pull the pneumatic hose off the one-way restrictor.
► Unscrew and remove the one-way restrictor from the valve terminal.
Installation
Follow the removal instructions in reverse order for installation.
9 Component feeding
9.6 Smart Pin Support
374 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
9.6.15 Replacing the solenoid valve
Parts, equipment and tools
●
3/2 way solenoid valve V114A [03085498-xx]
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
Overview

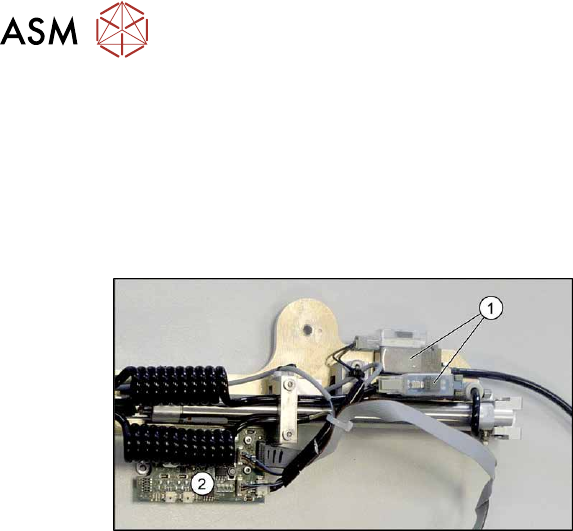

Fig.538: Solenoid valves and control board
1. Solenoid valves
2. Control board
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the Pin Picker.
9.6.1 "Replacing the Pin Picker Assembly" [}357]
► Unplug the electrical connection from the solenoid valve.
► Remove the screws fastening the top of the solenoid valve and remove the solenoid valve.
Installation
Follow the removal instructions in reverse order for installation.
