9 Component feeding 9.6 Smart Pin Support 374 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 9.6.15 Replacing the solenoid valve Parts, equipment and tools ● 3/2 way solenoid valve V114A [03085498-xx] ● Assembly …
9 Component feeding
9.6 Smart Pin Support
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 373
9.6.14 Replacing the one-way restrictor
Parts, equipment and tools
●
One-way restrictor AS1201F-M3-04 [03088646-xx]
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
Overview
Fig.536: One-way restrictor
1. One-way restrictor
CAUTION!
The one-way restrictor is preset. Do
not change this setting!
If the setting is changed, you will need
to replace the one-way restrictor.
.
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the Pin Picker.
9.6.1 "Replacing the Pin Picker Assembly" [}357]
Fig.537: Screws fastening the valve terminal
► Remove the two screws fastening the
(1)
valve terminal. These are on the
back of the Pin Picker.
► Pull the pneumatic hose off the one-way restrictor.
► Unscrew and remove the one-way restrictor from the valve terminal.
Installation
Follow the removal instructions in reverse order for installation.
9 Component feeding
9.6 Smart Pin Support
374 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
9.6.15 Replacing the solenoid valve
Parts, equipment and tools
●
3/2 way solenoid valve V114A [03085498-xx]
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
Overview

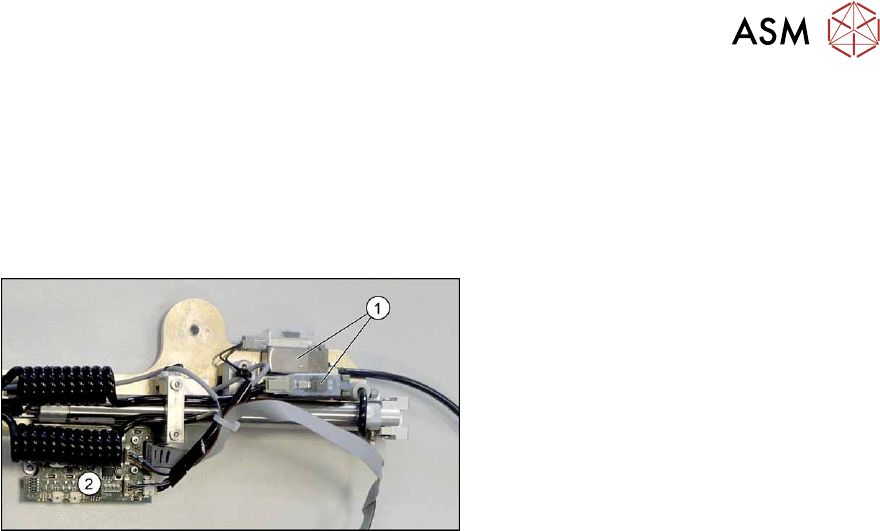

Fig.538: Solenoid valves and control board
1. Solenoid valves
2. Control board
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the Pin Picker.
9.6.1 "Replacing the Pin Picker Assembly" [}357]
► Unplug the electrical connection from the solenoid valve.
► Remove the screws fastening the top of the solenoid valve and remove the solenoid valve.
Installation
Follow the removal instructions in reverse order for installation.
9 Component feeding
9.6 Smart Pin Support
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 375
9.6.16 Replacing the solenoid valve cable
Parts, equipment and tools
●
Cable SPS valve [03088170-xx]
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
Overview
Fig.539: Solenoid valves and control board
1. Solenoid valves
2. Control board
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the Pin Picker.
9.6.1 "Replacing the Pin Picker Assembly" [}357]
► Unplug the cable from the solenoid valves. You may want to mark the position, to make clear
assignment easier later on.
► Unthread the cable as far as the control board. Open the corresponding cable ties to help you,
if needed.
► Unplug the cable from the control board. You may want to mark the position, to make clear
assignment easier later on.
Installation
Follow the removal instructions in reverse order for installation. Observe the following note:
► Replace any opened cable ties.
