4 Electrics and control system
4.4 Replacing the cover switch
72 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
4.4 Replacing the cover switch
Parts, equipment and tools
●
Safety switch AZ 16-03zvrk-M16 3Oe [03055263-xx]
Overview

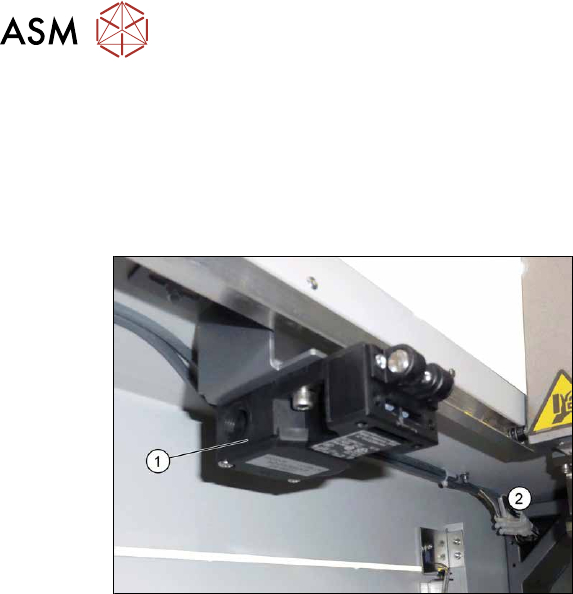

Fig.80: Cover switch
1. Cover switch
2. Connector
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Unplug the connection cable from the cover switch.
► Remove the screws fastening the cover switch and remove the cover switch.
Installation
Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
► The cover switch must be set to the cover. Make sure that the cover switch is clean and
switches properly. The cover switch needs to be set so that even a minimal opening of the
cover will trigger the safety circuit.
Also read section 2.4
"Setting the Covers" [}27].
► Switch the machine on and make sure that the cover switch activates the safety circuit, when
the protective covers are opened.
4 Electrics and control system
4.5 Indicator lamp
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 73
4.5 Indicator lamp
4.5.1 Replacing the indicator lamp/module
Parts

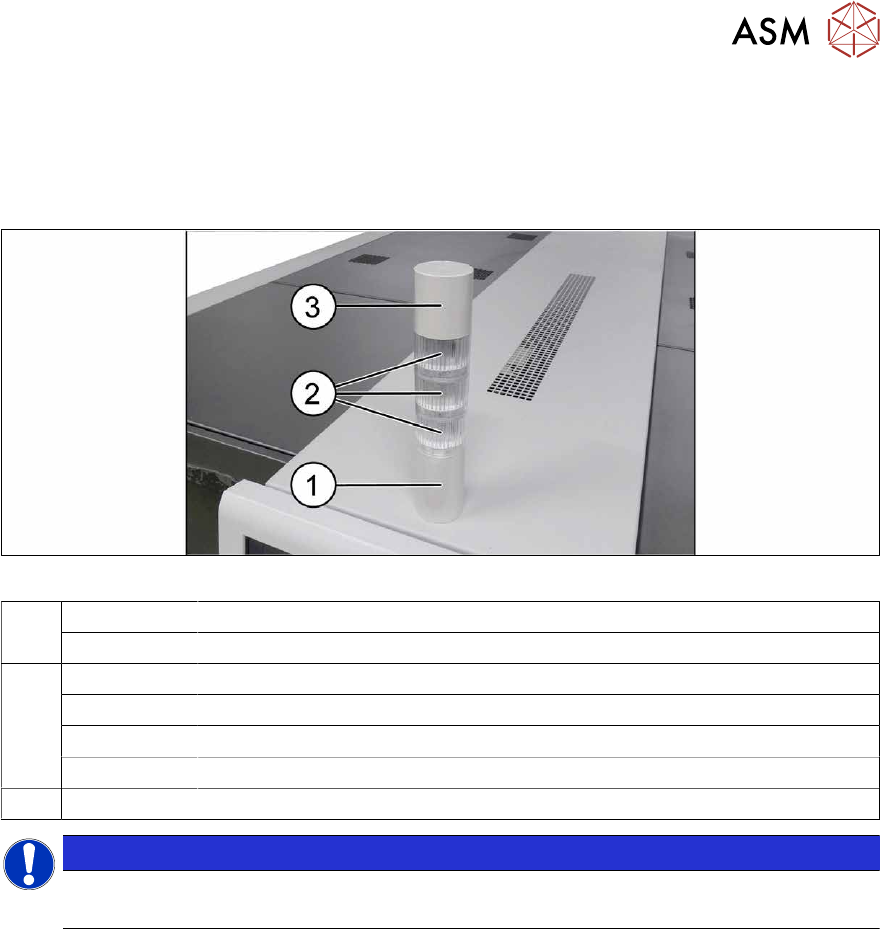

Fig.81: Indicator lamp
1 03162662-xx Basic module
03103211-xx Connecting cable
2 03162664-xx LED module LR5-E-RZ 50mm red, transparent
03162665-xx LED module LR5-E-YZ 50mm yellow, transparent
03162663-xx LED module LR5-E-GZ 50mm green, transparent
03162666-xx LED module LR5-E-CZ 50mm white, transparent
3 03162667‑xx Buzzer module LR5-BW 50mm
NOTICE
Do not separate the LED and its housing
The LED and the transparent housing can not be separated from one another.
4 Electrics and control system
4.5 Indicator lamp
74 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
Two/three color indicator lamp

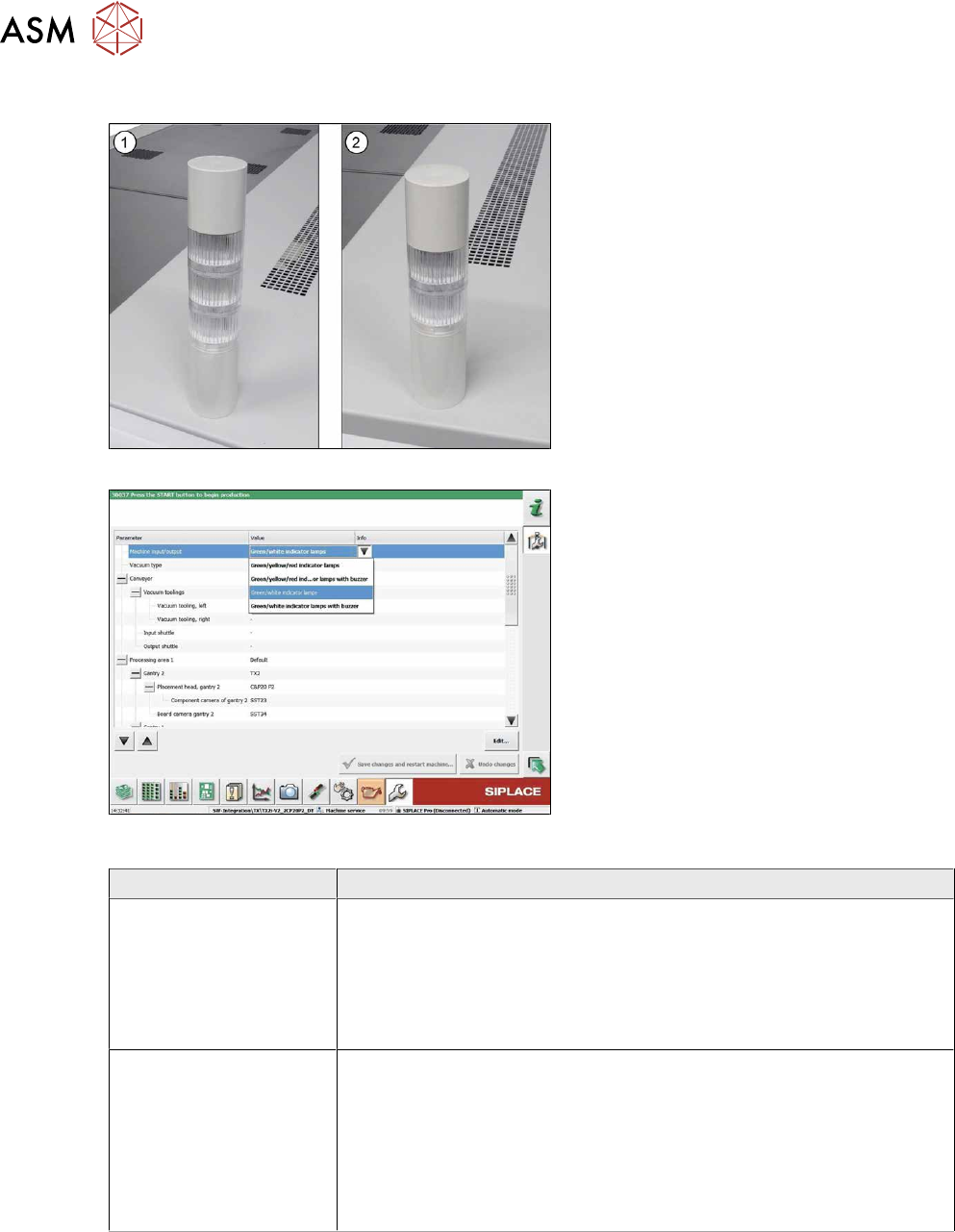

Fig.82: Three/two color indicator lamp
Fig.83: Setting the three/two color indicator lamp
The indicator lamp can either be configured
as a two or three color version:
1. Three color indicator lamp (red/yellow/
green)
2. Two color indicator lamp (white/green)
To convert from two to three color (or vice
versa), fit the relevant LED modules and set
the correct option in the machine configura-
tion.
Variant Parts
Two color variant
(green/white)
●
Basic module [03162662-xx]
●
Connection cable [03103211-xx]
●
Buzzer module LR5-BW 50mm [03162667‑xx]
●
LED module LR5-E-GZ 50mm green, transparent [03162663‑xx]
●
LED module LR5-E-CZ 50mm white, transparent [03162666‑xx]
Three color variant
(green/yellow/red)
●
Basic module [03162662-xx]
●
Connection cable [03103211-xx]
●
Buzzer module LR5-BW 50mm [03162667‑xx]
●
LED module LR5-E-GZ 50mm green, transparent [03162663‑xx]
●
LED module LR5-E-YZ 50mm yellow, transparent [03162665‑xx]
●
LED module LR5-E-RZ 50mm red, transparent [03162664‑xx]
