3. To disconnect the system switch and jog buttons carry out the following:
a. Locate the two release slots in the contact assembly part of the switch.
b. Insert the switch release tool (Part No 188647) into the slots and push
until the release tool clicks into place.
c. Leaving the switch release tool in position, pull the contact assembly from
the switch body.
d. Remove the switch release tool from the contact assembly.
NOTE
To refit the contact assembly to the switch body, using the locating
keyway, push the two units together until they click into place.
4. To disconnect the E Stop, turn the latch anti-clockwise and pull the contact
assembly away from the cover.
5. Undo the appropriate M5 captive screws (refer to rear corner panels figure
for screw position).
6. Lift the panel clear of the machine, taking care not to damage the earth

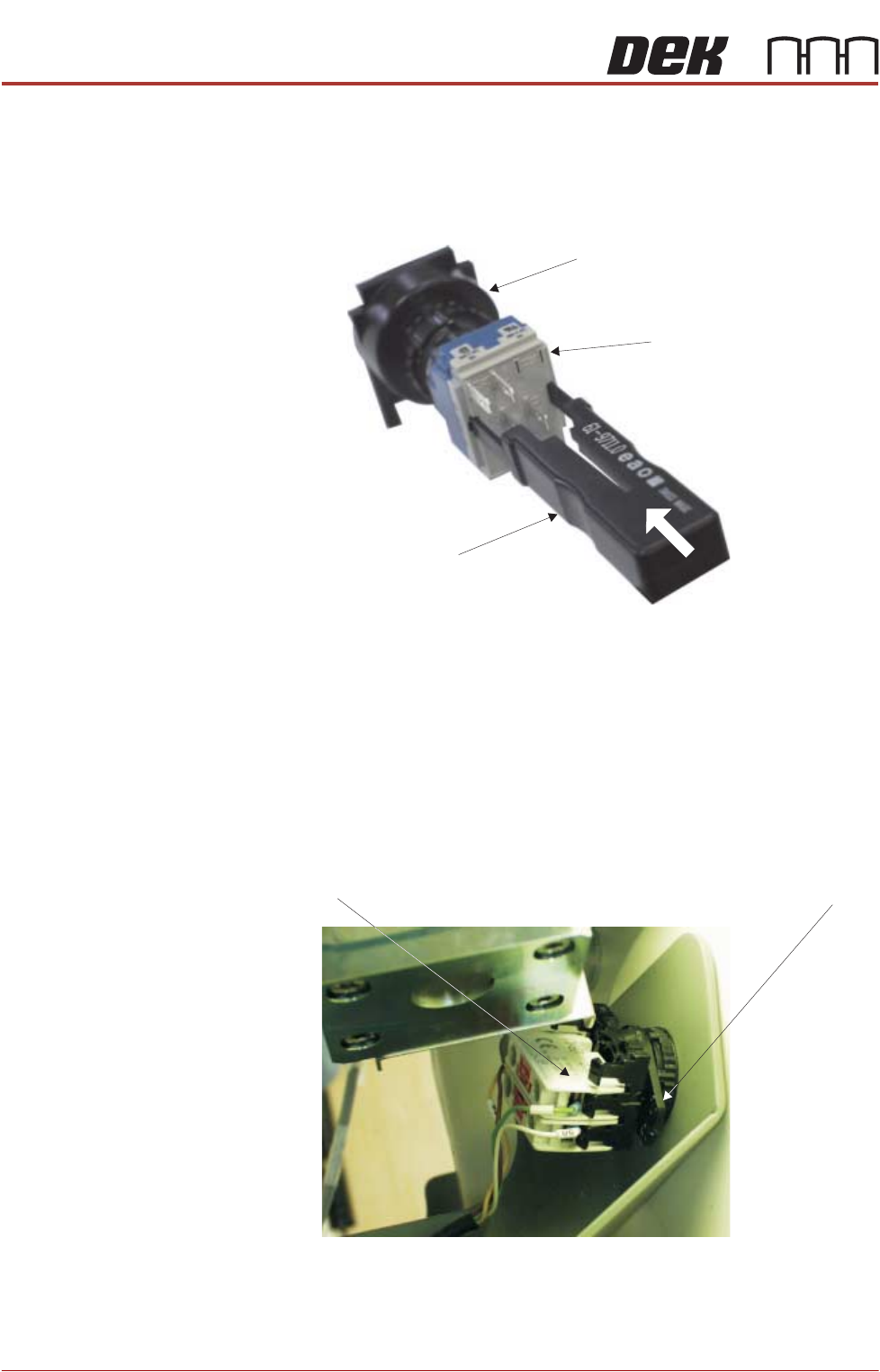

View on Rear of Switch
Switch Release Tool
Switch Body
Contact Assembly
Contact Assembly Latch
View on Rear of E Stop
COVERS
PRINTER COVERS
Chapter Issue 10, Jul 16 Technical Reference Manual 3.27
cable.
7. Repeat Steps 3 to 6 for the other front corner panel, if required.
Lower Side Panels To remove the lower side panels, carry out the following:
1. Remove the corresponding safety cover (as detailed previously).
2. Open the front printhead cover.
3. Remove the front panel (as detailed previously).
4. Remove the rear panel (as detailed previously).
5. Remove the rear fixed printhead cover (as detailed previously).
6. Remove the corresponding rear corner panel (as detailed previously).
7. Remove the corresponding front corner panel (as detailed previously).
8. Using an 4mm Allen key, undo the two captive screws.
9. Tilt the top of the panel away from the machine and lift the panel clear, taking
care not to damage the earth cable.
10. Repeat Steps 1 and 6 to 9 for the other lower side panel, if required.
Upper Side Panels To remove the upper side panels, carry out the following:
1. Remove the corresponding safety cover (as detailed previously).
2. Open the front printhead cover.
3. Remove the front panel (as detailed previously).
4. Remove the rear panel (as detailed previously).
5. Remove the rear fixed printhead cover (as detailed previously).
6. Remove the corresponding rear corner panel (as detailed previously).
7. Remove the corresponding front corner panel (as detailed previously).
View on Left Hand Side of Machine
M5 Captive
Screws
COVERS
PRINTER COVERS
3.28 Technical Reference Manual Chapter Issue 10, Jul 16
8. Using an 4mm Allen key, undo the four captive screws.
9. Tilt the bottom of the panel away from the machine and lift the panel clear,
taking care not to damage the earth cable.
10. Repeat Steps 1 and 6 to 9 for the other upper side panel, if required.
View on Left Hand Side of Machine
Captive Screws
