COVERS
PRINTER COVERS
Chapter Issue 10, Jul 16 Technical Reference Manual 3.45
NOTE
To refit the contact assembly to the switch body, using the locating
keyway, push the two units together until they click into place.
3. Using a 4mm Allen key, undo the appropriate four captive screws.
4. Remove the panel clear of the machine, taking care not to damage the earth
cable.
5. Repeat Steps 3 to 4 for the other upper front corner panel, if required.

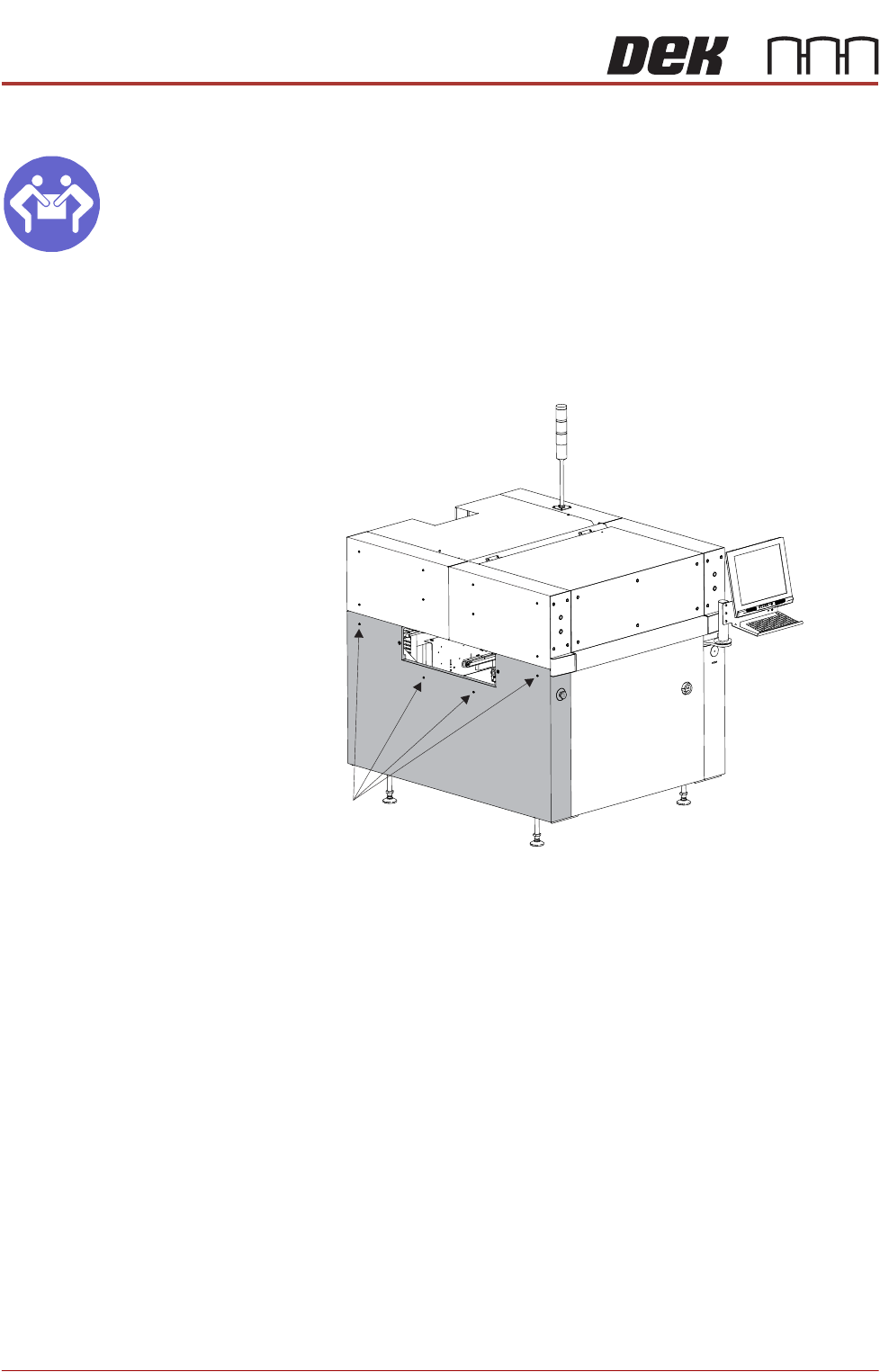

Front Left Quarter View
Captive Screws
COVERS
PRINTER COVERS
3.46 Technical Reference Manual Chapter Issue 10, Jul 16
Lower Side Panels
MANDATORY
HEAVY OBJECT. LIFTING OR RESITING MUST BE UNDERTAKEN BY TWO
PEOPLE.
To remove the lower side panels, carry out the following:
1. Remove the corresponding safety cover (as detailed previously).
2. Open the front printhead cover.
3. Using an 4mm Allen key, undo the two captive screws.
4. Tilt the top of the panel away from the machine and lift the panel clear, taking
care not to damage the earth cable.
5. To disconnect the E Stop from the lower left side panel, turn the latch anti-
Front Left Quarter View
Captive Screws
COVERS
PRINTER COVERS
Chapter Issue 10, Jul 16 Technical Reference Manual 3.47
clockwise and pull the contact assembly away from the E Stop body.
6. Repeat Steps 1, 3 and 4 for the other lower side panel, if required.
7. To disconnect the ESD bonding point locate the inline filter and remove the
spade connector.

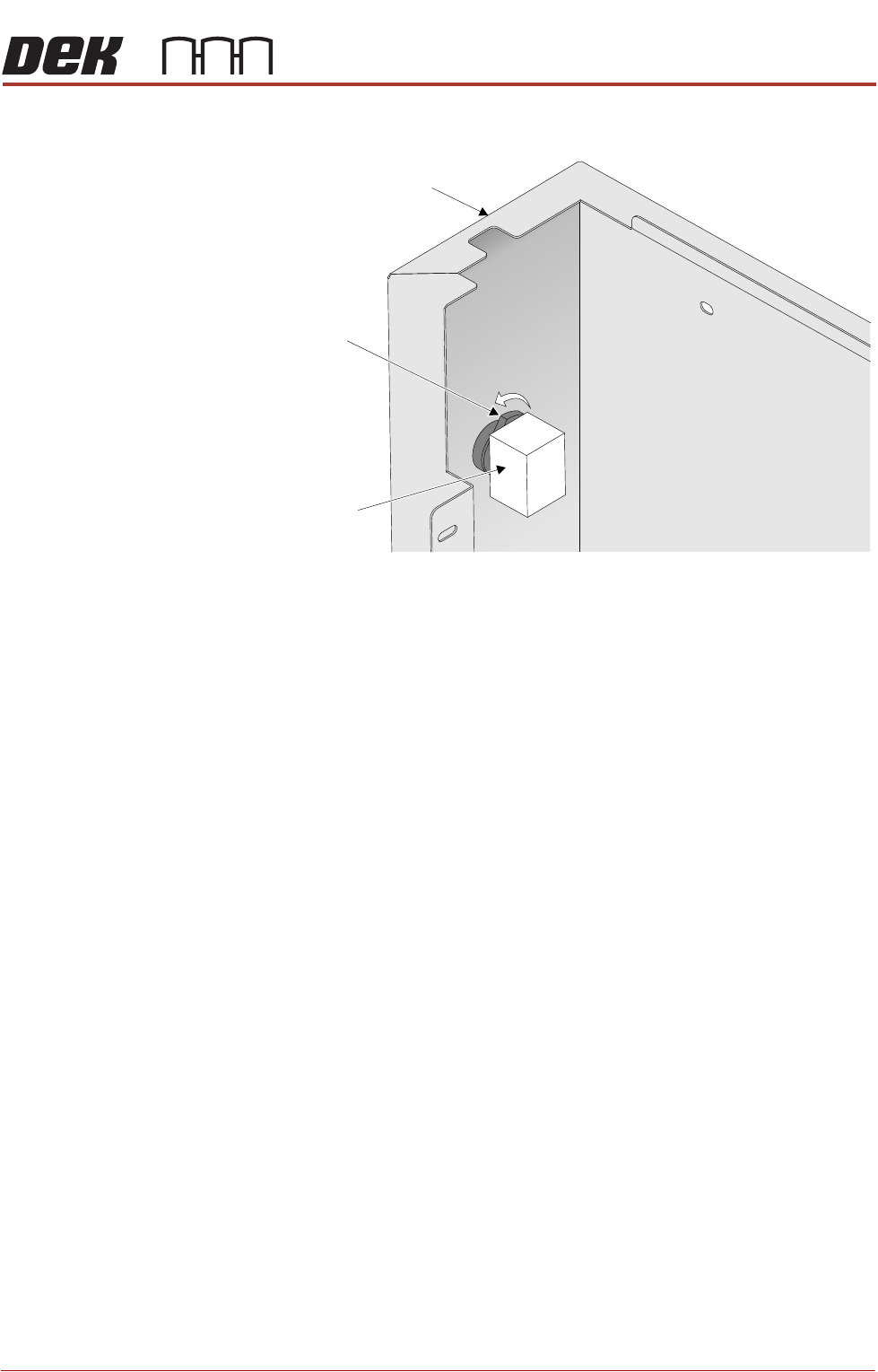

Latch
Contact Assembly
Left Hand Lower Side Panel
View on Rear of E Stop
