Contents
KV1-0807
1 Base Section
Base ...............................................................1-1
2 Cover Section
Top Cover .......................................................2-1
Base Cover.....................................................2-2
3 Feeder Section
Feeder Holder H .............................................3-1
4 Moving-axis Section
X-axis .............................................................4-1
Y-axis ..............................................................4-2
YT-axis ...........................................................4-3
5 Head Section
Head (ST) .......................................................5-1
Head (FNC) ....................................................5-2
Head Combination..........................................5-3
6 Nozzle Section
Nozzle (ST) ....................................................6-1
Nozzle (FNC)..................................................6-2
7 Conveyor Unit Section
Push-In ...........................................................7-1
Push-Up .........................................................7-2
Locate-Pin ......................................................7-3
Stopper ...........................................................7-4
Edge Clamp....................................................7-5
Fixed Conveyor (1) .........................................7-6
Fixed Conveyor (2) .........................................7-7
Moving Conveyor (1) ......................................7-8
Moving Conveyor (2) ......................................7-9
8 Light Section
Front Light ......................................................8-1
9 Control Section
Control ............................................................9-1
10 Exterior, etc. Section
Monitor, etc ...................................................10-1
1
1

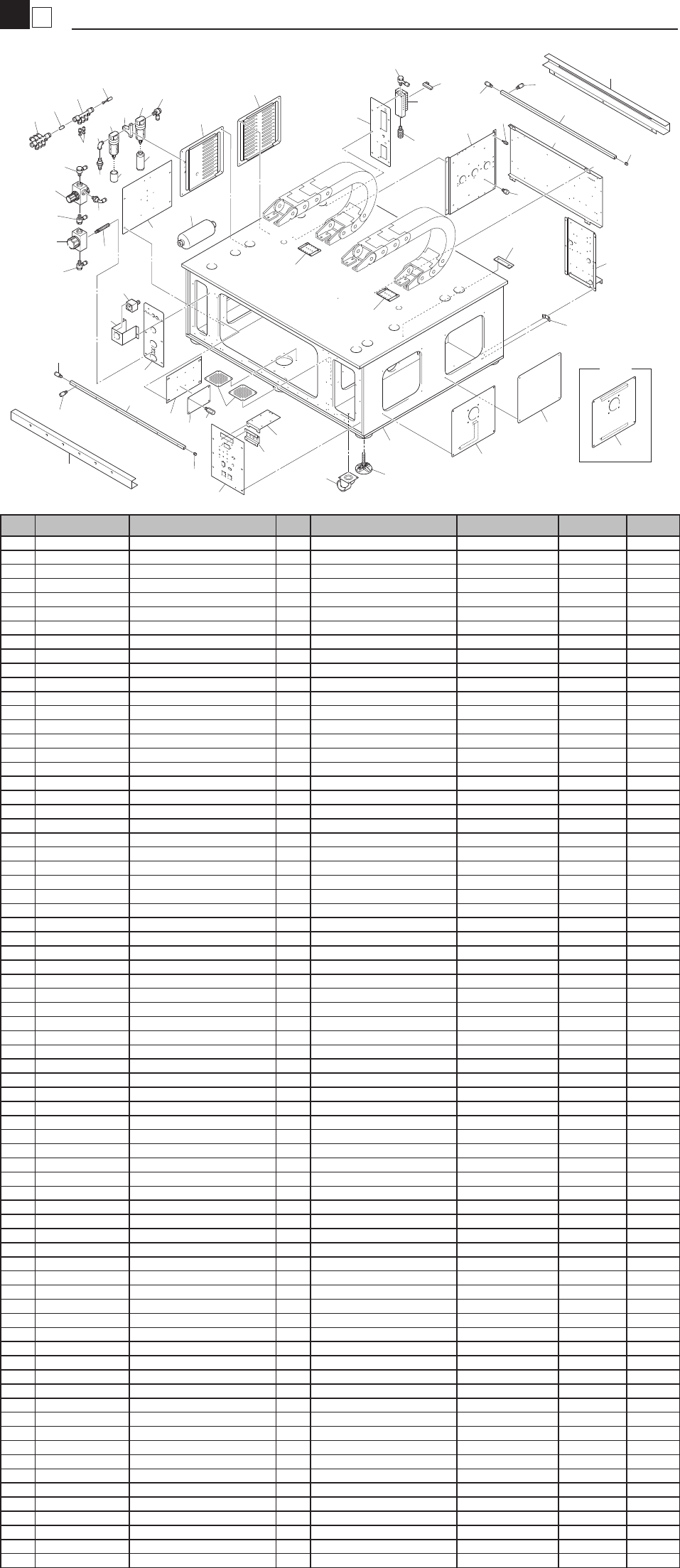

Base
Base
KV1-080515
49
61
62
17
7
28
31
5
46
3
7
35
41
36
32
57
59
58
11
12
10
15
38
6
47
30
44
50
35
36
41
8
22
9
24
24
1
25
23
4
40
16
18
34
53
2
27
14
13
38
43
28
26
21
54
60
42
53
63
33
42
45
OLD
64
64
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M1101-01X BASE 1
1-1 KV1-M1101-02X BASE 1 (2000/11/20) M0X0083 OK
2 KV1-M1120-00X PLATE 10 1 CONECTOR
2-1 KV1-M1120-01X PLATE 10 1 CONECTOR (1999/11/30) M9X0107 OK
3 KV1-M1112-00X PLATE 2 1
3-1 KV1-M1112-01X PLATE 2 1 (2000/2/2) M020002 OK
4 KV7-M1113-00X PLATE 3 1 VALVE
4-1 KGA-M1113-00X PLATE 3 1 VALVE (2003/5/19) M350086 OK
5 KV7-M1114-00X PLATE 4 1 I/O
5-1 KV7-M1114-01X PLATE 4 1 (2007/12/3) MDX0013 OK
6 KV7-M1115-00X PLATE 5 1 AIR
6-1 Delete (2001/5/28) M150099
7 KM0-M1141-00X MANUFOLD 2
8 KV7-M1116-01X PLATE 6 1
9 KG7-M1342-01X BRACKET,F/D 1
10 KG2-M8501-00X AIR FILTER 1
11 KG2-M8502-00X MIST FILTER 1
12 KG2-M8503-00X MODULE ADAPTER 1
13
KG2-M8504-00X REGULATER 1
13-1
KG2-M8504-01X REGULATOR 1 (2005/6/17) MB60097 OK
14 KG2-M8512-00X JOINT 1
15 KG2-M8513-00X JOINT 1
15-1 KHN-M8599-00X JOINT,ELBOW 1/2 1 (2007/5/25) MD50093 OK
16 KM0-M8582-00X VALVE 1
17 KG7-M8596-00X PRESSURE GAUGE 1 R300-03
18 KV7-M1118-00X PLATE 8 1
20
21 KV7-M1125-00X PLATE CLAMP 1
22 KV1-M1128-00X BRACKET SPEED CONT. 1
23 KM0-M1142-00X CASTER 6 Option
24 KM0-M1151-01X PLATE,SIDE 1 1
24-1 KM0-M1151-02X PLATE,SIDE 1 1 (2007/6/6) MD50118 Set
25 KM0-M1152-01X PLATE SIDE 2 1
26 KM0-M1153-01X PLATE SIDE 3 1
27 KM0-M1154-01X PLATE BOTOM 1 2
28 $SL12-04 JOINT 3
29
30 $TL4-02 JOINT 1
31 $UEDW10-8 JOINT 1
32 $USD10-8 JOINT 1
33 $SL8-01 JOINT 1
34 $KM-11 MUFFLER 1
35 $TSS4-01 JOINT 12
36 $TSH8-01 JOINT 2
38 $SL12-03 JOINT 2
39 KM5-M4184-00X COVER NOISE FILTER 1
39-1 Delete (2001/2/7) M120037
40 KV7-M1180-00X LEVELING BOLT ASSY. 6
40-1 KV7-M1180-01X LEVELING BOLT ASSY 6 (2000/2/4) M020021 OK
41 K40-M8598-00X PLUG 1 2
42
91C00-03210 SPACER 28 M3X10L
42-1
90563-03J100 SPACER BOLT 28 (2001/9/1) M180147 OK
42-2 90563-03J100 SPACER BOLT 10 (2007/12/3) MDX0013 NG
43 KH1-M8501-00X EXHAUST VALVE 1
44 $KM-23 MUFFLER 1
45 91C00-03220 SPACER 1 M3X20L
45-1 90563-03J200 SPACER BOLT 4 (2001/9/4) M180149 OK
46 KV7-M1161-00X PLATE 11 1 TRANS
47 KV1-M1113-00X PLATE 3-1 1 REG
49 KV7-M1153-00X PLATE SIDE 3 1
49-1 KV7-M1153-00X PLATE,SIDE 3 1 (2005/10/24) MB00092 OK
49-2 KGS-M1153-50X PLATE,SIDE 3 1 (2005/11/17) MBX0075 OK
50 KV7-M111A-00X BRACKET,GAUGE 1
53 KV1-M226C-00X PLATE 2
54 KV1-M1116-00X PLATE 6 1
57 $UED8-4 JOINT 1
58 $UP8 JOINT 3
59 $UP4 JOINT 2
60 KM5-M8531-00X ACCUMLATAOR 1
61 KG2-M8502-40X MIST FILTER 1 CRK557
62 KG2-M8501-40X AIR FILTER 1 CRK555
63 KG2-M8582-40X VALVE 1 SPARE
64 KV7-M1325-01X BRACKT 5 2
1
2

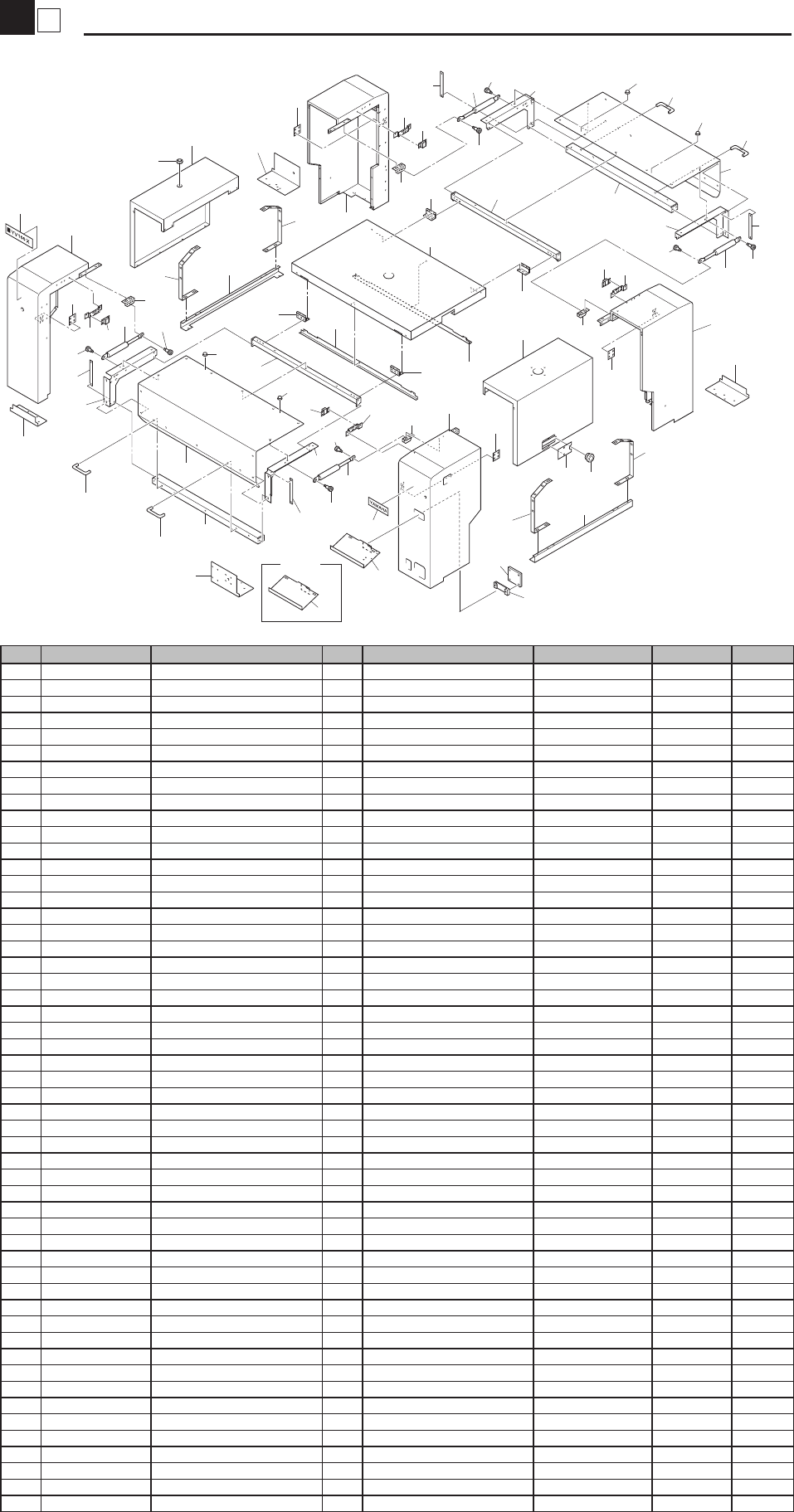

Top Cover
Cover
KV1-090901
31
21
9
28
22
28
22
20
3
30
28
28
30
11
22
26
29
11
23
25
11
10
27
19
9
22
16
20
25
34
23
14
31
32
2
33
31
32
6
21
31
32
23
7
15
10
5
1
25
5
29
8
10
13
10
23
12
25
17
19
30
16
25
4
21
20
18
32
18
21
30
35
25
20
17
25
11
24
24
25
36
37
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M1301-A0X COVER 1 ASSY 1
2 KV7-M1302-A0X COVER 2 ASSY 1
3 KV7-M1303-A0X COVER 3 ASSY 1
4 KV7-M1304-A0X COVER 4 ASSY 1
5 KV1-M1305-00X COVER 5 2
6 KV7-M1306-A0X COVER 6 ASSY 1
6-1
KV7-M1306-A1X COVER 6 ASSY
1
(2000/10/2)
M070225 OK
7 KV7-M1307-A0X COVER 7 ASSY 1
8 KV7-M1308-A0X COVER 8 ASSY 1
9 KV7-M1309-00X COVER 9 2
9-1 KV7-M1309-01X COVER,9 2 (2000/10/2) M070225 OK
10 KM0-M1322-00X PLATE PLUG 4
11 KM0-M1331-01X BRACKET ,GAS DAMPER 4
12 KM8-M1338-01X BRACKET MAIN SWITCH 1
13 KV7-M1336-00X BKT CORNER L,BACK 1
14 KV7-M1337-00X BKT CORNER L,FRONT 1
15 KV7-M1339-00X BKT CORNER R,BACK 1
16 KV7-M1340-00X BRACKET 1 COVER 9 2
16-1 KV7-M1340-01X BRACKET 1,COVER 9 2 (2000/10/2) M070225 OK
17 KV7-M1341-00X BRACKET 2 COVER 9 2
17-1 KV7-M1341-01X BRACKET 2,COVER 9 2 (2000/10/2) M070225 OK
17-2 KV7-M1341-02X BRACKET 2,COVER 9 2 (2001/3/28) M130152 OK
18 KV7-M1342-00X BRACKET 3,COVER 9 2
19 KV7-M1343-00X BRACKET 4,COVER 9 2
19-1 KV7-M1343-01X BRACKET 4,COVER 9 2 (2000/10/20) M000027 OK
20 KV7-M1349-00X PLATE 2 NUT 4
21 K46-M1374-10X HINGE 2 4
21-1 K46-M1374-11X HINGE 2 4 (2009/7/13) MF70096 OK
21-2 K46-M1374-12X HINGE 2 4 (2013/2/13) MK20039 OK
22 KH2-M1324-00X GRIP 4
23 KL3-M1348-10X GAS SPRING 4
24 KH5-M13B1-10X BRACKET KEYBOARD 1
24-1 KGA-M13B1-00X BRACKET,KEYBOARD 1 (2002/6/11) M250065 NG
25 KM0-M1346-00X SHOULDER,BOLT 8
26 KL0-M1318-00X COVER 18 1
27 KH1-M13A9-00X BUSH 1
28 K93-M1392-00X SPACER 4 TM-180-303
29 KV7-M1329-00X COVER 29 2
30 KM0-M1335-00X BKT 1 GATE COVER 4
31 KM0-M1332-00X BRACKET MAGNET 4
31-1 KM0-M1332-01X BRACKET MAGNET 4 (2001/9/18) M190064 OK
32 K93-M1388-00X MG.CATCH 4 TL-77S
32-1 KV5-M1130-00X CATCH MG. 4 (2001/9/18) M190064 OK
33 KV7-M13D7-00X SEAL 2 1 YAMAHA
33-1 KW7-M13D7-01X SEAL 2 1 YAMAHA (2004/7/28) MA70116 OK
34 KV1-M13D6-00X SEAL 1 1 YV100XT
34-1 KV1-M13D6-01X SEAL 1 1 YV100XT (2004/7/26) MA70105 OK
35 KV7-M1350-00X CAP,PATLIGHT 1
36 KL3-M1381-01X PLATE 1 KEY BOARD 1
36-1 KL3-M1381-02X PLATE 1 KEY BOARD 1 (2001/3/28) M130152 OK
37 KL3-M1382-00X PLATE 2 KEY BOARD 1
37-1 KL3-M1382-01X PLATE 2 KEY BOARD 1 (2001/3/28) M130152 OK
