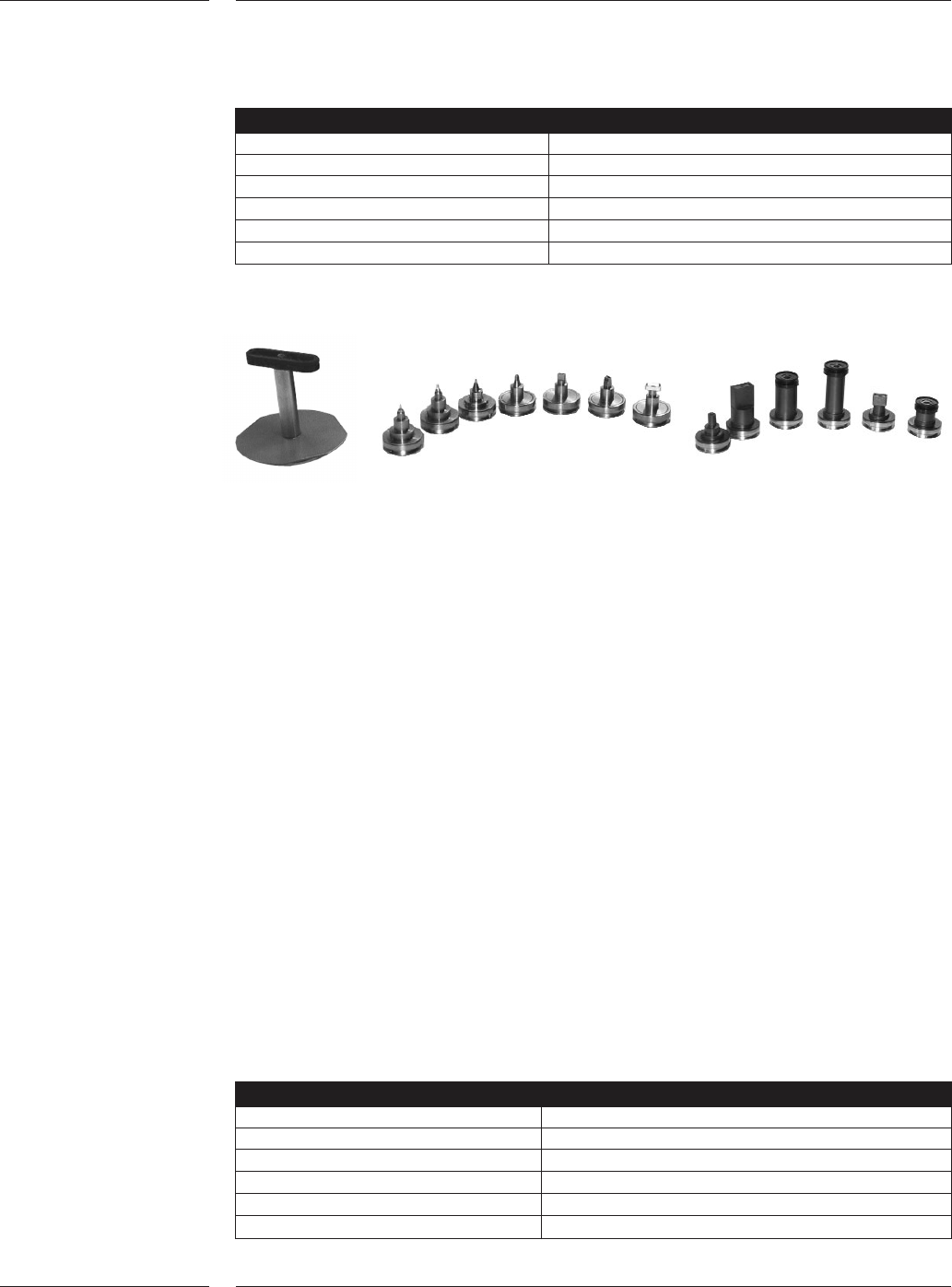

Scanner specifications
Connection RS-232
Baudrate 9600 kb/s
Number of bits 7
Stopbit 1
Parity bit none
X-on/X-off off
Note: There are no scanners provided with the system.
The A-Series uses a variety of toolbits to handle the wide range of components from
0.4 x 0.2mm (01005) up to 165mm long connectors. Each toolbit is designed to
ensure durability, minimal wear, whilst providing robust and delicate component
handling. The toolbits are connected to the placement head by a magnetic
connection or mechanical clamping.
Please refer to the Compatibility matrix on page 32 for an overview of the toolbit
and placement head relationship as well as the toolbit and component relationship.
Toolbits for the PH-SV, PH-LV and PH-DV
The magnetic connection between toolbit and placement head allows fast and
automatic exchange of the toolbit while ensuring a firm connection.
Toolbits for the PH-HA
The standard toolbits for the PH-HA incorporate two toolbits in one. This is referred
to as “dual telescoping toolbits”. There are 5 different outer toolbits, each of
different diameters. Located inside the outer toolbit, a choice of up to 5 inner
toolbits can be used thereby allowing a wide range of components to be placed
using the same placement head.
Mechanical grippers are available to pick and place components which cannot be
picked using vacuum toolbits. The standard gripper set contains a basic gripper with
3 jaw sets that can be adapted by the user to comply with the specific shape of the
component being placed.
Gripper
Max. component size 165 x 45mm
Max. component height 40mm (with restrictions)
Max. weight 50 gram
Clamp force 6.5 ± 0.5N
Placement force 4 - 40N
Variable through hole check 4 - 14N
4.0 Options
4.1 Toolbits
Figure 10
Options
14 of 34

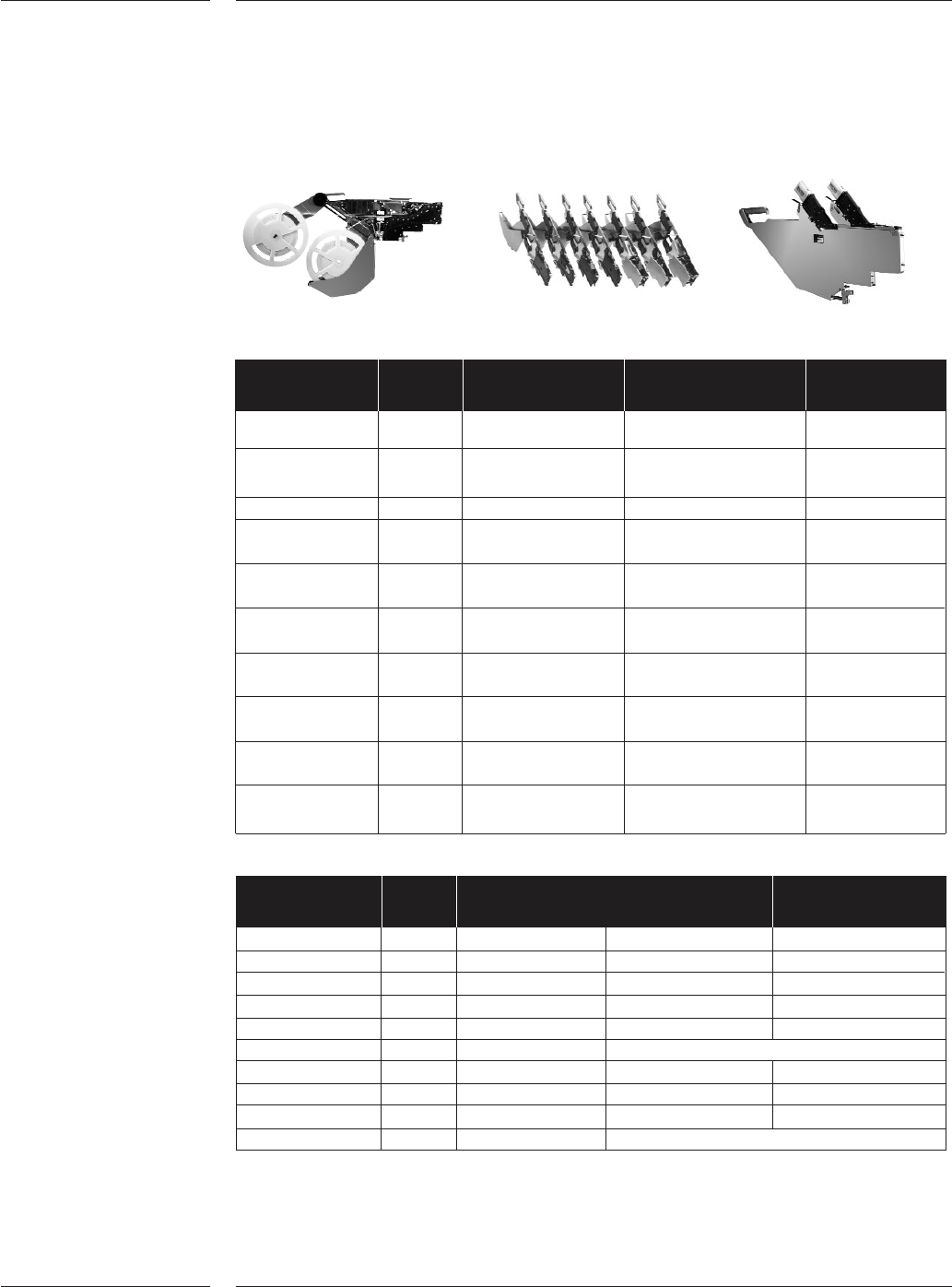

Twin tape feeder, intelligent tape feeder and twin bulk feeder
Feeder Tape Pocket depth Reels Pitch support
width
TTF 8mm 3.5mm 7" - 13" 2,4
ITF 8mm 12mm 7" - 13" 2 ~ 56
15" optional
ITF 12mm SV 12mm 12mm 15" 2 ~ 56
ITF2 12mm 12mm 12mm 7" - 13" 2 ~ 56
15" optional
ITF2 16mm 16mm 12mm, 7" - 13", 2 ~ 56
15.4mm optional 15" optional
ITF2 24mm 24mm 12mm, 7" - 13", 2 ~ 56
16.5mm optional 15" and 22" optional
ITF2 32mm 32mm 12mm, 7" - 15", 2 ~ 56
16.5mm optional 15" and 22" optional
ITF2 44mm 44mm 12mm, 7" - 15", 2 ~ 56
16.5mm optional
ITF2 56mm 56mm 16.5mm, 7" - 15", 2 ~ 56
optional 22" optional
72mm Prec. Pro 72mm 18mm 7" - 15" 2 ~ 48
Univ. feeder
Component EIA Lanes EIA Component specifications
description Length (mm) Width (mm) Thickness
C0201 2 0.57 ~ 0.63 0.27 ~ 0.33 0.27 ~ 0.33
C0402 2 0.95 ~ 1.05 0.45 ~ 0.55 0.45 ~ 0.55
R0402 2 0.95 ~ 1.05 0.45 ~ 0.55 0.30 ~ 0.40
C0603 2 1.53 ~ 1.67 0.73 ~ 0.87 0.73 ~ 0.87
R0603 2 1.50 ~ 1.70 0.70 ~ 0.90 0.35 ~ 0.55
MELF R0604 2 1.50 ~ 1.70 Ø 0.90 ~ Ø 1.10
C0805T0.6 2 1.90 ~ 2.10 1.15 ~ 1.35 0.50 ~ 0.70
C0805T1.25 1 1.90 ~ 2.10 1.15 ~ 1.35 1.15 ~ 1.35
R0805 2 1.90 ~ 2.10 1.15 ~ 1.35 0.50 ~ 0.70
MELF R0805 1 1.90 ~ 2.10 Ø 1.15 - Ø 1.35
Please refer to the Compatibility matrix on page 31 for an overview of other compatible
feeders and their machine relationship.
4.2 Feeding
4.2.1 Specifications
Intelligent tape
feeders & Twin
tape feeders
Figure 11
4.2.2 Specifications
Bulk feeders
Options
15 of 34

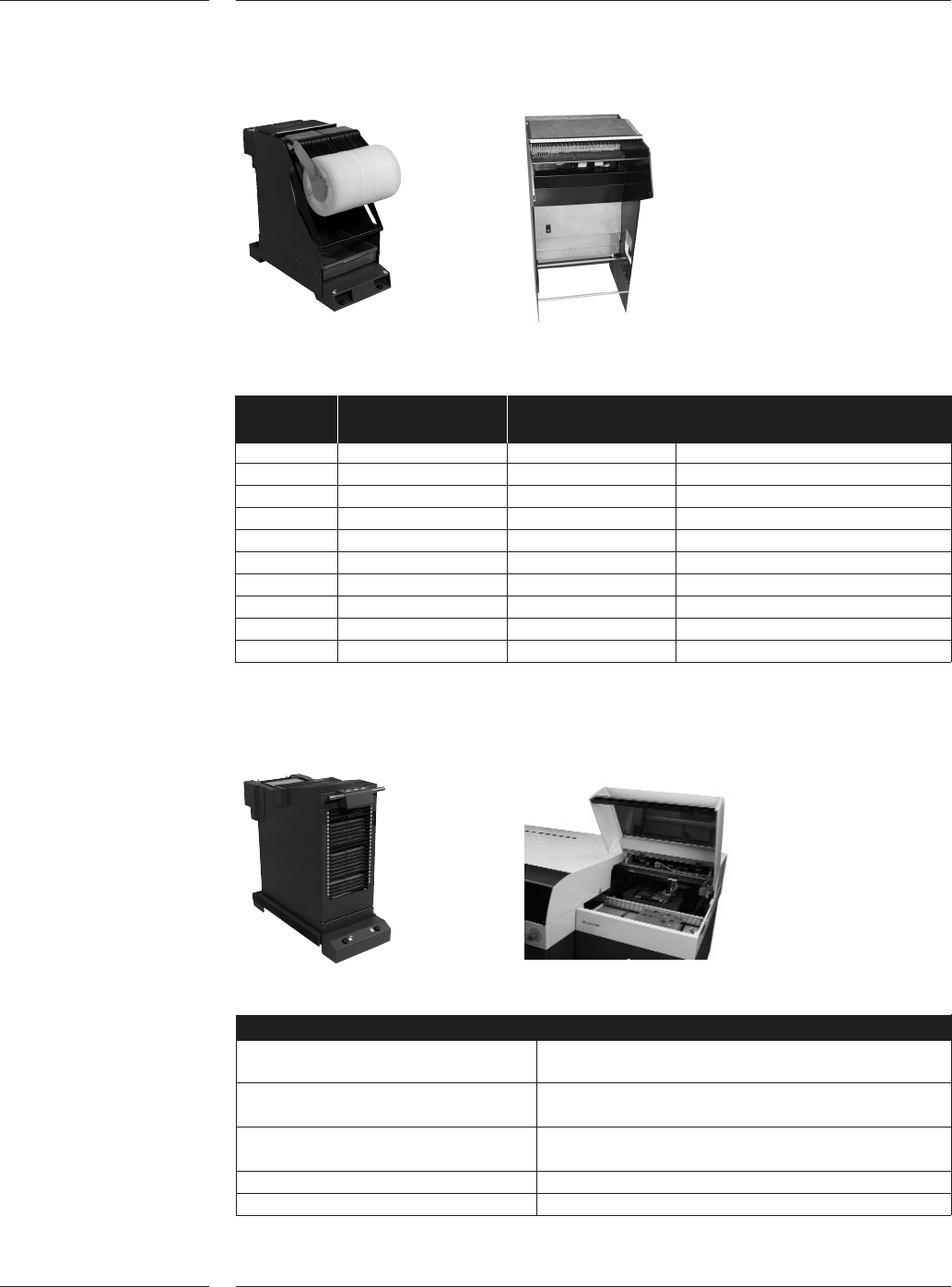

A-Series feeder trolley and bank
Feeder # of feeding positions
AX-501 AX-301 AX-201
TBF 200~260 120-156 -
TTF 220-260 132-156 200 ~ 212
ITF08 100-130 60-78 100 ~ 106
ITF12SV 100-130 60-78 100 ~ 106
ITF12 80-90 48-54 72 ~ 74
ITF16 80-90 48-54 68 ~ 72
ITF24 60 36 50 ~ 52
ITF32 40-50 24-30 40
ITF44 40 24 30 ~ 32
ITF56 25-30 15-18 24
Note: Maximum quantity of feeders depend on robot configurations. In the AX-201, the
largest figure represents the # of feeder positions PH-DV, the smaller figure represents the
# of feeder positions using PH-HA.
A-Series tray trolley and AX Extension Module
Tray trolley
Supported tray type JEDEC-95-1. OEC 60286-5 or 327 x 274mm or
338 x 240mm
Number of tray carriers for tray height 47
up to 8 mm
Number of tray carriers for tray height 23
between 8mm and 13 mm
Maximum Tray load 0.6 kg
Feeder slots 1 feeding section
Note: AX Extension Module (under development) is required for tray feeding on AX-501/301
4.2.3 Feeder
trolleys &
banks
Figure 12
4.2.4 Tray
trolley
Figure 13
Options
16 of 34
