8. Repeat steps 1-5 for the other lines to be upgraded.
As soon as each EDM Line Server has been upgraded, you should proceed to update the EDM
Master:
CAUTION
To avoid all notifications still in the Clearing Pool from being lost, the EDM database
must not be deleted.
9. Shut down the EDM service and stop all EDM applications on the Master Server.
10. Upgrade SIPLACE Pro on the Master Server.
11. Upgrade SIPLACE EDM on the EDM Master Server using the EDM Master or EDM
Master with Clearing Pool setup type.
NOTICE
You might also want to keep the current configuration server. In this case, select
“Custom Setup” and choose the EDM Master and – if needed – the EDM ClearingPool
option, but leave the Configuration Server checkbox unchecked. Step 13
should be
omitted then.
12. Restart the Master Server.
13. Conclude the transition to the new Configuration Server instance with one of these options:
► Manually change the Configuration Server setting on all EDM Lines that used the
temporary Configuration Server to point to the Master Configuration Server, cf.
section 5.3.8.1
► Run the script MoveEdmConfigServer.bat, located in the Tools subdirectory
of the EDM installation path, on the new Configuration Server to move all the EDM
Clients attached to the temporary configuration server as well as all configuration
settings to the local Configuration Server.
CAUTION
This script deletes all settings on the local configuration server, overwriting them with
copies of the source configuration server.
EDM Master
EDM Configuration Server (new
Version)
EDM Line (new Version)
EDM Configuration Server (new Version)
MoveEdmConfigServer.bat
EDM Line (new Version)
EDM Line (new Version)

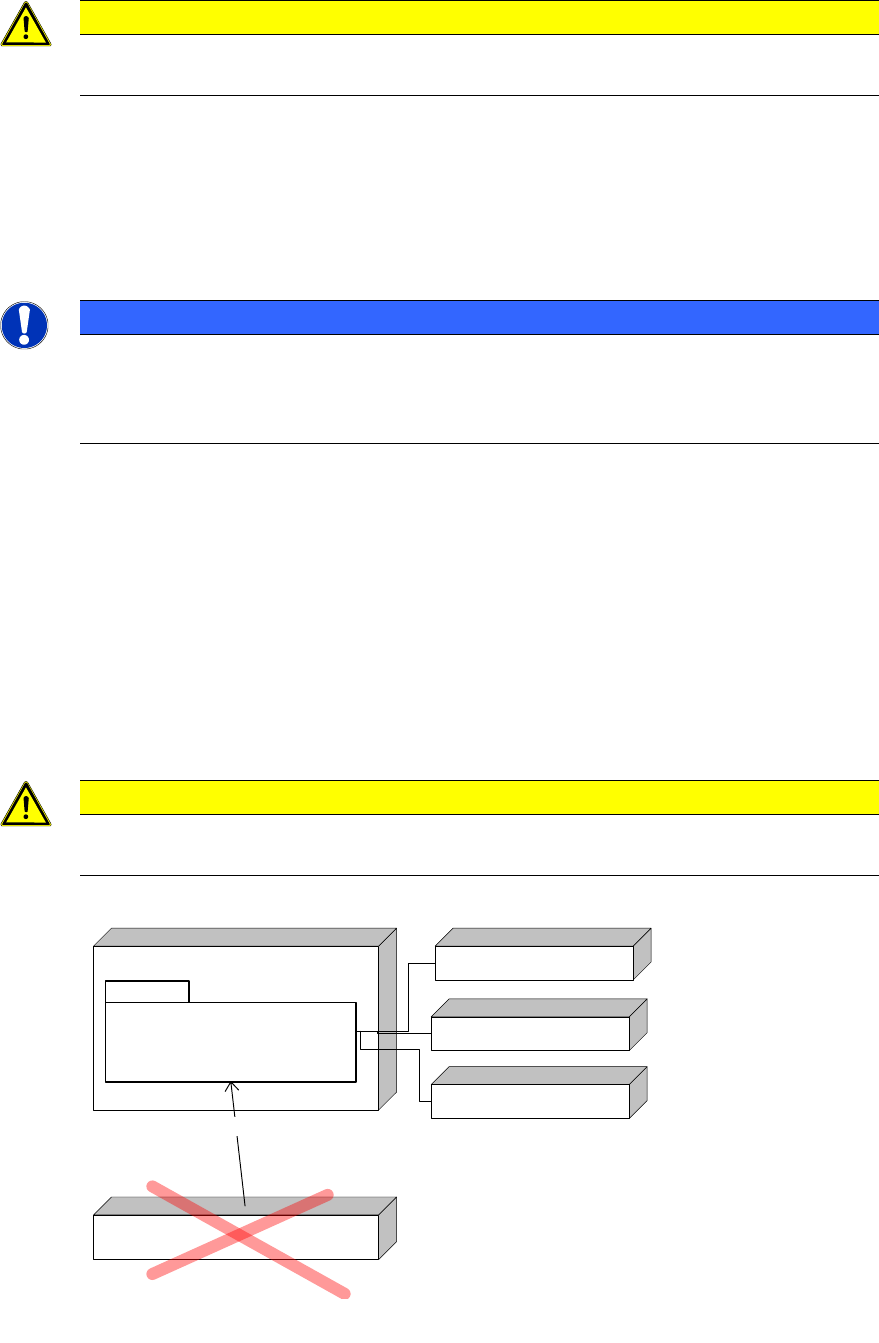

Figure
4-10Configuration Server distribution after migration to latest version of EDM
EDM V2.1 / Installation Manual Ausgabe 11/2012 Edition
24
5 Configuration
5.1 Settings in SIPLACE Pro Desk
To guarantee proper operation of SIPLACE EDM, it is necessary to change some settings in
SIPLACE Pro Desk.
● SIPLACE EDM associates objects on the Master Server and the Line Servers using their
names, i.e. an object must have the same name on all computers. It is recommended that you
suppress the ability to rename and create objects on EDM lines using the user permissions
management facilities in SIPLACE Pro.
● The Vision Data Manager (VDM) must be activated on all SIPLACE Pro Desk installations that
are to participate in EDM to allow Vision data (BLOBs), camera parameters and illumination
parameters to be processed for the line and the station.
● Some settings for SIPLACE Pro Desk (under Tools – Settings - General Settings) must be
consistent across all EDM Client computers and the EDM Master. Currently, this only applies to
the two options for the extended custom nozzle number range (Twin Head and CPP head)
5.2 EDM-specific settings
CAUTION
After any change has been made (and saved) to the configuration, the changes will
immediately be distributed to each connected EDM service.
5.2.1 Basic EDM Configuration Dialogs
During the setup procedure, the user might want to adjust several vital settings. Based on the setup
type, two different dialogs are available
5.2.1.1 Basic Configuration for Configuration Server

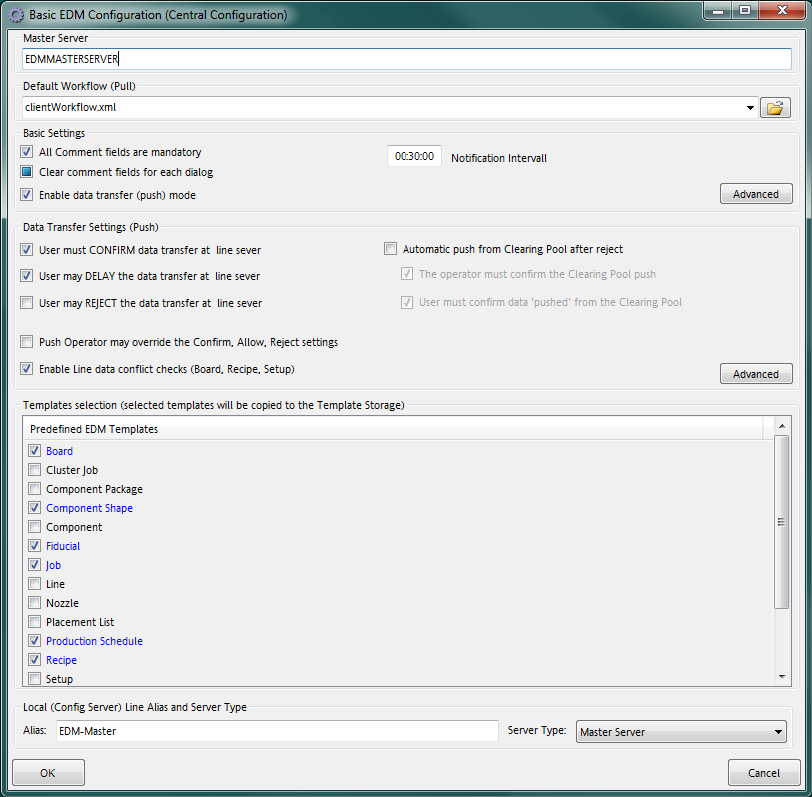

The Configuration Server Basic Configuration dialog is presented during the setup procedure. If
needed, the dialog is recalled via the Edm Post-Configuration Tool shortcut in the
SIPLACE EDM\Administration start menu.
EDM V2.1 / Installation Manual Ausgabe 11/2012 Edition
25
This dialog provides access to basic settings that are common to all EDM computers:
• Master Server is the EDM Master Server’s hostname.
• Default Workflow (Pull) defines the workflow document to be used by default in EDM Line
“pull” scenarios.
• Basic Settings define the behavior of the comment dialog on EDM Lines.
• The Data Transfer Settings group configures the Push Mode settings.
• Templates selection provides the user with a list of predefined application templates that
may be installed onto the master server.
• The Local group contains the configuration server’s basic settings.
• The Advanced button opens an editor to adjust all settings as described in section 6.3
(Configuration File).
