PTS-NXT3c-07 - 第619页

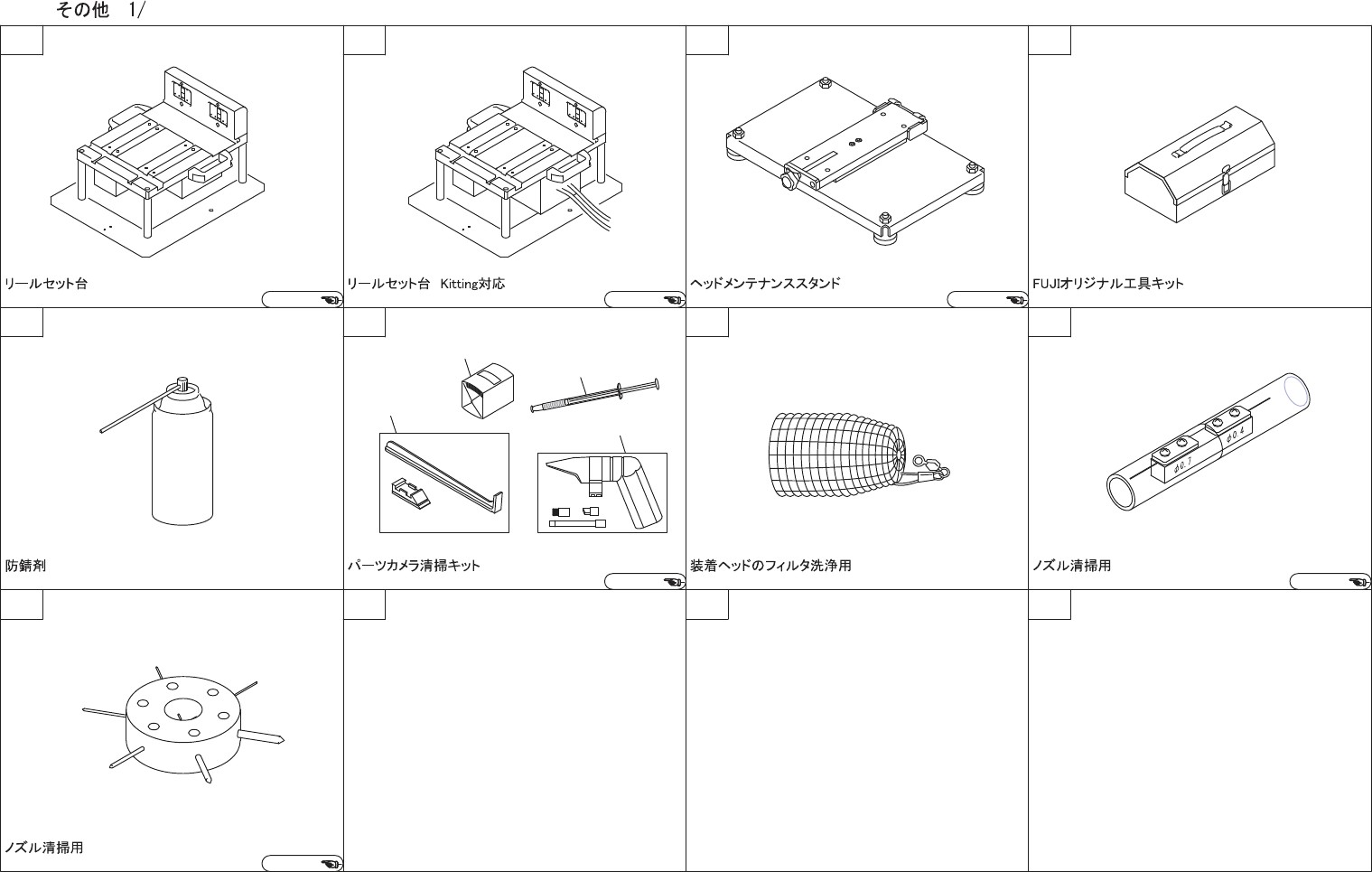

OTHERS 1/ その 他 1/ No. Drg.No. & Cod e No. QT Y Description Ra ting Re marks 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 A1 AA875 23 1 JIG 治具 A2 AA44K 21 1 JIG, INSPEC TION 治具 検査 A3 AA0AM 04 1 ST AND スタン ド A4 H3206 A 1 BOX , TOOL …
H3206ABOX, TOOL
BASKET
FUJI original tool kit
Filter cleaning basket
AWPJ8100JIG
For cleaning nozzles
AA4XY03JIG
For cleaning nozzles
AA87523JIG, INSPECTION
Feeder setting stand Kitting compatible feeder setting stand
AA0AM04STAND
Head maintenance stand
CLEANER AA14K02 K63316
Parts camera cleaning kit
AA44K21JIG, INSPECTION
A4565T
A21010
AA14X02
K3018H
H5116A
Rust inhibitor
RUST INHIBITOR
H08/H12/H12S
DETAIL DETAIL
DETAILDETAIL
DETAIL
DETAIL
A9
A8
A1
A5
A3
A6 A7
A4A2
OTHERS 1/
618
PTS-NXT3c-07
乇
①
他
1
/
OTHERS 1/
その他 1/
No.
Drg.No. & Code No.
QTY
Description
Rating
Remarks
番号
図番
&
ｺｰﾄﾞ番号
個数
品名
規格
備考
A1
AA87523
1
JIG
治具
A2
AA44K21
1
JIG, INSPECTION
治具 検査
A3
AA0AM04
1
STAND
スタンド
A4
H3206A
1
BOX, TOOL
ＢＯＸ ツール
BA
ﾖｳ
SET
A5
H5116A
1
RUST INHIBITOR
防錆剤
T&D
A6
AA14K02
1
CLEANER
クリーナ
A7
K63316
1
BASKET
籠
S3-B 33φ×52mm
A8
AA4XY03
1
JIG
治具
A9
AWPJ8100
1
JIG
治具
619
PTS-NXT3c-07

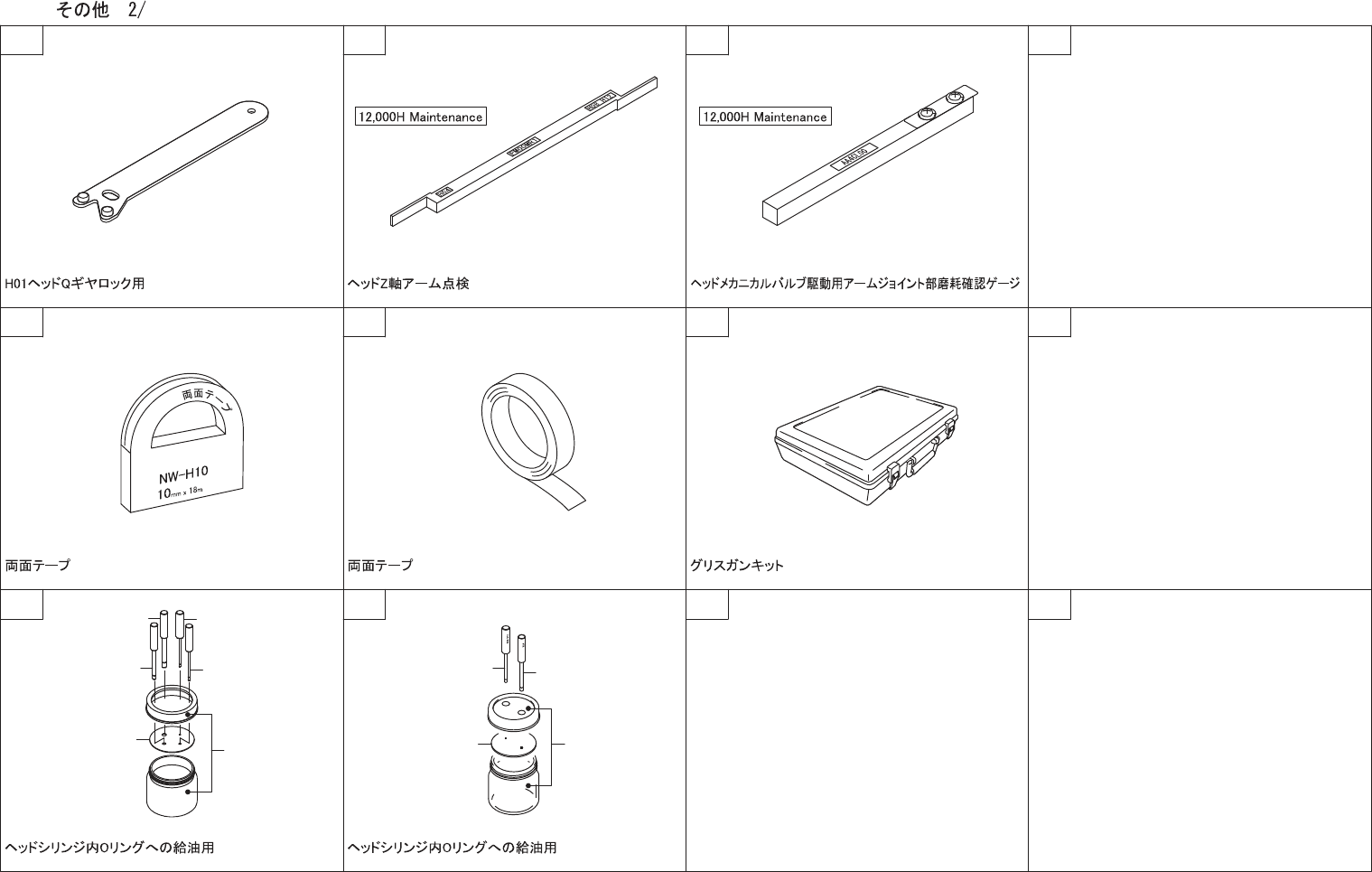

FUJI grease gun kit
AWPJ8202T4069KTAPE TAPE
Double-faced tape Double-faced tape
GUN, GREASET4067B
PM00MR1JIG, INSPECTION
Head Z-Axis arm inspection gauge
AA4CL00JIG, INSPECTION
Mechanical valve arm joint wear inspection gauge
H01/H04/H08/H12/H12SH01/H04/H08/H12/H12S
2SGKHJ000300JIG
Used to lubricate the O-ring in the syringe of the head
Q-axis gear fixing
WRENCH PM28083
2SGKHJ000200JIG
Used to lubricate the O-ring in the syringe of the head
PM02LB3
PM02LC1
PM02LA2
PZ31680
PZ31680
2MGKHJ088200
PM02LB3
PM02LA2
2MGTHJ005900
PM098W1
H04/H08/H12/
G04/H08M/H24
H04/H08/H12
A19A17 A18
A14 A15A13
A21 A22
OTHERS 2/
620
PTS-NXT3c-07
乇
①
他
2
/
