Page 2-15 MACHINE P ARAMETER 2 2 2 Procedures of Machine Parameter T eaching 2-2-1 Origin Pickup Mounting Height Preparations T urn off the servo switch and carry out the operation. 1. Input - 20 for the Z-axis of “ Orig…
Page 2-14

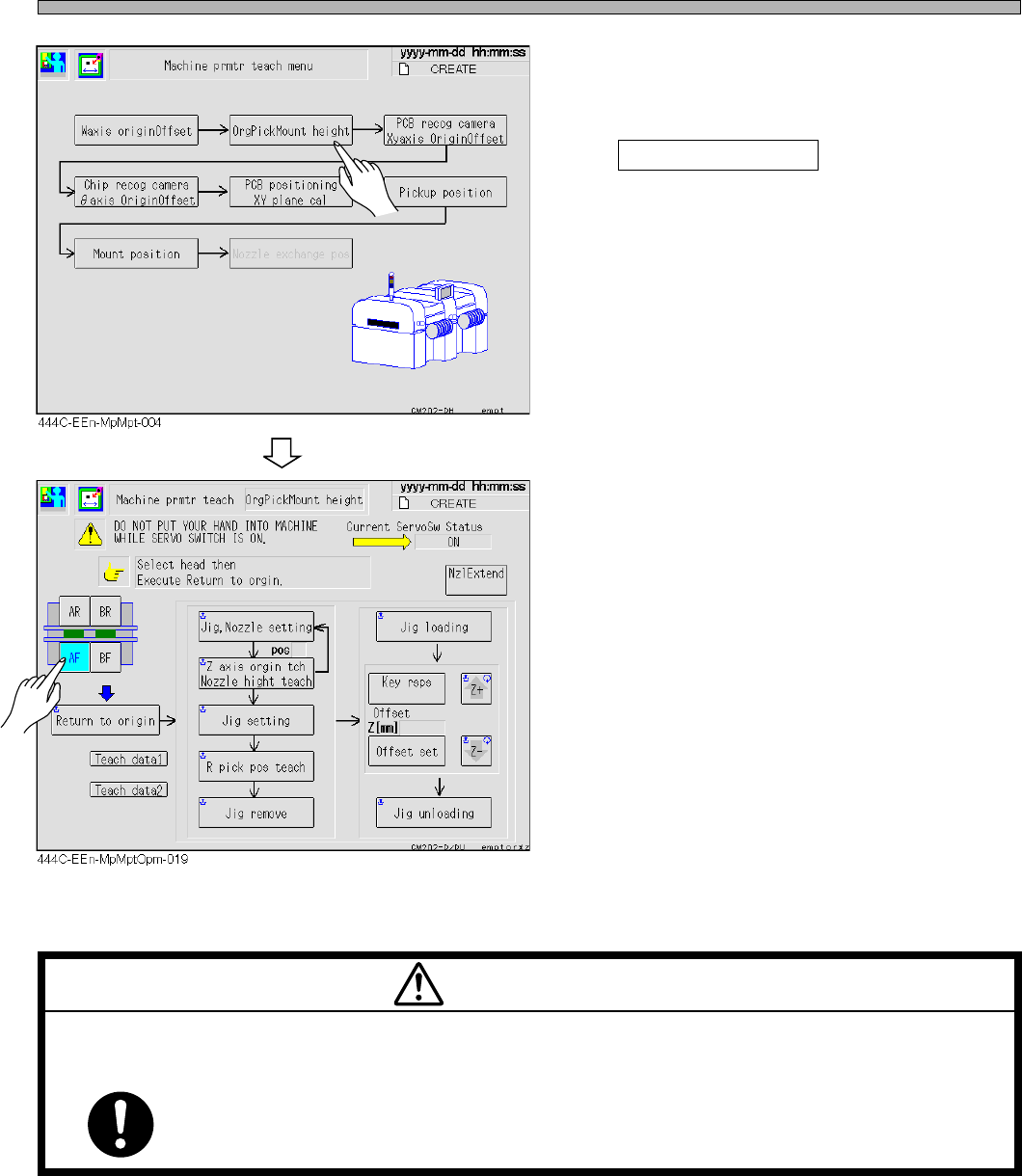

Procedures of Machine Parameter Teaching
4. Press the key of the parameter for
teaching.
∗ Org Pick Mount height is pressed as an
example.
5. Select the table for teaching.
6. Start the machine parameter teaching
following the instruction of the
screen.
M67EB
TURN OFF THE SERVO SWITCH BEFORE PLACING YOUR HANDS IN ACTIVE
PART OF THE MACHINE FOR ADJUSTMENT.
You will have serious injury if the machine is actuated.
WARNING
444C-E-MMA02-A02-06
Page 2-15
MACHINE PARAMETER
2
2
2
Procedures of Machine Parameter Teaching
2-2-1 Origin Pickup Mounting Height
Preparations
Turn off the servo switch and carry out the operation.

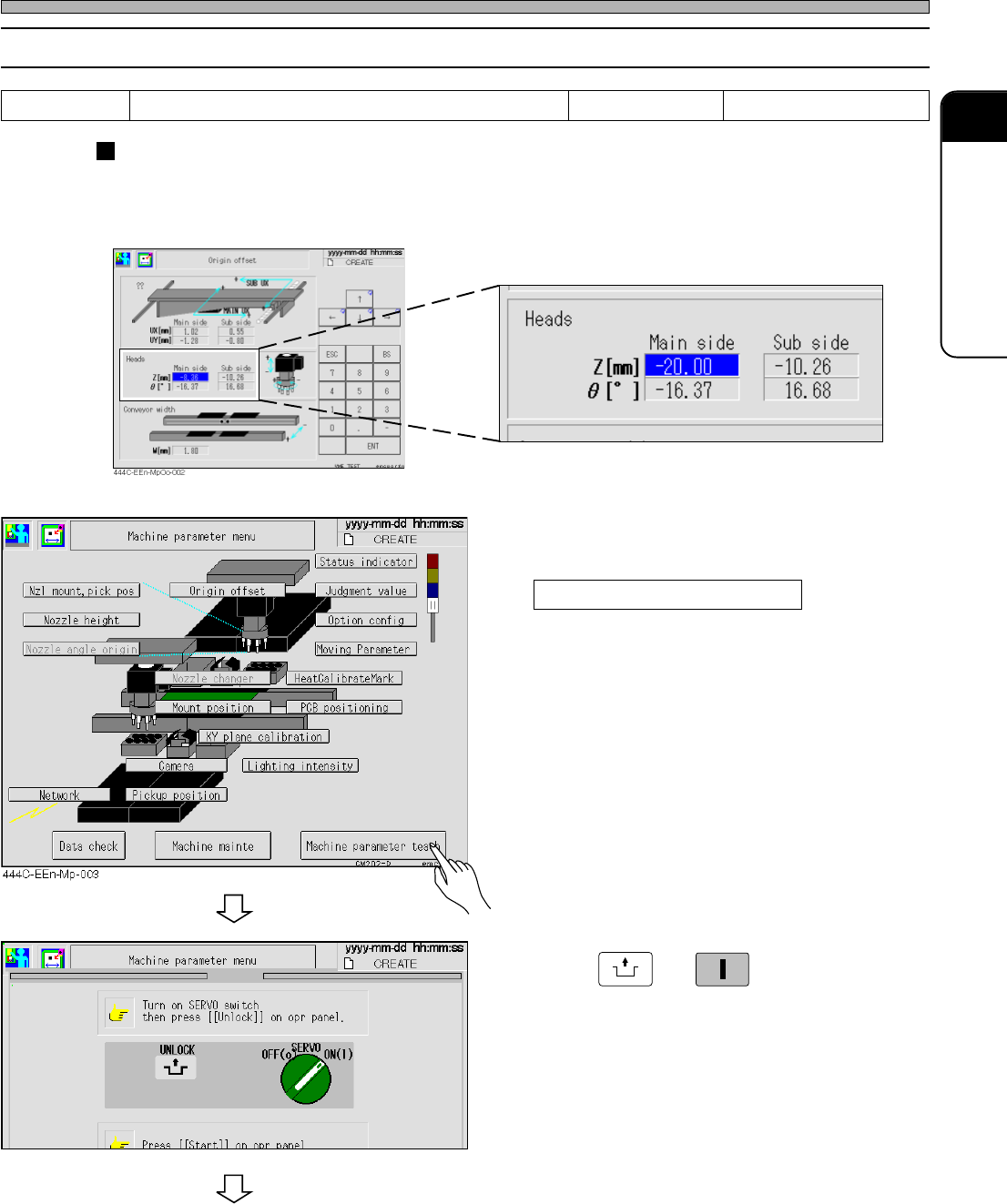

1. Input - 20 for the Z-axis of “Origin Offset” at the “Machine Parameter” screen.
1. Return to
“
Machine parameter menu
”
screen and press
Machine parameter teach .
2. Press
UNLOCK
→→
→→
→
START
.
• The “Machine prmtr teach menu” screen is
displayed.
To the next page
444C-E-MMA02-A02-03
Tools
Height teaching jig, thickness gauge 0.01 mm, and nozzle
Required time 15 minutes
433C-EEn-Mp-002
Page 2-16
Procedures of Machine Parameter Teaching

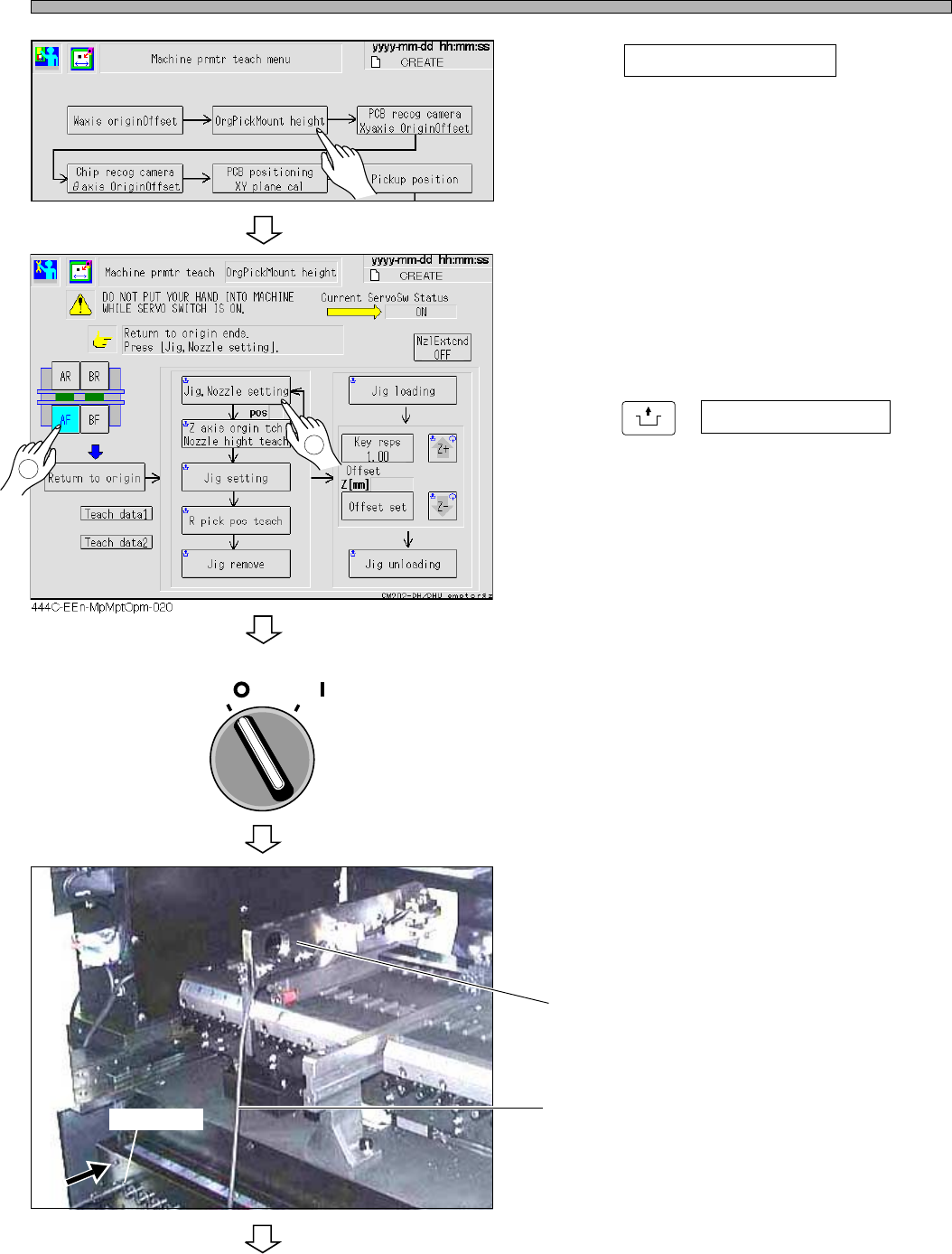

3. Press OrgPickMount height .
• The “Origin Pickup Mount Height” screen
appears.
4. Select the stage for teaching.
5. Press
UNLOCK
+ Jig, Nozzle setting .
6. Turn OFF the servo switch.
7. Open the safety cover.
8. Set the height teaching jig to the slot
No. 7 on the feeder base and connect
the cable to the connector at the left
end.
To the next page
444C-EEn-MpMpt-004
444C-E-MMA02-A02-06
1
Height teaching jig
Cable
OFF ( )
ON ( )
SERVO
444C-476P
Connector
2
