Procedures of Machine Parameter Teaching
2-2-5 Pick-up Position

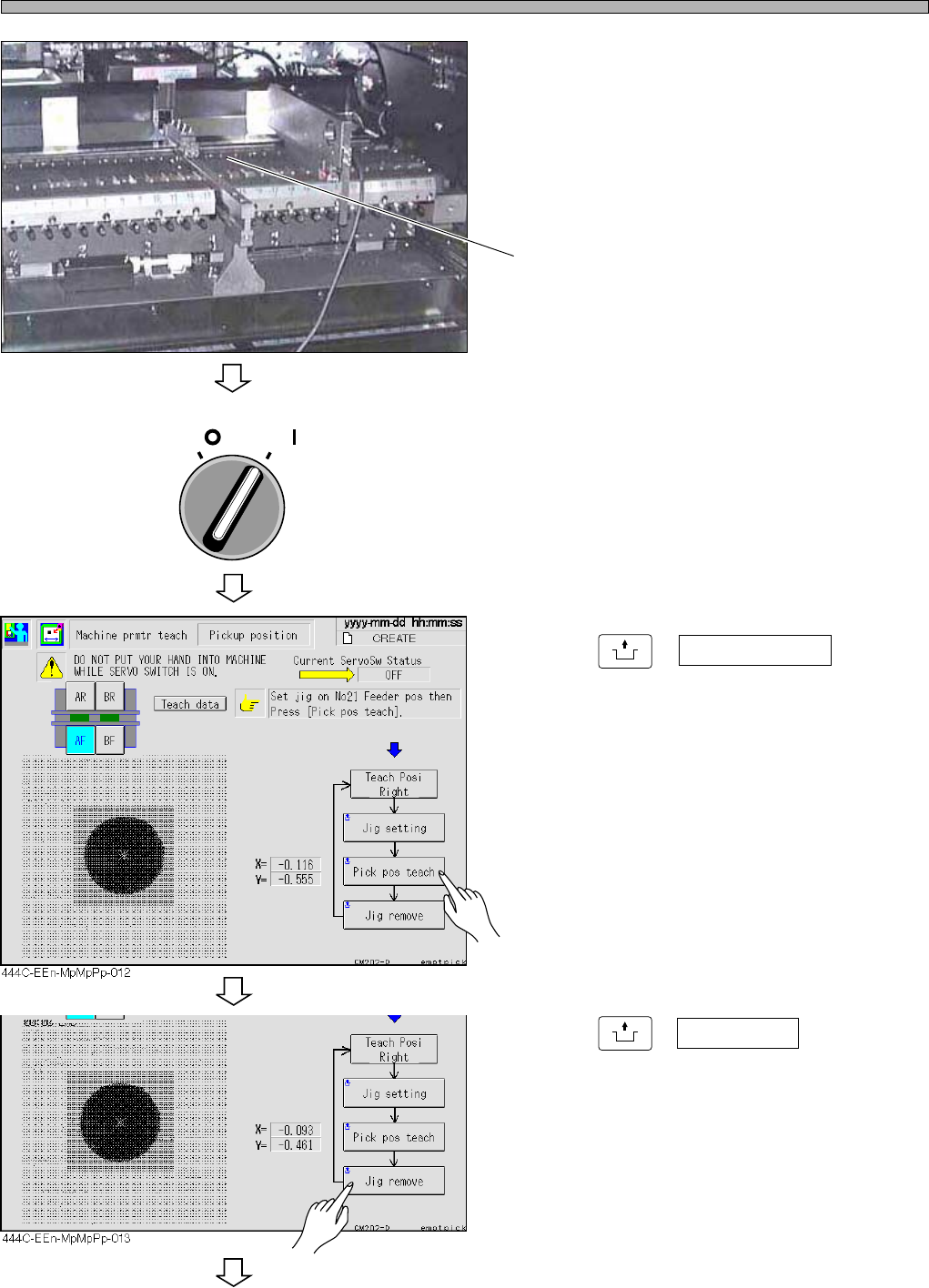

1. Press .
2. Select the stage for teaching.
3. Press .
∗ Pressing this toggles the indication. In this
step, choose left.
4. Press
UNLOCK
+ Jig setting .
• The head moves to the jig setting position, and
then the indication of the servo switch changes
to OFF automatically.
5. Turn OFF the servo switch.
6. Open the safety cover.
7. Set the height-teaching jig to the slot
No. 7 on the feeder base, and then
insert the cable into the farthest-left
connector.
To the next page
Tools 5 minutes
Pickup position
444C-EEn-MpMpt-004
444C-476P
OFF ( )
ON ( )
SERVO
2
1
Height-teaching jig
Teach Posi
Right
3
Required time
Height-teaching jig
Page 2-31
MACHINE PARAMETER
2
2
2
Procedures of Machine Parameter Teaching

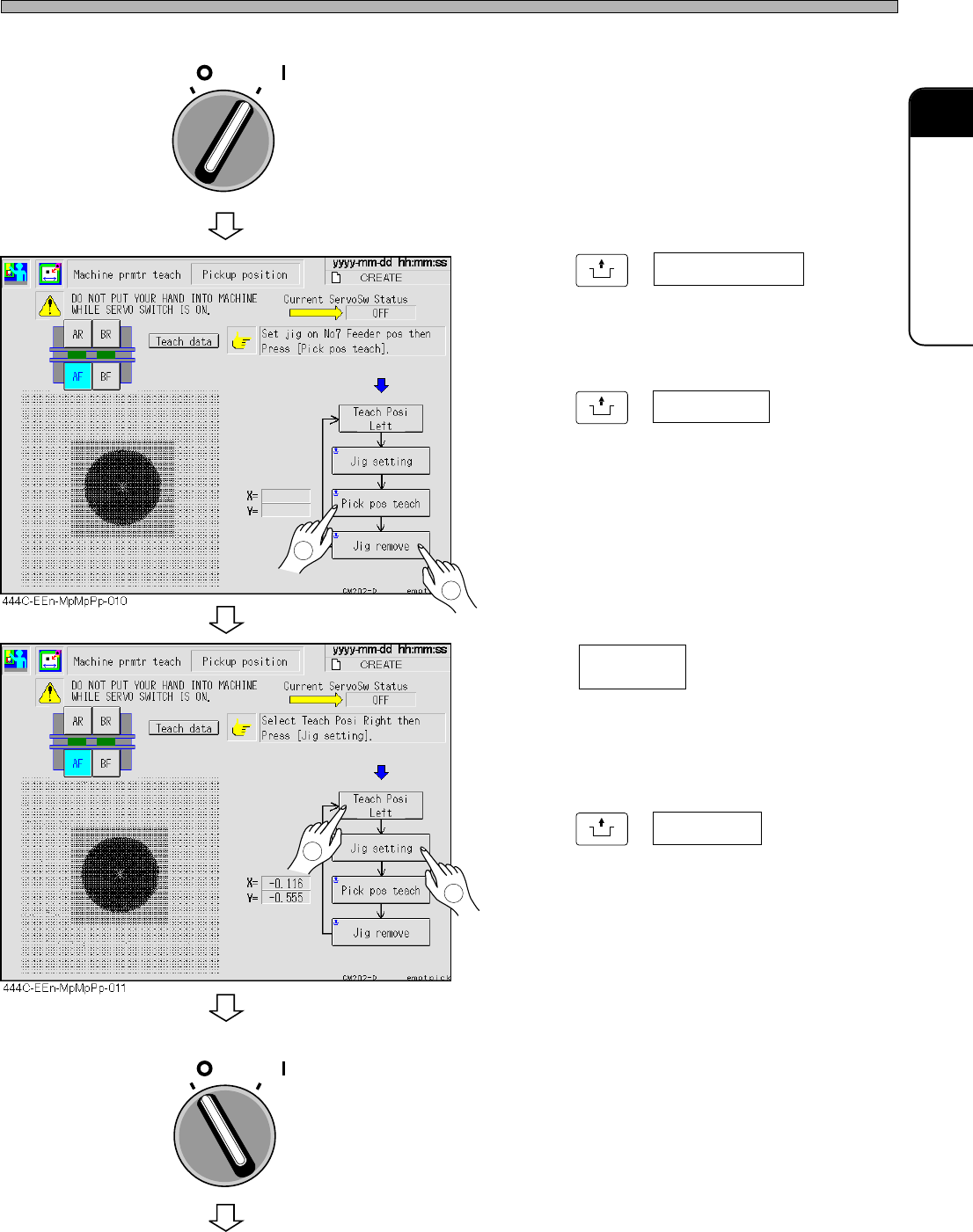

8. Close the safety cover.
9. Turn ON the servo switch.
10. Press
UNLOCK
+ Pick pos teach .
11. Press
UNLOCK
+ Jig remove .
• The head moves to the jig setting position, and
then the indication of the servo switch changes
to OFF automatically.
12. Press .
∗ Pressing this toggles the indication. In this
step, choose right.
13. Press
UNLOCK
+ Jig setting .
14. Turn OFF the servo switch.
15. Open the safety cover.
To the next page
444C-E-MMA02-A04-06
OFF ( )
ON ( )
SERVO
2
OFF ( )
ON ( )
SERVO
1
Teach Posi
Left
2
1
Page 2-32
Procedures of Machine Parameter Teaching
16. Remove the height-teaching jig from
the slot No. 7 on the feeder base, and
set it to the slot No. 21.
17. Close the safety cover.
18. Turn ON the servo switch.
19. Press
UNLOCK
+ Pick pos teach .
20. Press
UNLOCK
+ Jig remove .
21. Pull out the cable from the connecter,
detach the height-teaching jig, and
then return to step 2.
OFF ( )
ON ( )
SERVO
444C-E-MMA02-A04-07
444C-477P
Height-teaching jig
To the next page
