Page 2-33
MACHINE PARAMETER
2
2
2

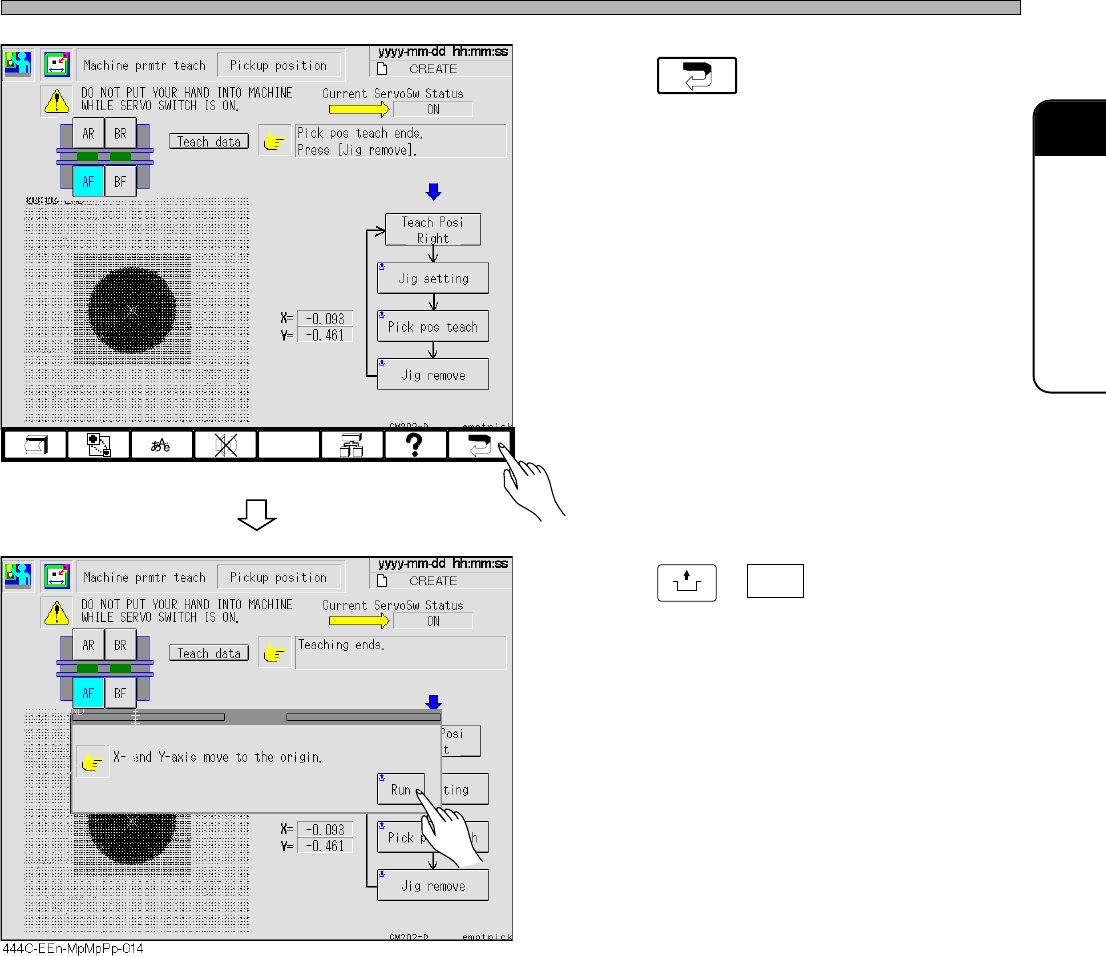

Procedures of Machine Parameter Teaching
22. Press .
23. Press
UNLOCK
+ Run .
444C-E-MMA02-A04-04
444C-EEn-MpMpPp-013
Page 2-34
444C-E-MMA02-A04-05

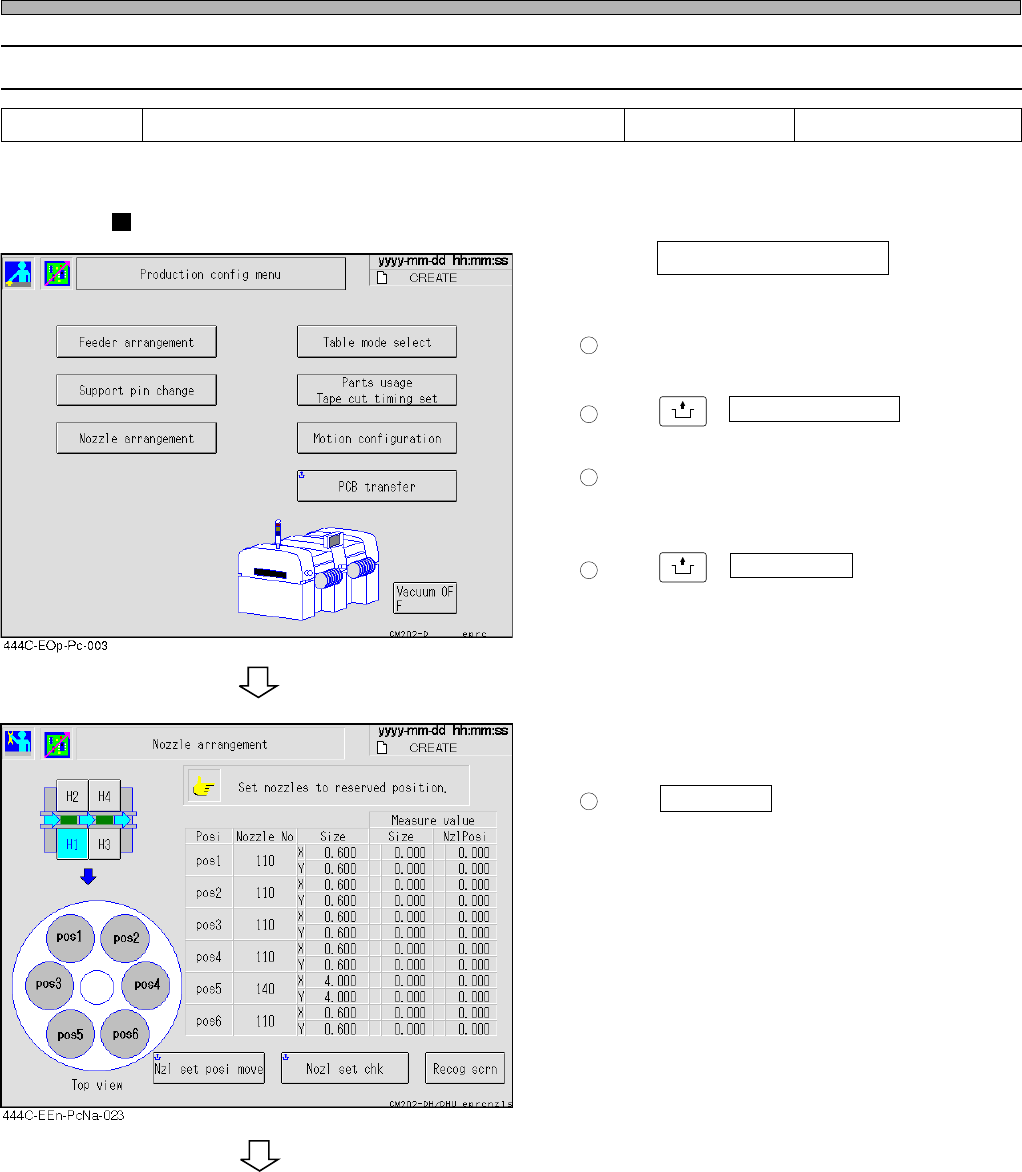

2-2-6 Mount Position
∗ It is required that the pick-up position teaching has been completed.
Preparation
••
••
• Press Nozzle arrangement in “Pro-
duction config menu.”
1
Select a stage.
2
Press
UNLOCK
+ Nzl set posi move .
3
Attach six 110 nozzles to the head on the
selected stage.
4
Press
UNLOCK
+ Nozl set chk .
• Make sure that there are no abnormal mea-
surement values.
∗ When the indication on which the production
data is reflected is not 110 nozzle, the warning
message appears; however, ignore it.
5
Press Recog scrn .
• Make sure that the attached six nozzles are
displayed in white orderly.
To the next page
Tools 15 minutes
1005R feeder, 110 nozzle for 1005 × 6
Required time
Procedures of Machine Parameter Teaching
Page 2-35
MACHINE PARAMETER
2
2
2

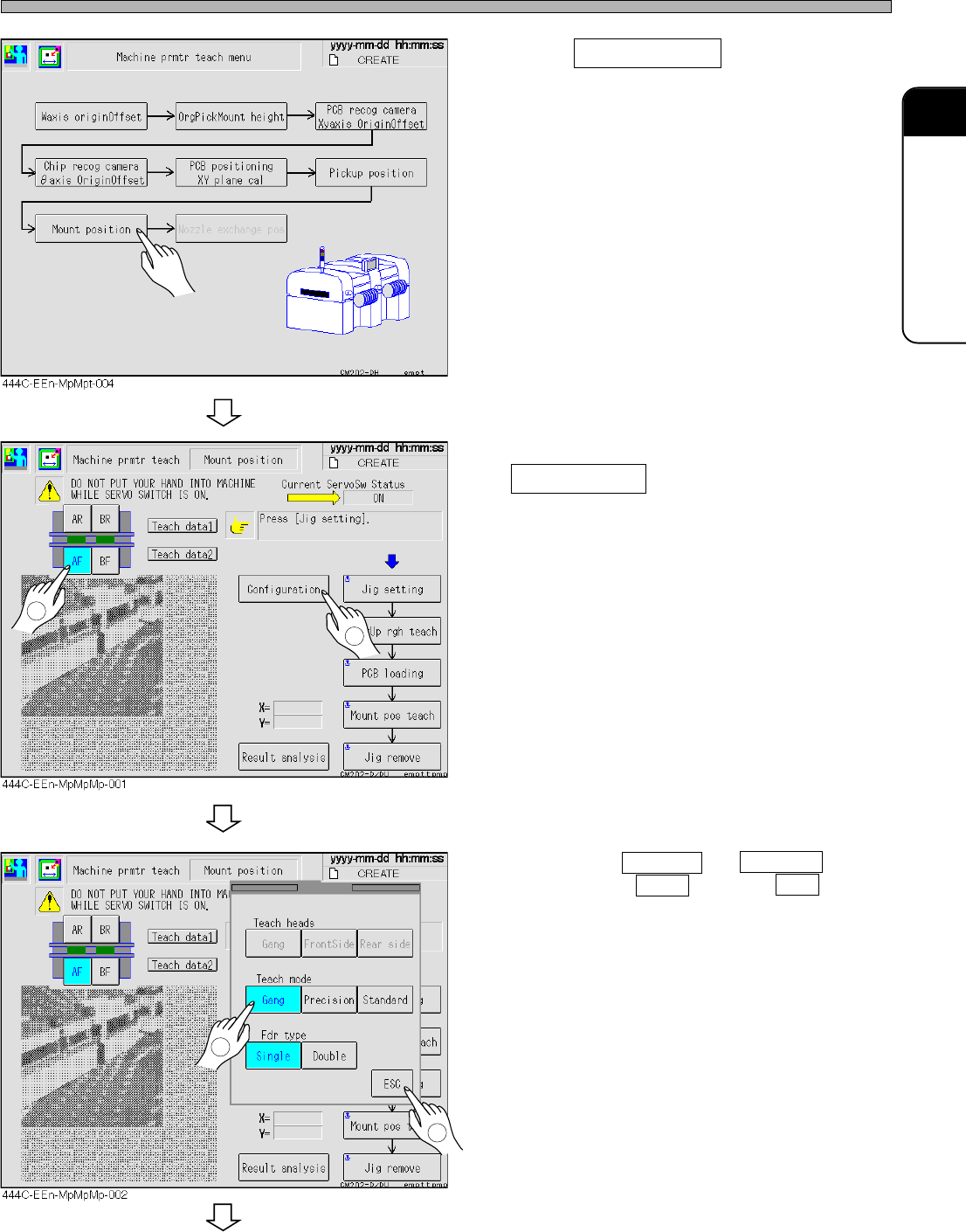

1. Press Mount position .
• The indication of the servo switch changes to
OFF.
2. Select a stage, and press
Configuration to check.
∗ To carry out Standard and Precision continu-
ously, choose Gang and press ESC .
Procedures of Machine Parameter Teaching
To the next page
2
1
2
1
444C-E-MMA02-A04-01
