Page 2-6 444C-E-MMA02-A01-06 2-1-5 Optional Setting Optional settings are displayed. ∗ T o enable the setting, set the switch to 1 . T o disable, set to 0 . Machine Parameter
Page 2-5
MACHINE PARAMETER
2
2
2
444C-E-MMA02-A01-04
2-1-4 Nozzle Height
The setting of the nozzle height is displayed.
2-1-3 Nozzle Mount Pickup Position
Nozzle pos offset
This displays the position relation between the
head and the camera at the mount position.
Each setting is 0°, 90°, 180°, 270°.
If incorrect value are input, the mount position
at the applicable angle of the applicable head
will have parallel deviation.
∗ The angle does not indicate θ of the mount
data, but the absolute angle of the head itself.
Machine Parameter
Page 2-6
444C-E-MMA02-A01-06
2-1-5 Optional Setting
Optional settings are displayed.
∗ To enable the setting, set the switch to 1 .
To disable, set to 0 .
Machine Parameter
Page 2-7
MACHINE PARAMETER
2
2
2
444C-E-MMA02-A01-06

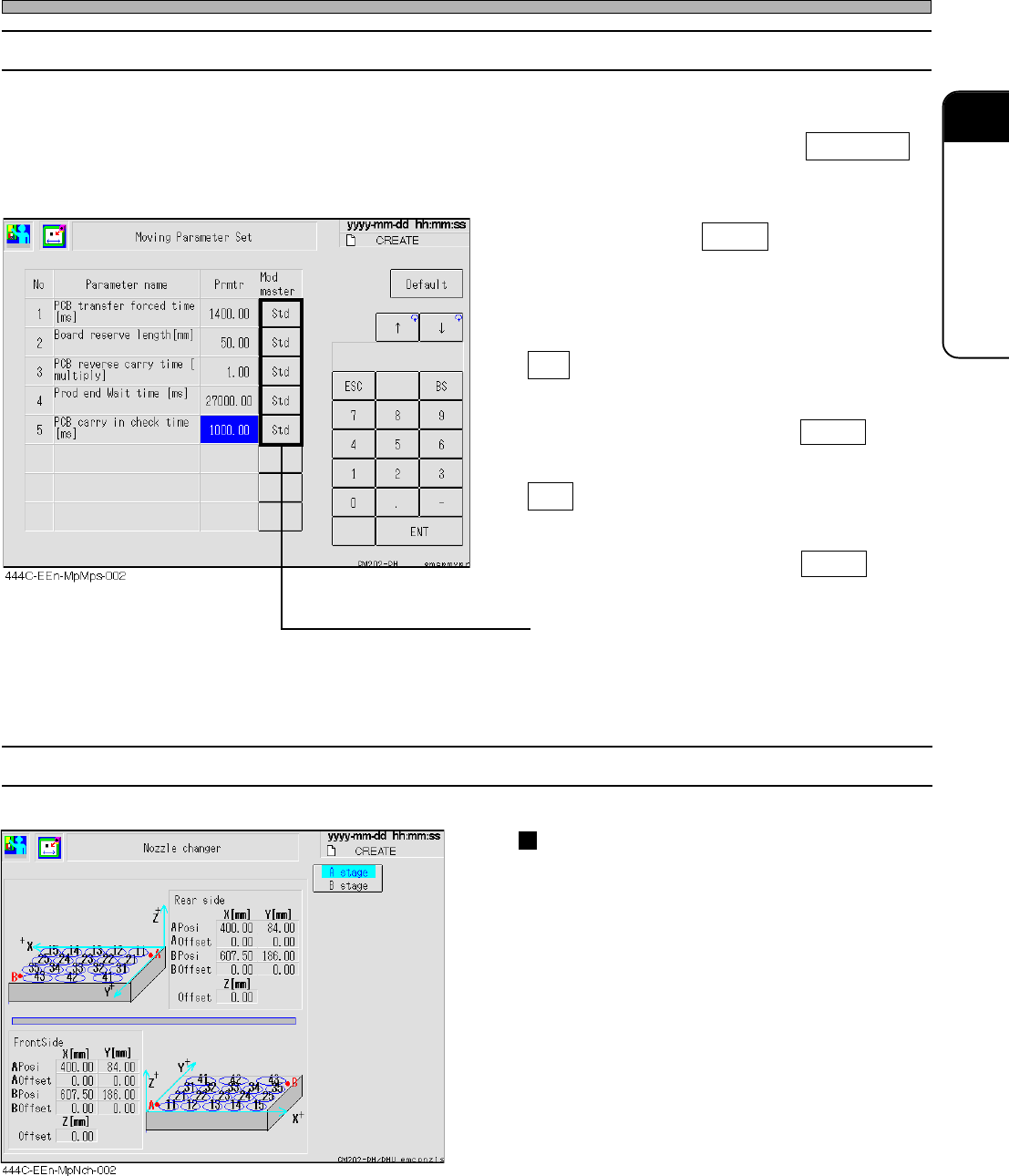

2-1-7 Nozzle Changer
Nozzle changer position offset
The nozzle changer (option) position is dis-
played.
Use this for moving the head in the nozzle
exchange.
Machine Parameter
2-1-6 Moving Parameter Setting
Basically, this parameter does not need to be changed. Even if the value is changed for the motion
check, it will return to the former value after the machine is restarted.
If it needs to be changed after the motion check, change “Std” to “Spcl” by pressing Mod master .
Then the changed value will be maintained even if the power is off.
• Move a cursor to the field to change, and input
the data. Pressing Default returns the data to
the default one.
∗ This can be used only when “Mad master” item
is “Std”.
Std
Even if the data is changed while “Std” is set,
the data returns to the standard value after the
machine is restarted. Pressing Default also
returns the data to the standard value.
Spcl
If “Spcl” is set after the data is changed, the
changed value is maintained even after the
machine is restarted. Pressing Default does
not return the data to the standard value.
∗ Every pressing the “Mod master” button of the
master change will toggle between Std and
Spcl .
