Page SAMSUNG TECHWIN 39 SME 24 mm SME Tape Feeder - Total 10 24 12 K 23 24 19 32 30 14 25 24 F Q 20 28 24 6 27 24 E 11 18 13 23 16 9 27 D R S N 1 8 7 2 28 21 29 4 15 3 31 17 5 26 22 26 2 B T C I A J
Page
SAMSUNG TECHWIN
38
SME
16mm SME Tape Feeder - Sub
NO. LEVEL PART NO. PART NAME Q'TY TYPE IT Non-IT Reference
P S90000060A HANDLE ASSY 1 ○○
1 S72000034A FEEDER HANDLE 1 ○○
2 S72000035A CONTROL BOARD COVER 1 ○○
3 S72000036A CONTROL SWITCH COVER 1 ○○
4 S72000037A SPLICING D/T HOLDER 1 ○○
5 S91000003A SWITCH BOARD ASSY 1 ○○
6 S91000004A SWITCH BOARD CABLE ASSY 1 ○○
7 S72000051A FND GLASS 1 ○○
8 S91000005A IT LED CABLE ASSY 1 ○ X
9 S91000010A SPLICE_BOARD_ASSY 1 ○○
10 S91000006A SPLICING SENSOR CABLE ASSY 1 ○○
11 S72000039A SPLICING GUIDE_16 1 ○○
12 S60060004A FHCS 6 ○○
13 S60050001A BHCS 2 ○○
Q S90000066A 16MM REEL ARM PLATE ASSY 1 ○○
R J90651476A PROBE CABLE ASSY-NONIT 1 X ○
S S91000008A IT BOARD IF CABLE ASSY 1 ○ X
T S90000010A DROP GEAR ASSY 1 ○○
Page
SAMSUNG TECHWIN
39
SME

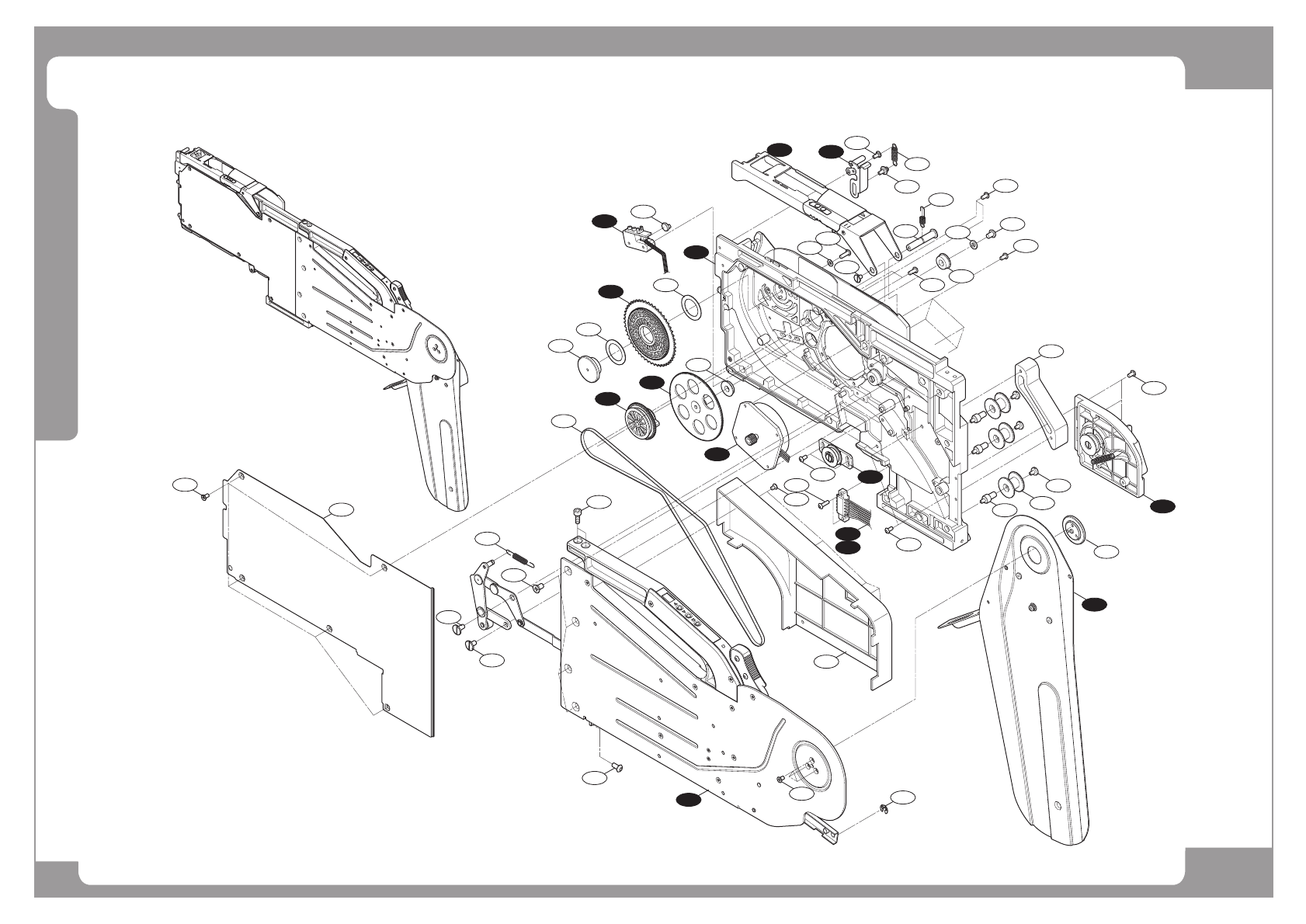

24mm SME Tape Feeder - Total
10
24
12
K
23
24
19
32
30
14
25
24
F
Q
20
28
24
6
27
24
E
11
18
13
23
16
9
27
D
R
S
N
1
8
7
2
28
21
29
4
15
3
31
17
5
26
22
26
2
B
T
C
I
A
J
Page
SAMSUNG TECHWIN
40
SME
24mm SME Tape Feeder - Total
NO. LEVEL PART NO. PART NAME Q'TY TYPE IT Non-IT Reference
1 S70000088A SPROCKET SHAFT 1 ○○
2 S73000001A SPROCKET WASHER 2 ○○
3 S70000089A DROP GEAR WASHER 2 1 ○○
4 S70000090A SENSOR ADJUST CAM 1 ○○
5 S70000091A TAPE GUIDE FIX BOLT 1 ○○
6 J70660008C T_LINK1 SHAFT1 1 ○○
7 J70660001B T_LINK4 SHAFT1 1 ○○
8 S70000092A TOGGLE SPRING 1 ○○
9 S72000044A MAIN BOARD COVER 1 ○○
10 S70000093A DRIVING PART COVER 1 ○○
11 J7066079A REEL PLATE SHAFT 1 ○○
12 S70000095A TAPE GUIDE CUSHION SPRING 1 ○○
13 S70000100A VINYL GUIDE ROLLER SHAFT_24 3 ○○
14 J70652728A LOCKER LINK POST 1 ○○
15 J70652717A LOCKER SLOT PIN 1 ○○
16 J7066140A LOCKER SPRING 1 ○○
17 S70000099A TAPE GUIDE SHAFT_24 1 ○○
18 S72000047A VINYL GUIDE ROLLER_24 3 ○○
19 S71000042A VINYL ROLLER PROTECTOR 24 2 ○○
20 S70000101A VINYL GUIDE ROLLER SHAFT BOLT 3 ○○
21 S66020001A TIMMING BELT 1 ○○
22 S66010001A BEARING 1 ○○
23 S66010002A BEARING 1 ○○
24 S60050001A BHCS 13 ○○
25 S60050002A BHCS 2 ○○
26 S60050003A BHCS 3 ○○
27 S60050005A BHCS 2 ○○
