Page SAMSUNG TECHWIN 53 SME 24 mm SME Tape Feeder - Sub NO. LEVEL P ART NO. P ART NAME Q'TY TYPE IT Non-IT Reference P S90000 061A HANDL E ASSY 1 ○○ 1 S 72000034A FEEDER HA NDLE 1 ○○ 2 S 72000035A CONTROL BOARD COVE…
Page
SAMSUNG TECHWIN
52
SME
24mm SME Tape Feeder - Sub
NO. LEVEL PART NO. PART NAME Q'TY TYPE IT Non-IT Reference
8 S91000007A LIMIT SWITCH CABLE ASSY 1 ○○
9 J90600366B IT SLAVE PCB ASSY 1 ○ X
10 S60060004A FHCS 7 ○○
11 S60060002A FHCS 2 ○○
12 S60050001A BHCS 2 ○ X
13 S60050003A BHCS 2 ○○
14 S60250001A NUT 2 ○○
15 S61190002A SUPPORT 2 ○ X
16 S60710003A SNAP RING 2 ○○
O S90000056A FEEDER CLAMP ASSY 1 ○○
1 J90651524A CLAMP LEVER ASSY 1 ○○
2 S90000057A T_LINK ASSY 1 ○○
2-1 S90000058A T_LINK2 ASSY 1 ○○
2-2 J70650996B T_LINK1 1 ○○
2-3 J70660007C T_LINK1 SHAFT2 1 ○○
2-4 J70652737A T_LINK3 1 ○○
2-5 J70660002C T_LINK2 SHAFT 2 1 ○○
2-6 J70652736A T_LINK4 1 ○○
2-7 J70660029B T_LINK3 SHAFT1 1 ○○
2-8 S70000084A T_LINK5 1 ○○
2-9 J70652727A T_LINK4 PIN 1 ○○
2-10 S60710003A SNAP RING 1 ○○
2-11 S60710002A SNAP RING 3 ○○
3 S70000083A T_LINK5 SHAFT 1 1 ○○
4 S60710004A SNAP RING 1 ○○
Page
SAMSUNG TECHWIN
53
SME
24mm SME Tape Feeder - Sub
NO. LEVEL PART NO. PART NAME Q'TY TYPE IT Non-IT Reference
P S90000061A HANDLE ASSY 1 ○○
1 S72000034A FEEDER HANDLE 1 ○○
2 S72000035A CONTROL BOARD COVER 1 ○○
3 S72000036A CONTROL SWITCH COVER 1 ○○
4 S72000037A SPLICING D/T HOLDER 1 ○○
5 S91000003A SWITCH BOARD ASSY 1 ○○
6 S91000004A SWITCH BOARD CABLE ASSY 1 ○○
7 S72000051A FND GLASS 1 ○○
8 S91000005A IT LED CABLE ASSY 1 ○ X
9 S91000010A SPLICE_BOARD_ASSY 1 ○○
10 S91000006A SPLICING SENSOR CABLE ASSY 1 ○○
11 S72000040A SPLICING GUIDE_24 1 ○○
12 S60060004A FHCS 6 ○○
13 S60050001A BHCS 2 ○○
Q J90651884A 24mm REEL ARM PLATE ASSY 1 ○○
R J91672414A PROBE CABLE ASSY-NONIT 1 X ○
S S91000008A IT BOARD IF CABLE ASSY 1 ○ X
T S90000010A DROP GEAR ASSY 1 ○○
Page
SAMSUNG TECHWIN
54
SME

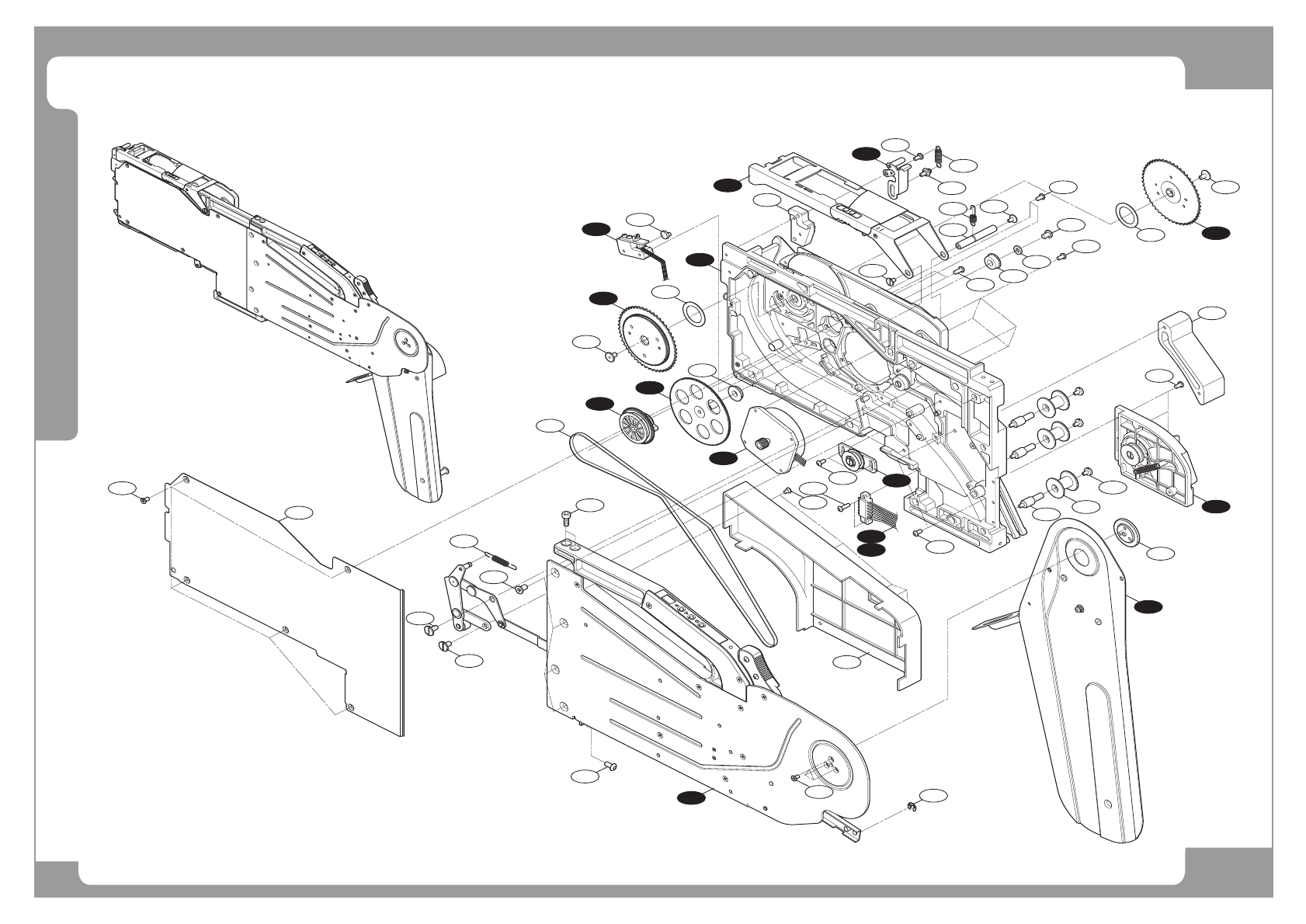

32, 44, 56mm SME Tape Feeder - Total
9
26
29
26
18
33
32
13
27
F
T
Q
19
30
26
5
30
26
E
10
17
12
25
2
1
20
15
8
39
D
K
R
S
N
20
7
6
30
21
31
3
22
14
16
11
5
26
4
24
28
1
B
U
C
I
A
J
