Page SAMSUNG TECHWIN 62 SME 32 , 44 , 56 mm SME Tape Feeder - Sub (6) 8 9 6 2 11 3 4 11 10 1 7 5 1 4 3 P
Page
SAMSUNG TECHWIN
61
SME

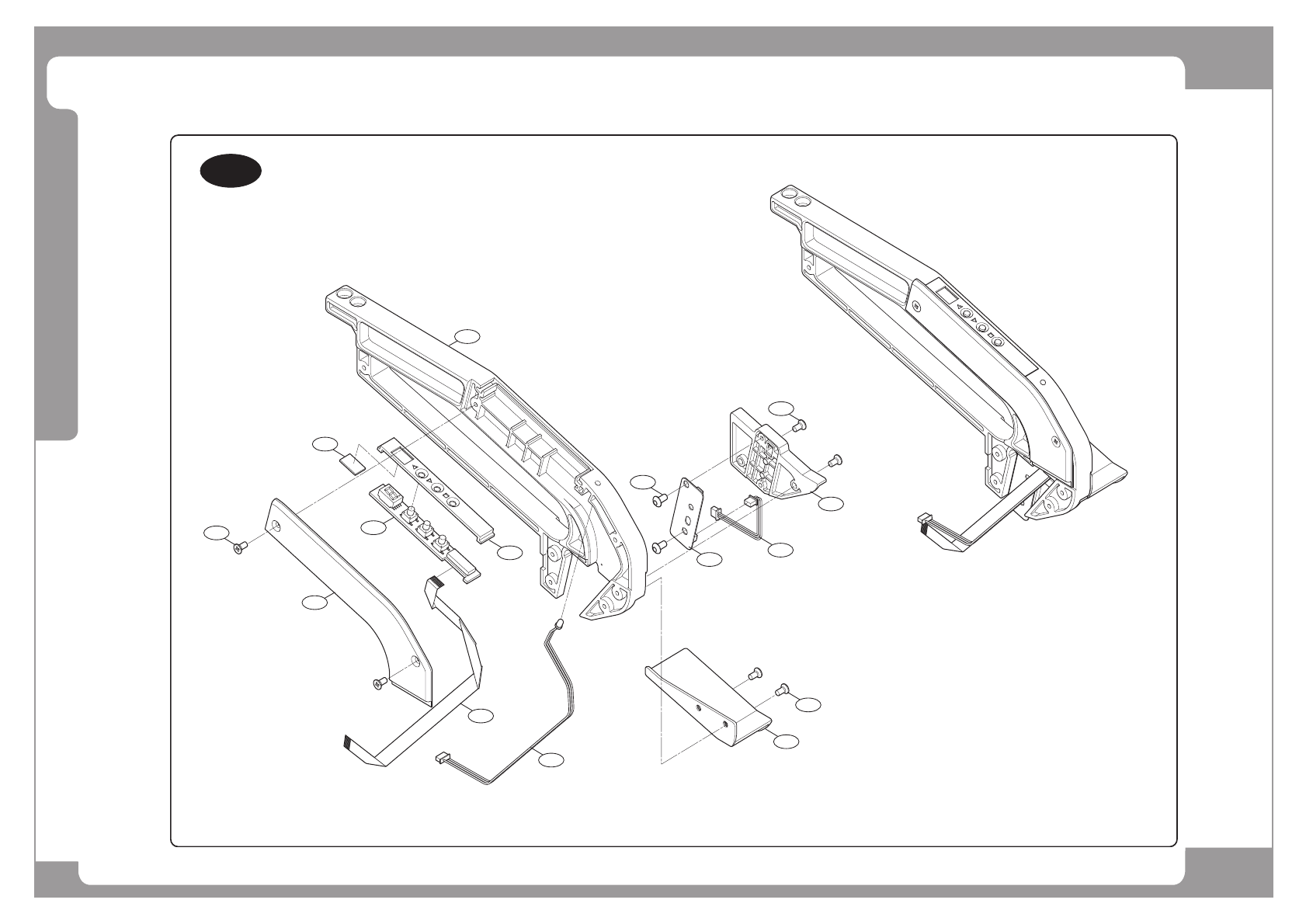

32, 44, 56mm SME Tape Feeder - Sub (5)
1
6
8
10
12
11
4
9
3
5
2
7
13
12
12
O
Page
SAMSUNG TECHWIN
62
SME

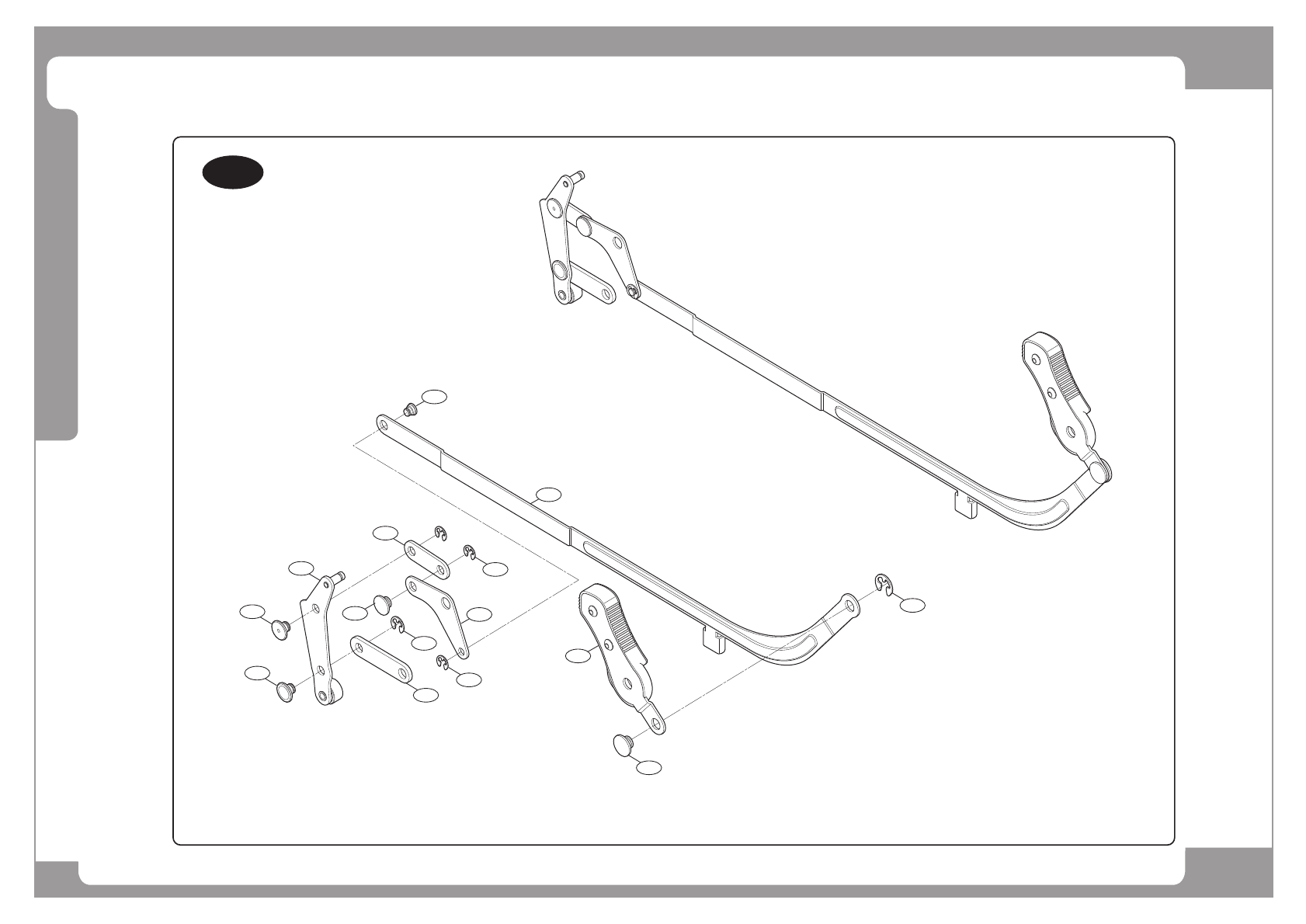

32, 44, 56mm SME Tape Feeder - Sub (6)
8
9
6
2
11
3
4
11
10
1
7
5
1
4
3
P
Page
SAMSUNG TECHWIN
63
SME
32, 44, 56mm SME Tape Feeder - Sub (6)
NO. LEVEL PART NO. PART NAME
Q'TY
TYPE IT Non-IT Reference
32mm 44mm 56mm
A S90000004A MAIN FRAME ASSY 1 0 0 ○○
S90000005A MAIN FRAME ASSY 0 1 0 ○○
S90000006A MAIN FRAME ASSY 0 0 1 ○○
1 J70650978C INSTALL GUIDE 1 1 1 ○○
2 S70000001A BTM LOC' PIN 1 1 1 ○○
3 J70650948B LOCATION FLANGE 1 1 1 ○○
4 S70000002A FRONT GUIDE PIN 1 1 1 ○○
5 S70000003A VINYL MOVING SPRING SHAFT 2 2 2 2 ○○
6 S70000004A IDLE FIX BOLT 3 3 3 ○○
7 S70000005A TENSION ROLLER BOLT 1 1 1 ○○
8 S70000006A TENSION ROLLER WASHER 1 1 1 ○○
9 S71000006A 32~56 MAIN BODY 1 1 1 ○○
10 S71000007A SIDE FRAME TOP_32 1 1 1 ○○
11 S71000008A SIDE FRAME BTM_32 1 1 1 ○○
12 S71000009A SPROCKET BRACKET 1 1 1 ○○
13 S70000017A FEEDER SPACER SHAFT_32 3 0 0 ○○
S70000021A FEEDER SPACER SHAFT_44 0 3 0 ○○
S70000025A FEEDER SPACER SHAFT_56 0 0 3 ○○
14 S71000010A FRAME SPACER 32 1 0 0 ○○
S71000012A FRAME SPACER 44 0 1 0 ○○
S71000014A FRAME SPACER 56 0 0 1 ○○
15 S70000018A TAPE BOTTOM COVER-32 1 0 0 ○○
S70000022A TAPE BOTTOM COVER-44 0 1 0 ○○
S70000026A TAPE BOTTOM COVER-56 0 0 1 ○○
16 S70000019A SPROCKET SHAFT-32 1 0 0 ○○
S70000023A SPROCKET SHAFT-44 0 1 0 ○○
