Page SAMSUNG TECHWIN 95 SM471 E lectric Device Ass’y04 (1/4) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply S upply L T Reference 1 J67091014 A REGULA TOR AR08-T 2-D0M0-J346A 1 2 J6712008A PLUG [PT 1/8 ] 1 3 J32…
Page
SAMSUNG TECHWIN
94
SM471

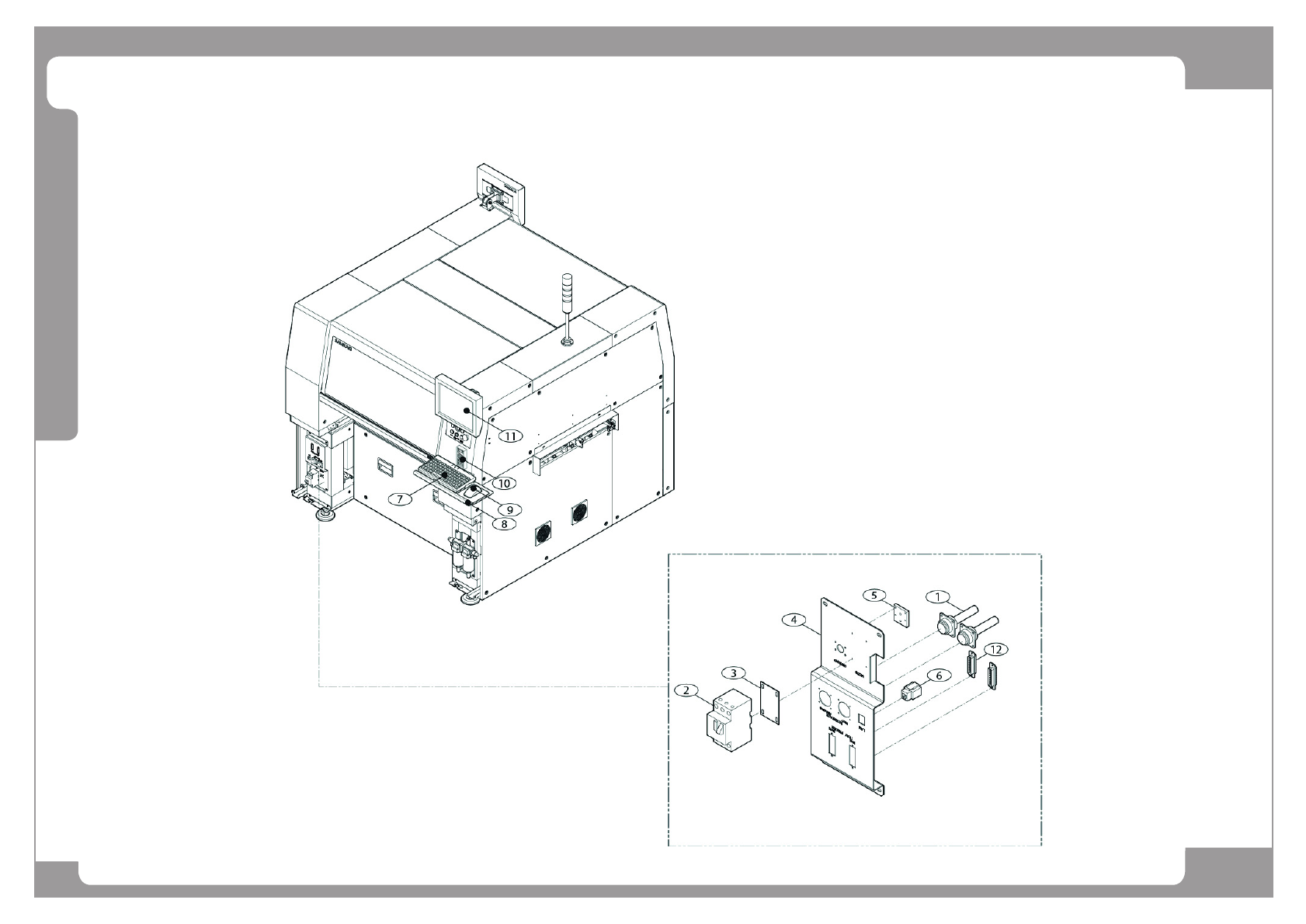

Electric Device Ass’y (1/4)
11
12
13
16
15
14
2
1
9
10
9
7
4
3
8
5
6
17
Page
SAMSUNG TECHWIN
95
SM471
Electric Device Ass’y04 (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J67091014A REGULATOR AR08-T2-D0M0-J346A 1
2 J6712008A PLUG [PT 1/8] 1
3 J32041001A PRESSURE_SENSOR PSA-1(RC1/8) 1
4 J6711147A STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1
5 FC09-001465A BRACKET-AIR F SMU 1
6 J67111183A ELBOW_MINI_FITTING SCL04-01 1
7 J61191172A METER GZ46-K-01-C1 1
8 J61191167A JOINT KQ2F04-01 1
9 J1301187 ELBOW FITTING PL12-04/SQL12-04S-W 2
10 J67090012B REGULATOR 1
11 AM03-013512A MAIN_SWITCH_TB2_CABLE_ASSY 1 J90831067B
12 AM03-010079A
CABLE ASSY-SAFEGUARD_OV_SW_KEY
1 J90831059C
13 FC09-001672A BRACKET-BKT F POWER 1
14 J6309025 FAN[PFC120(FOR 120? FAN)] 2
15 FC15-000943B
COVER-LOWER_SIDE_2_L
1 FC15-000943A
16 J3105010A
COOLING FAN[4715MS-22T-B50]
2
Page
SAMSUNG TECHWIN
96
SM471
Electric Device Ass’y (2/4)
