Page SAMSUNG TECHWIN 99 SM471 E lectric Device Ass’y (3/4) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-000900A ASSY ,BOARD-CA N_CONVEYOR_BOARD_V2.3 1 2 J91741076A CONV_SUB_IF_BOARD…
Page
SAMSUNG TECHWIN
98
SM471

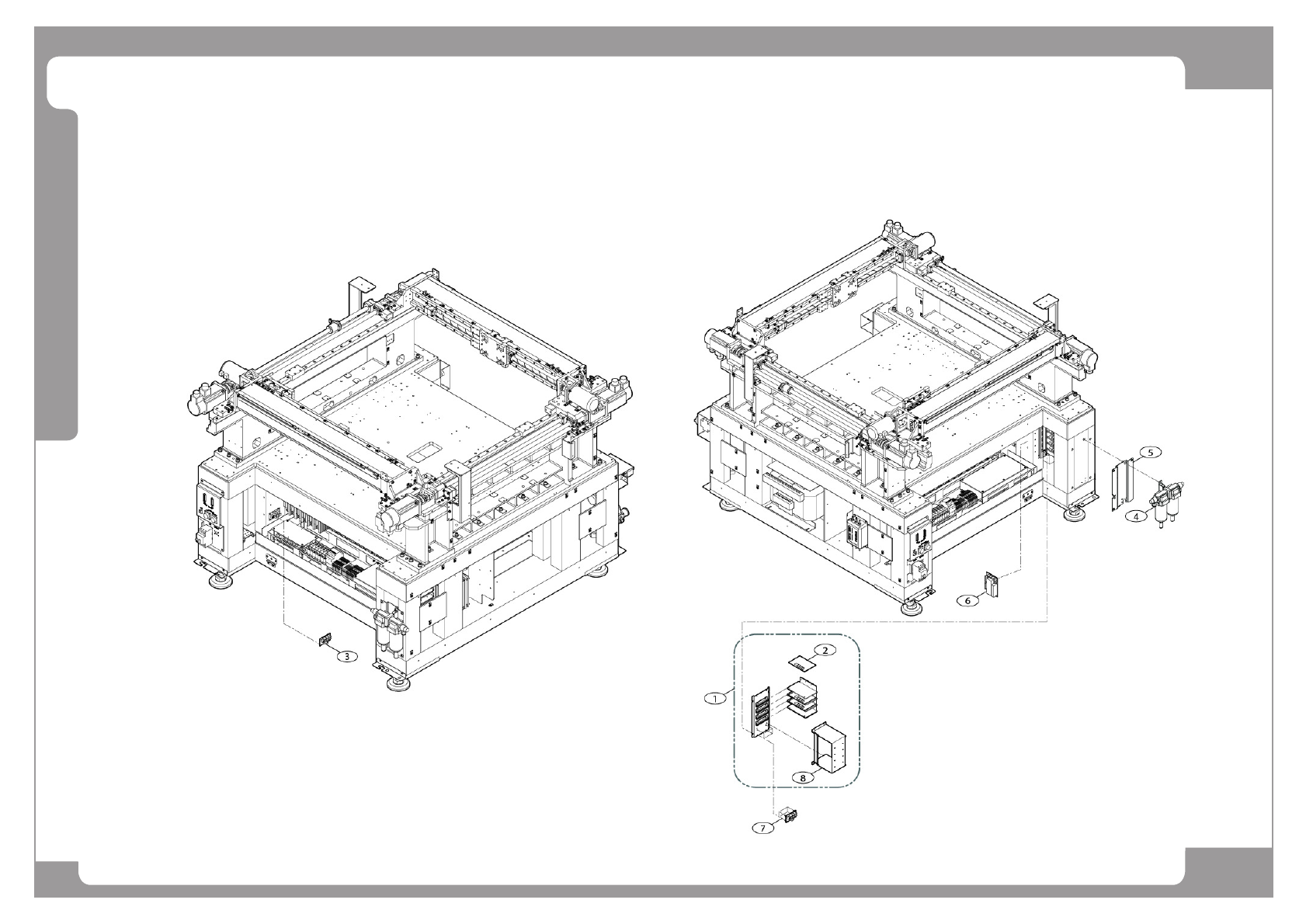

Electric Device Ass’y (3/4)
Page
SAMSUNG TECHWIN
99
SM471
Electric Device Ass’y (3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1
AM03-000900A ASSY,BOARD-CAN_CONVEYOR_BOARD_V2.3
1
2
J91741076A CONV_SUB_IF_BOARD VER 1.0
1
3 J29011001A NOISE_FILTER UF20TBH 1
4 EP23-000012A TRANSFORMER 3PHASE, 5.5KVA 1 J26051012A
5 AM03-005338A
ASSY,BOARD-SM471 AXIS SENSOR BD VER1.0
1
6 J80001112A MONITOR_DISTRIBUTOR NM-V21 1
7 AM06-000359B
ASSY,PCB SMD-SM400_VISION_IF_BD
1 AM06-000359A
8 AM03-000819A
ASSY,BOARD-FEEDER IO BOARD ASSY
1
J91741071A
9
AM03-000900A ASSY,BOARD-CAN_CONVEYOR_BOARD_V2.3
1
J90601030B
10 FC09-001657B
BRACKET-BKT VAC_GEN
1
11 HP11-000058
PUMP-P6010-AK-01-LA52SG
1
12 J67111205A
FITTING SQL10-02S(WHITE)
1
13 J67111203A
FITTING SQL10-03S(WHITE)
1
14 J1301213
PLUG [PT 3/8]
1
15 J67021025A
AIR-VALVE VP544-5D-03-A
1
16 J6712008A
PLUG [PT 1/8]
1
17 FC15-000967A
COVER-COVER PUMP
1 OPTION
18 HP11-000059
PUMP-PUMP KHA400A-301-G1
1 OPTION
19 FC28-000105
NIPPLE-STRAIGHT NIPPLE M3/8-ID9.5;BRASS
1 OPTION
20 J67191083A HOSE_BAND 1 OPTION
21 J3105010A
COOLING FAN[4715MS-22T-B50]
1 OPTION
22 HP06-000250
FITTING-FITTING KQ2VT12-03S;ELBOW
1 OPTION
23 HP06-000234
FITTING-KQ2R08-12;STRAIGHT
1 OPTION
24 J61191171A
JOINT KQ2R04-08
1 OPTION
25 J1300067 1
Page
SAMSUNG TECHWIN
100
SM471
Electric Device Ass’y (4/4)
