Page SAMSUNG TECHWIN 144 SM471 A xis IO Board (3/13) ^4` ^6` ^7` ^5` ^8` ^<` ^:` ^9` ^;`
Page
SAMSUNG TECHWIN
143
SM471
Axis IO Board (2/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1
AM03-005557B CABLE ASSY-FY1_FY2_DRV_COMMAND
2 SM471-VM003
2 AM03-008735A CABLE ASSY-FY1_MOTOR_PWR_80 1 SM471-MD005_80
3 AM03-008736A CABLE ASSY-FY1_MOTOR_ENC_80 1 SM471-MD006_80
4
AM03-008736A CABLE ASSY-FY1_MOTOR_ENC_80
1 SM471_MD028
5 AM03-005493A CABLE ASSY-FY1_FY2_SERVO_POWER 2 SM471_PW018
6 AM03-008744A CABLE ASSY-FY2_MOTOR_PWR_80 1 SM471-MD007_80
7 AM03-008739A CABLE ASSY-FY2_MOTOR_ENC_80 1 SM471-MD008_80
8 J90831185A FY2_REGEN_RESISTOR_CABLE_ASSY 1 SM33_MD029
9 AM03-008745A CABLE ASSY-RY1_MOTOR_PWR_80 1 SM471-MD009_80
10 AM03-008746A CABLE ASSY-RY1_MOTOR_ENC_80 1 SM471-MD010_80
11 AM03-008747A CABLE ASSY-RY2_MOTOR_PWR_80 1 SM471-MD011_80
12 AM03-008748A CABLE ASSY-RY2_MOTOR_ENC_80 1 SM471-MD012_80
13
AM03-005558B CABLE ASSY-RY1_RY2_DRV_COMMAND
2 SM471-VM004
14 AM03-005494A CABLE ASSY-RY1_RY2_SERVO_POWER 2 SM471_PW019
15 J90831188A RY2_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD032
16
AM03-008746A CABLE ASSY-RY1_MOTOR_ENC_80
1 SM471-MD031
Page
SAMSUNG TECHWIN
144
SM471
Axis IO Board (3/13)

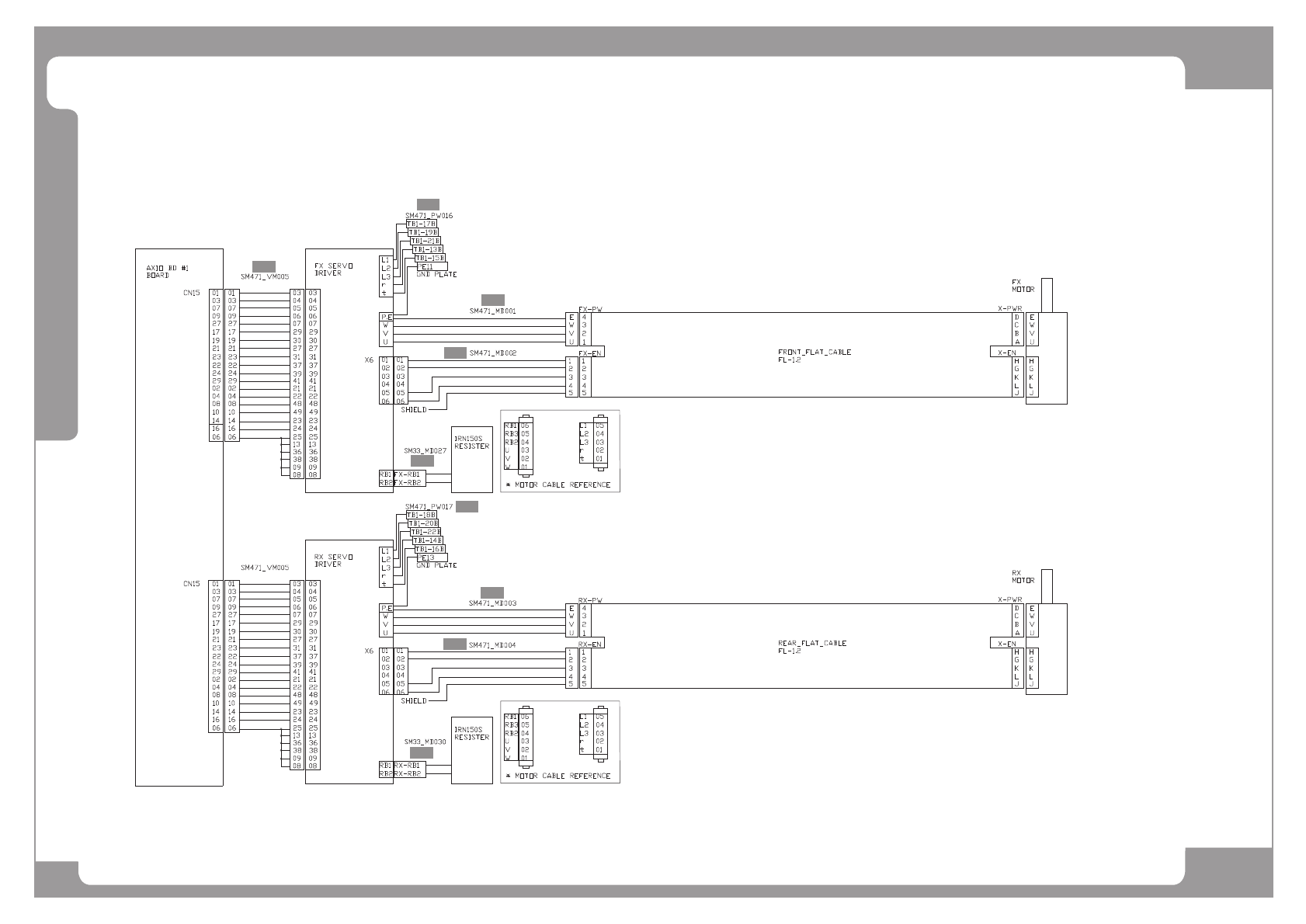

^4`
^6`
^7`
^5`
^8`
^<`
^:`
^9`
^;`
Page
SAMSUNG TECHWIN
145
SM471
Axis IO Board (3/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1
AM03-005559B CABLE ASSY-FX_RX_DRV_COMMAND
2 SM471-VM005
2 AM03-005491A CABLE ASSY-FX,FS SERVO POWER 1 SM471_PW016
3 AM03-008741A CABLE ASSY-FX_MOTOR_PWR 1 SM471_MD001
4 AM03-008740A CABLE ASSY-FX_MOTOR_ENC 1 SM471_MD002
5 J90831183A FX_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD027
6 J90831186A RX_REGEN_RESISTOR_CABLE_ASSY 1 SM33_MD030
7 AM03-008742A CABLE ASSY-RX_MOTOR_PWR 1 SM471_MD003
8 AM03-008743A CABLE ASSY-RX_MOTOR_ENC 1 SM471_MD004
9 AM03-005492A CABLE ASSY-RX,RS SERVO POWER 1 SM471_PW017
