Page SAMSUNG TECHWIN 147 SM471 A xis IO Board (4/13) NO. Lev . P ART NO. P ART NAME Q'TY Old No. S upply Supply L T Reference 1 AM03-005573B CABLE ASSY -MS1_WS1_DRV_COMMAN 2 SM471_VM013 2 AM03-010080A SHUTTLE_ WIDTH…
Page
SAMSUNG TECHWIN
146
SM471

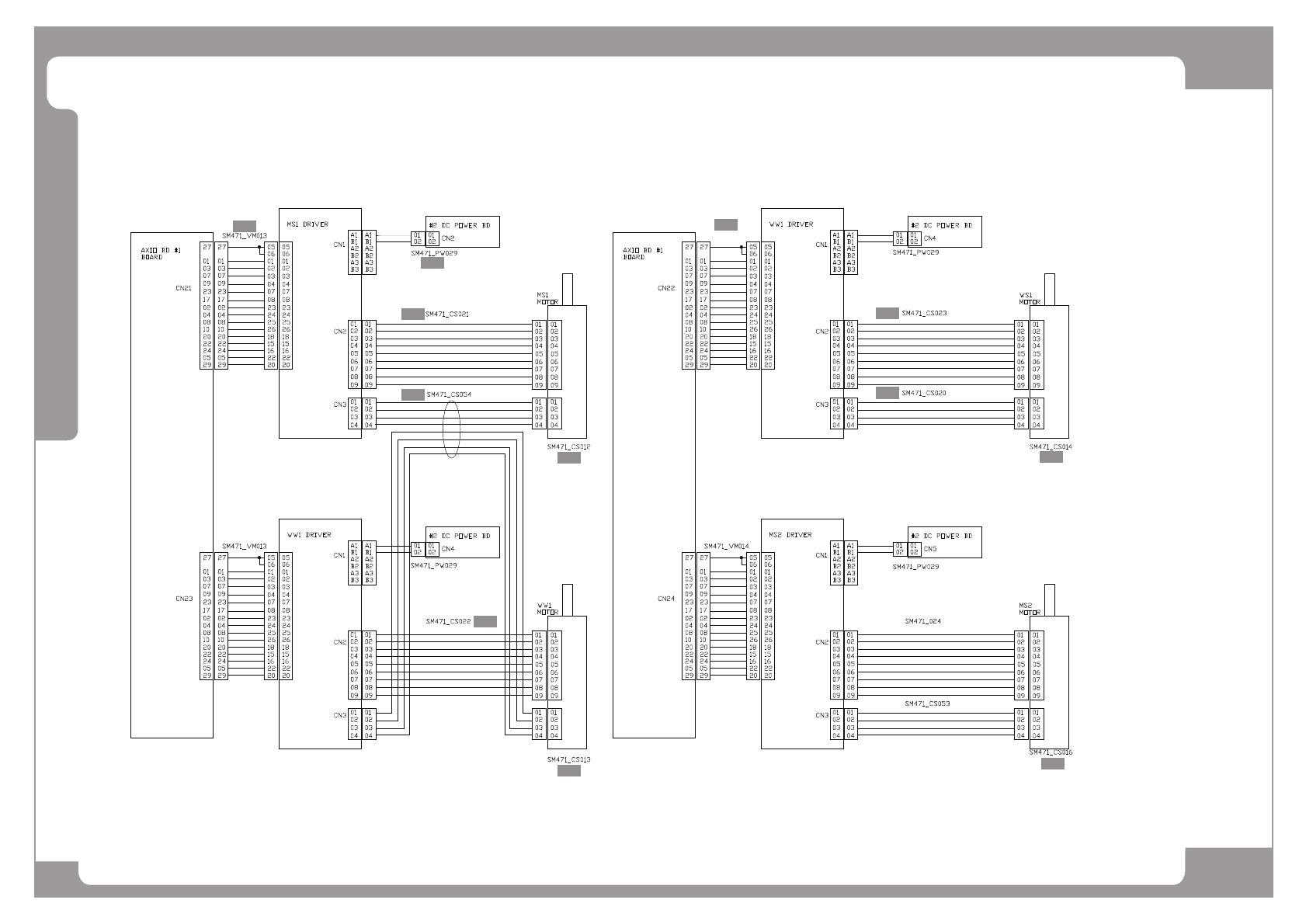

Axis IO Board (4/13)
[1 ]
[3 ]
[2 ]
[4 ]
[7 ]
[6 ]
[1 0 ]
[1 1 ]
[8 ]
[9 ]
[1 2 ]
[5 ]
SM 471-V M 0014
Page
SAMSUNG TECHWIN
147
SM471
Axis IO Board (4/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1
AM03-005573B CABLE ASSY-MS1_WS1_DRV_COMMAN
2 SM471_VM013
2 AM03-010080A SHUTTLE_WIDTH_PW_CABLE_ASSY 4 J90831091C SM471_PW029
3 AM03-008897A CABLE ASSY-MS1_MOTOR_ENC 1 SM471_CS021
4 AM03-008896A CABLE ASSY-MS1_WW1_MOT_PW 1 SM471_CS054
5 J90831203A CABLE ASSY-MS2_SERVO_MOTOR 1 SM33-CS016
6 AM03-008899A CABLE ASSY-WW1_MOTOR_ENC 1 SM471_CS022
7 J90831199A CABLE ASSY-MS1_SERVO_MOTOR 1 SM33-CS012
8 AM03-008900A CABLE ASSY-WS1_MOTOR_ENC 1 SM471_CS023
9 AM03-008898A CABLE ASSY-WS1_MOTOR_PW 1 SM471_CS020
10 AM03-001349A CABLE ASSY-WS1_SERVO_MOTOR 1 SM33_CS013
11
AM03-005574B CABLE ASSY-WW1_MS2_DRV_COMMAND
2 SM471_VM014
12 J90831201A CABLE ASSY-WW1_SERVO_MOTOR 1 SM33-CS014
Page
SAMSUNG TECHWIN
148
SM471

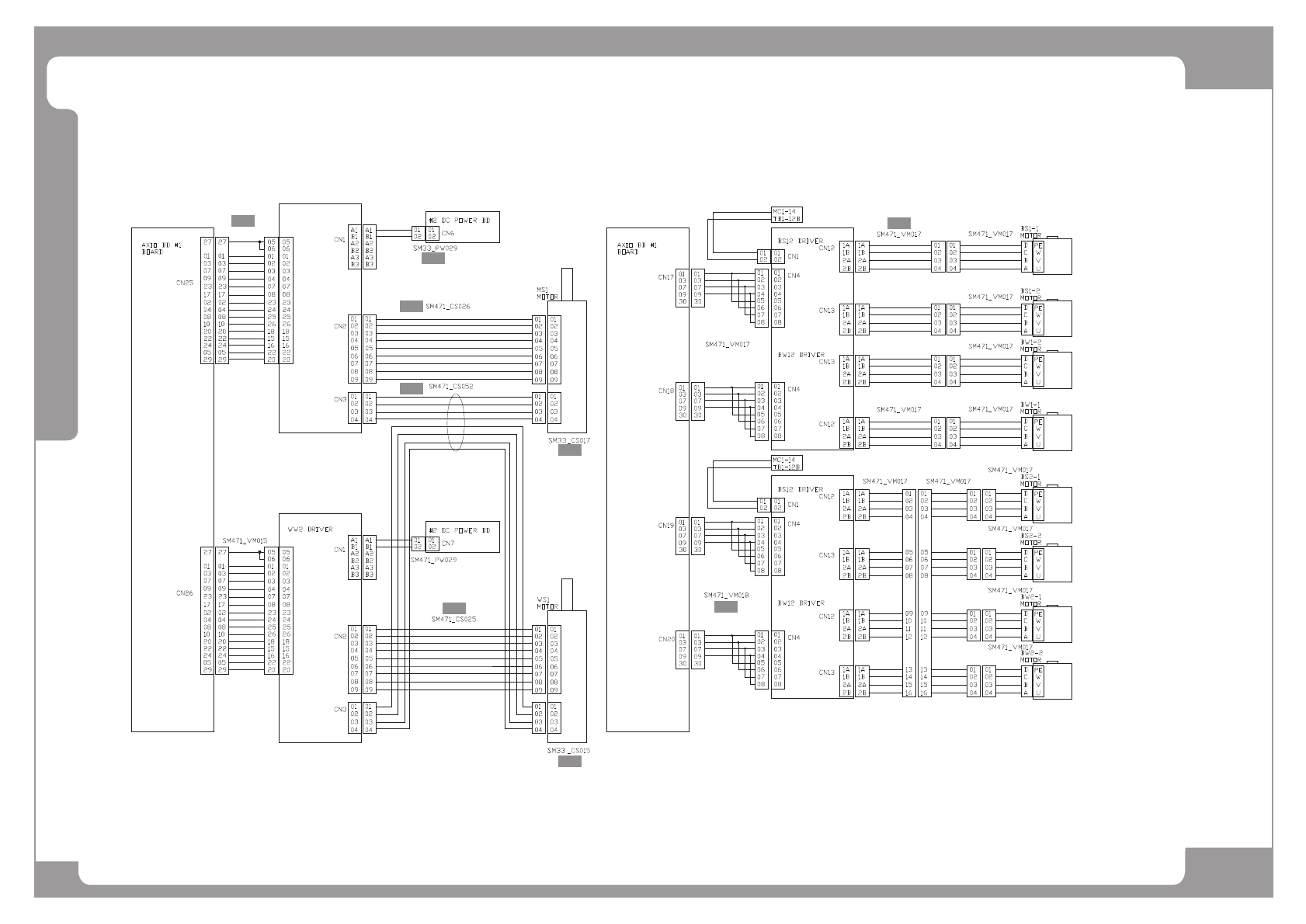

Axis IO Board (5/13)
[1 ]
[2 ]
[3 ]
[4 ]
[5 ]
[6 ]
[7 ]
[9 ]
[8 ]
SM 471-V M 0015
