Page SAMSUNG TECHWIN 177 SM471 S afety Control Board Interface (1/4) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005506 A CABLE ASSY - GENERAL_PW_RELA Y 1 SM4 71-PW032 2 AM03-0055 …
Page
SAMSUNG TECHWIN
176
SM471
Safety Control Board Interface (1/4)
[1 ]
[2 ]
[3 ]
[4 ]
[5 ]
SM 48-SC 002
Page
SAMSUNG TECHWIN
177
SM471
Safety Control Board Interface (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005506A CABLE ASSY-GENERAL_PW_RELAY 1 SM471-PW032
2 AM03-005504A CABLE ASSY-PS1_PS2_SACO_T6L 1 SM471-PW127
3 AM03-005507A CABLE ASSY-FEEDER_PW_RELAY 1 SM471-PW033
4 AM03-006965A CABLE ASSY-F_OP_PANEL_IF 1 SM48-SC001
5
AM03-006966A CABLE ASSY-R_OP_PANEL_IF
1 SM471-SC102-1
Page
SAMSUNG TECHWIN
178
SM471

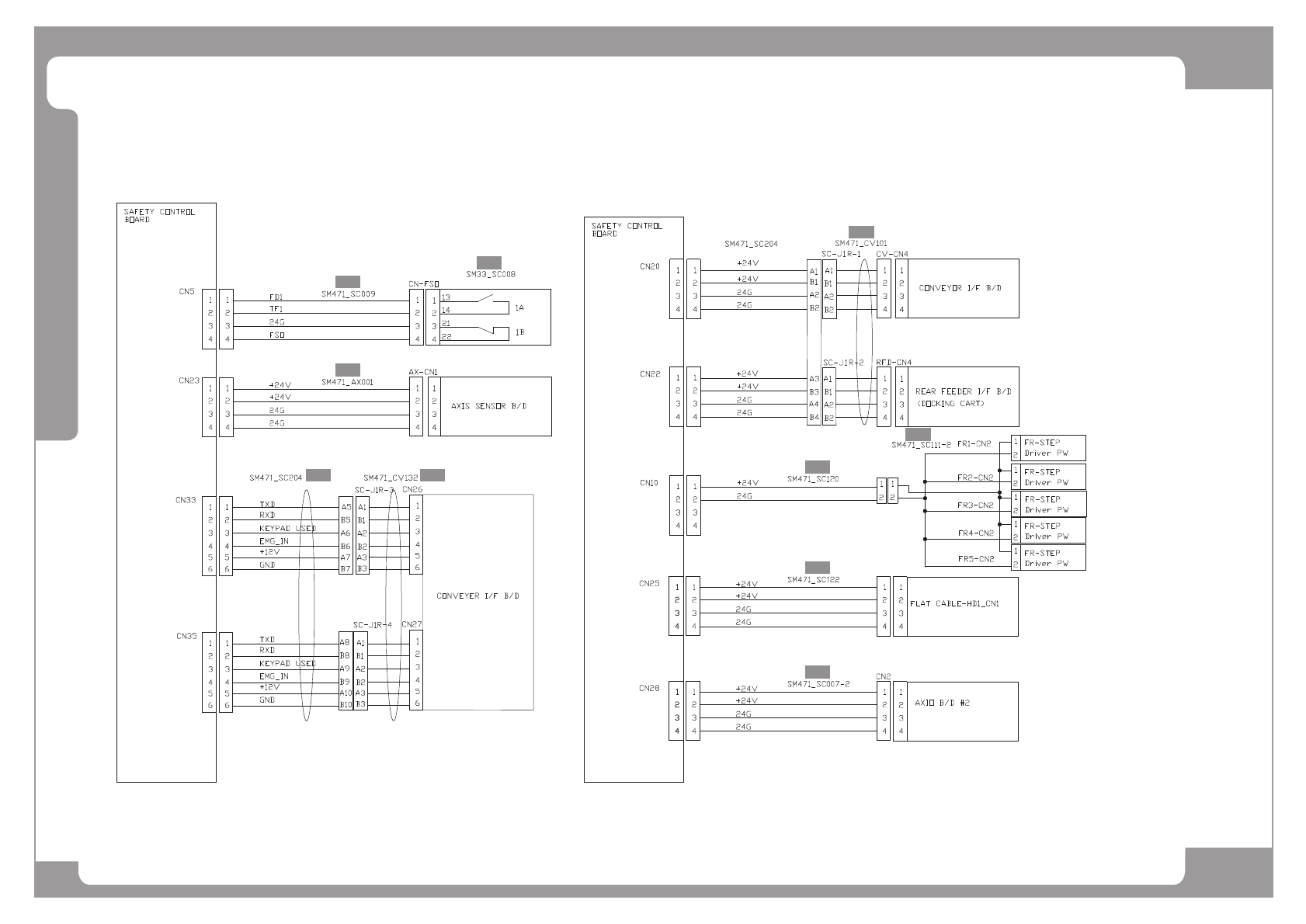

Safety Control Board Interface (2/4)
^4`
^6`
^8`
^9`
^7`
^5`
^:`
^43`
^<`
^;`
