Page SAMSUNG TECHWIN 183 SM471 S afety Control Board Interface (4/4) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005527 A CABLE ASSY - CONV_SUB_IF-EXT 1 SM471 -SC105-1 2 AM03-00552…
Page
SAMSUNG TECHWIN
182
SM471

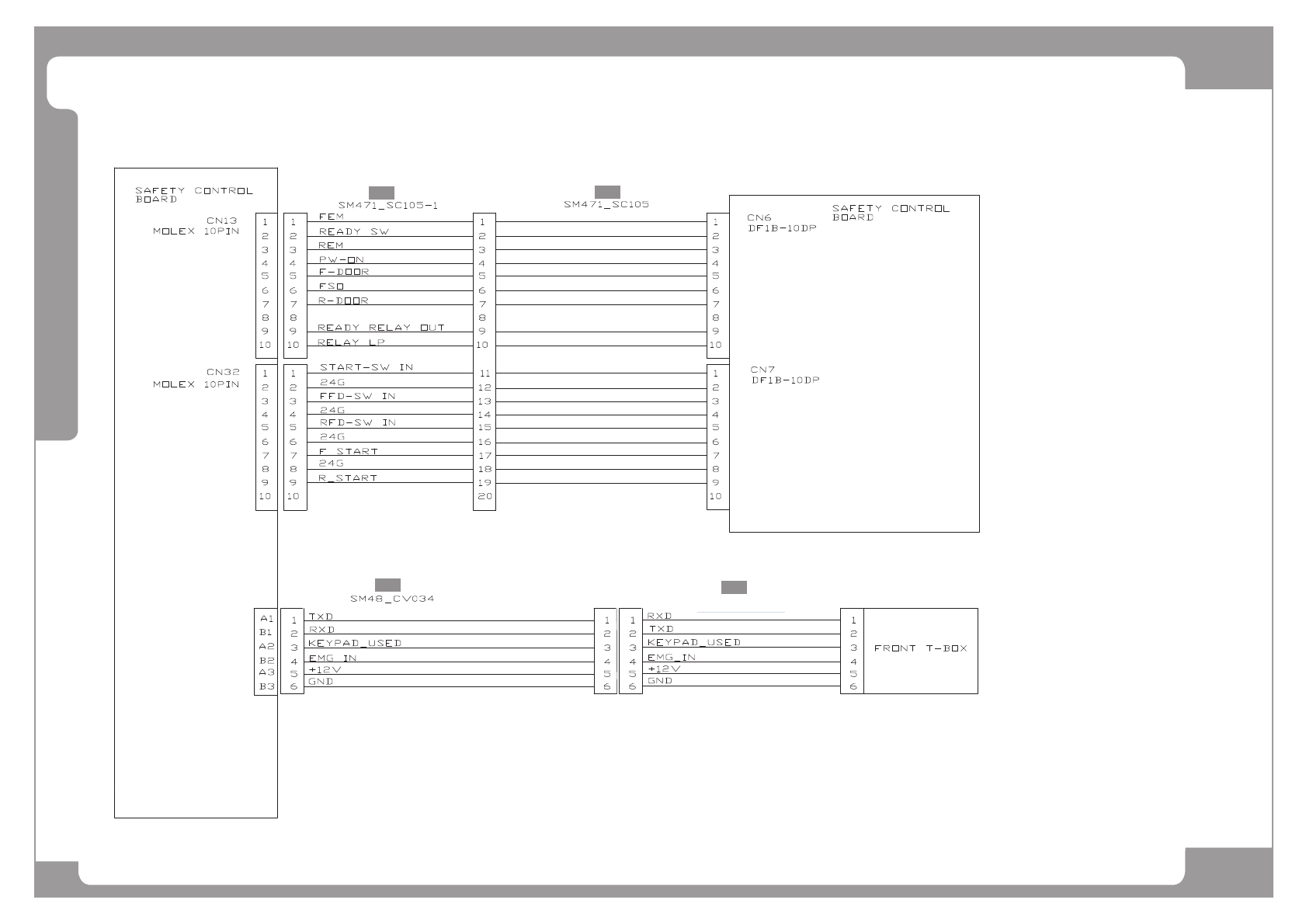

Safety Control Board Interface (4/4)
[2 ]
[3 ]
[1 ]
[4 ]
SM 471_M D 001
Page
SAMSUNG TECHWIN
183
SM471
Safety Control Board Interface (4/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005527A CABLE ASSY-CONV_SUB_IF-EXT 1 SM471-SC105-1
2 AM03-005526A CABLE ASSY-CONV_SUB_IF 1 SM471-SC105
3 AM03-006880A CABLE ASSY-SACO_F_TBOX 1 SM48-CV034
4
AM03-006965A CABLE ASSY-F_OP_PANEL_IF
1 SM33-CV023-4
Page
SAMSUNG TECHWIN
184
SM471
Electric Circuit Diagram (1/7)
[1]
2
2
2
2
2
2 2
2
2
FACTORY MAIN POWER
(3 /PE 60HZ 200~415VAC)
APPROX. 5KVA)
2
2
[3]
[6]
[8]
[9]
[2]
[4]
[5]
[6]
[3]
[7]
