Page
SAMSUNG TECHWIN
14
SM471

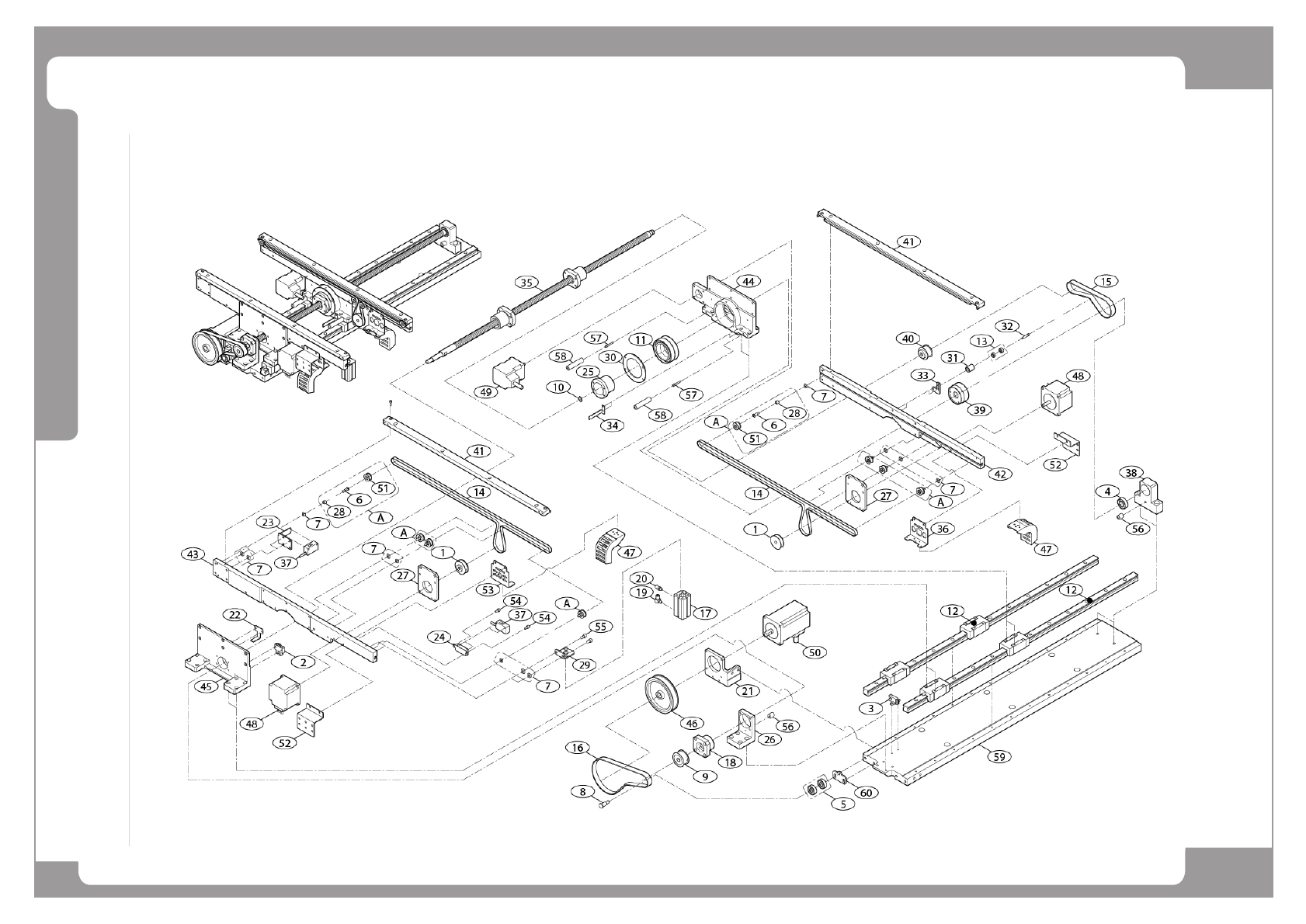

Conveyor Ass'y (1/6)
Page
SAMSUNG TECHWIN
15
SM471
Conveyor Ass'y (1/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J71531009A
ULLEY_B_M J71531009A
2
2 J3212002A PHOTO SENSOR 4
3 J3212004A PHOTO SENSOR 2
4 J1300509
BALL BEARING [6000ZZ]
4
5 J6601109A BALL BEARING[608ZZ] 4
6 J2101818
IDLER SHAFT-S [0135-641105]
6
7 J7053184A SQUARE NUT M4 8
8 J70531028A
TENSION_BEARING_PIN J70531028A
4
9 J71531008A PULLEY_W_MOTOR J71531008A 2
10 J1300517 C-RING [10mm (SHAFT)] 1
11 J66011019A BEARING 6908ZZ 2
12 J66071088A
LM_GUIDE_SHUTTLE SBS15SL-2-K1-728L-N
2
13 J6601134A BEARING[694ZZ] 2
14 J66021008A BELT_SHUTTLE_1650 MAM-5P-1169-6W 2
15 J66021009A
TIMMING_BELT_SW
2
16 J66021010A
TIMMING_BELT_SM
1
17 J66061005A CYLINDER AQ2A12-30D 1
18 J6619031A SUPPORT UNIT[FK-10] 1
19 J1300121 ELBOW FITTING [M-5HLH-4] 1
20 J6711156A HOSE NIPPLE [M-5H-4](D/C?) 1
21 J70531030A SUPPORT_ST_MOTOR J70531030A 1
22 J70531031A SM_HOME_SENSOR_DOG J70531031A 1
23 J70531032A ST_SENSOR_BRACKET_2 J70531032A 1
24 J70531033A ST_SENSOR_BRACKET_1 J70531033A 1
25 J70531036A NUT_HOUSING J70531036A 1
26 J70531037B MOTOR-BRACKET-SHUTTLE J70531037B 1
27 J70531038A MOTOR_BRACKET J70531038A 2
Page
SAMSUNG TECHWIN
16
SM471
Conveyor Ass'y (1/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
28 J70531039A
IDLER_SPACER_45 J70531039A
8 J66191024A
29 J70531043A
BRACKET_SHUTTLE_STP J70531043A
1
30 J70531044A
WD_NUT_BEARING_STOPPER J70531044A
1
31 J70531045A W_TENSION_TUBE J70531045A 1
32 J70531047A W_TENSION_SCREW J70531047A 1
33 J70531048A W_TENSION_PLATE J70531048A 1
34 J70531055A SM_R_DOG J70531055A 1
35 J66061004A BALL_SCREW 2BTK1405-2.6ZZ+721.5LC7T 1
36 J70531072C
CNT_PANEL_FRONT
1
37 J32111003A
PHOTOELECTRIC_SENSOR BYD30-DDT-S
5
38 J71531015B
SUPPORT_UNIT_ST_TAIL
1
39 J71531016A
PULLEY_SHUTTLE_WIDTH J71531016A
1
40 J71531017A
PULLEY_S_W_NUT J71531017A
1
41 J71531018A
ENTRY_PCB_GUIDE_1650 J71531018A
2
42 J71531020A ENTRY_FRAME_00_1650 J71531020A 1
43 J71531019A ENTRY_FRAME_01_1650 J71531019A 1
44 J71531021C BLOCK_SHUTTLE_REAR_LEFT 1
45 J71531022A BLOCK_SHUTTLE_FRONT J71531022A 1
46 J71531025A PULLEY_SHUTTLE_MOTOR J71531025A 1
47 EP03-000034
CABLE_VEYOR
2 J65041002A/ J65041002B
48 J31041014A STEP_MOTOR 2S56Q-01842SR2 1
49 EP08-000203 SERVO_MOTOR_PB PBM423DXC24 1 J31081004A
50 EP08-000204 SERVO_MOTOR_PB PBM565DXC26 1 J31081005A
51 J72531001A IDLER_2 J72531001A 8
