Page SAMSUNG TECHWIN 23 SM471 C onveyor Ass'y (3/6) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J70531024 A BRACKET_T AIL J70531024A 4 2 J72531002 A BUSH_T AIL J72531002A 4 3 J7153…
Page
SAMSUNG TECHWIN
22
SM471

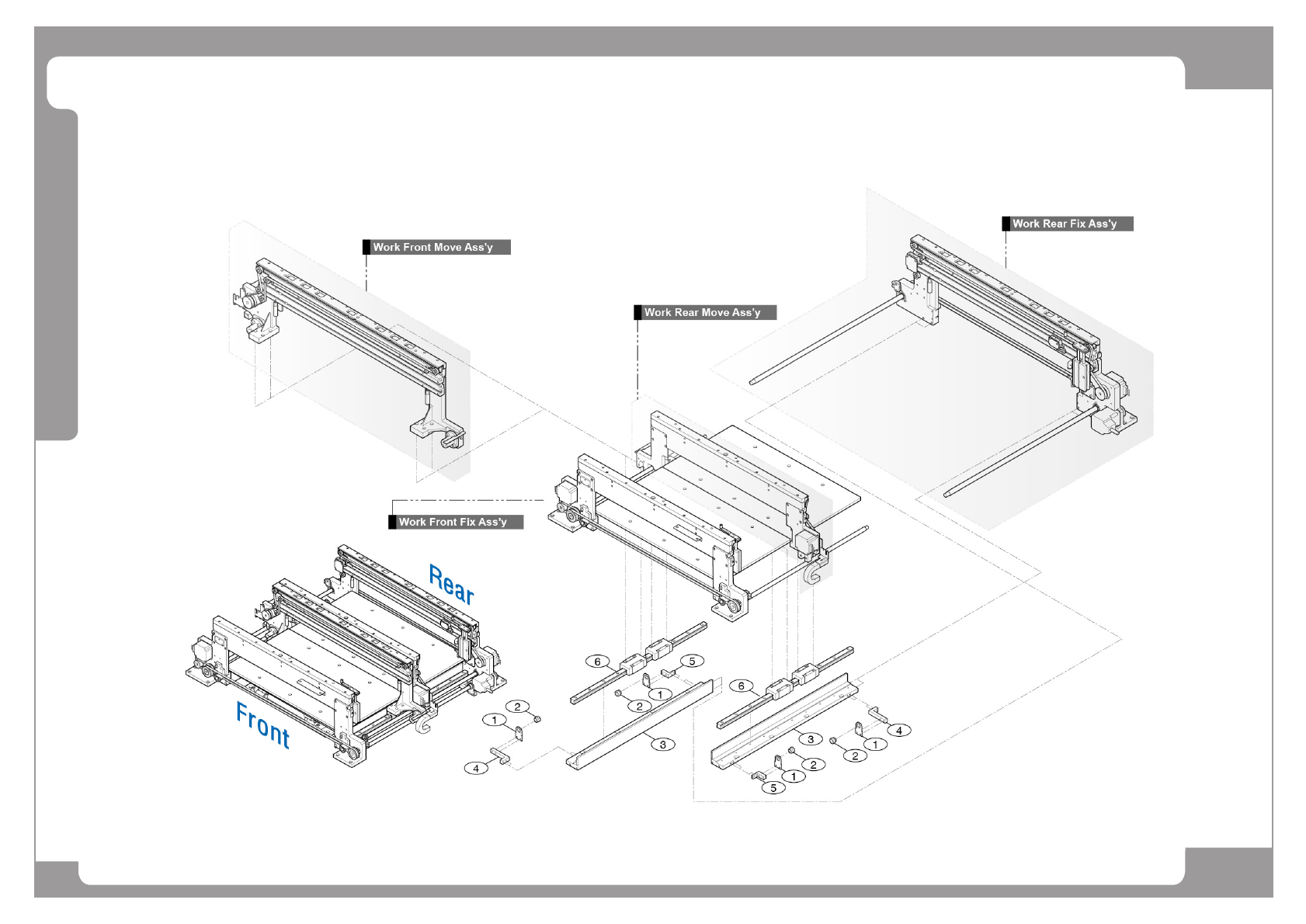

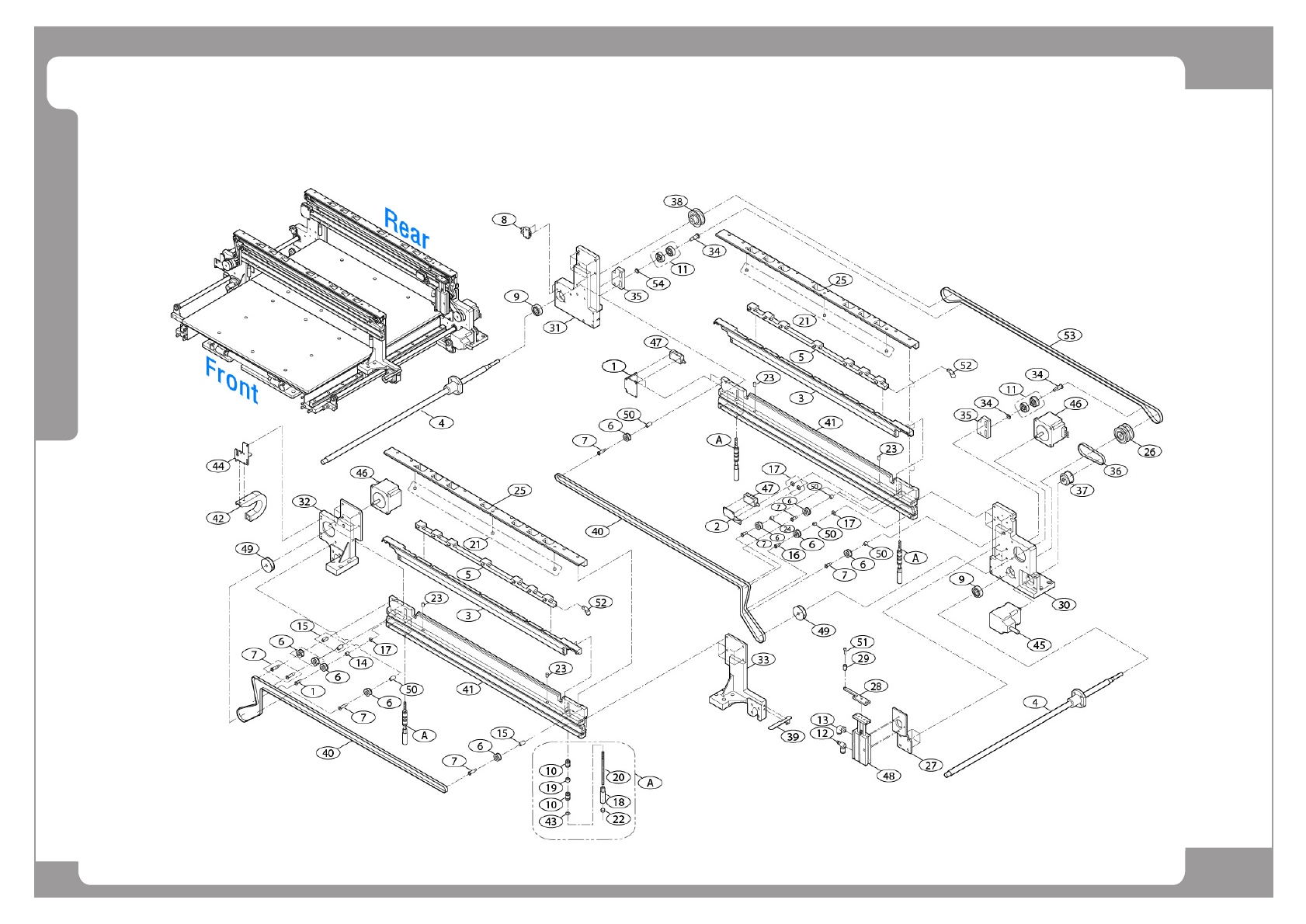

Conveyor Ass'y (3/6)
Page
SAMSUNG TECHWIN
23
SM471
Conveyor Ass'y (3/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70531024A BRACKET_TAIL J70531024A 4
2 J72531002A BUSH_TAIL J72531002A 4
3 J71531010C LM_BASE 2
4 J71531006B
SUPPORT_BRACKET_L
2
5 J71531005B
SUPPORT_BRACKET_S
2
6 J66071087A
LM_GUIDE_WORK SBS15SL-2-K1-570L-N
2
Page
SAMSUNG TECHWIN
24
SM471
Conveyor Ass'y (4/6)
