Page SAMSUNG TECHWIN 29 SM471 C onveyor Ass'y (5/6) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J70531022A BRACKET_WORK_SENSOR_2 J7 0531022A 2 2 J70531023A BRACKET_WORK_SENSOR_1 J7…
Page
SAMSUNG TECHWIN
28
SM471

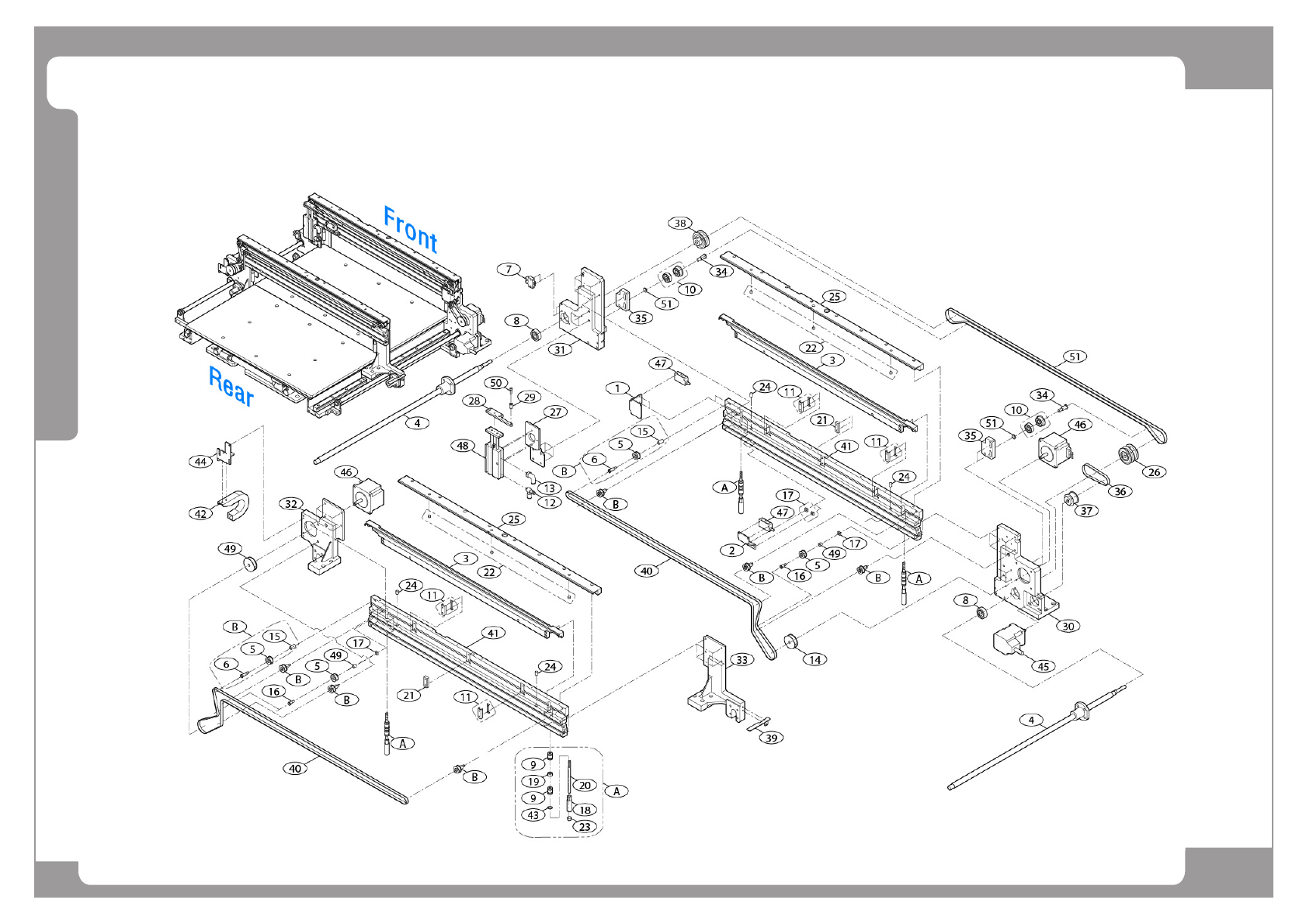

Conveyor Ass'y (5/6)
Page
SAMSUNG TECHWIN
29
SM471
Conveyor Ass'y (5/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70531022A BRACKET_WORK_SENSOR_2 J70531022A 2
2 J70531023A BRACKET_WORK_SENSOR_1 J70531023A 1
3 J71531045B CLAMP_FRONT_FRAME 2
4 J66141001C LEAD_SCREW 2 J66141001B
5 J72531001A IDLER_2 J72531001A 6
6 J70531021A
IDLER_SHAFT_M J70531021A
2
7 J3212002A PHOTO SENSOR 4
8 J1300509
BALL BEARING [6000ZZ]
2
9 J66011035A BALL_BUSH LMU5 4
10 J6601126A BALL BEARING[F608ZZ] 4
11 J6607016A LM SLIDE 4
12 J6703007A THROTTLE VALVE(ELBOW) 2
13 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4 J6711001A
14 J71531009A
ULLEY_B_M J71531009A
1
15 J70531019A
IDLER_SPACER_13 J70531019A
4 J7053048A
16 J2101818
IDLER SHAFT-S [0135-641105]
8
17 J7053184A SQUARE NUT M4 8
18 J7153010B ADJUST SHAFT [J7153010B] 8
19 J7153033A BUSH SPACER 2
20 J7153034A CLAMP SHAFT 8
21 J7153036A SLIDE GUIDE 2
22 J7153373A FIDUCIAL DISK[J7153373A] 6
23 J7253008A STOPPER 8
24 J7253009B STOPPER 2 [J7253009B] 4
25 J70531017B
PCB_GUIDE_FC
2
26 J71531007A PULLEY_WIDTH_MOTOR J71531007A 1
27 FC09-002822A
BRACKET-STOPPER_WORK_REAR_SMC;SPCC
1 J70531015A
Page
SAMSUNG TECHWIN
30
SM471
Conveyor Ass'y (5/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
28 FC30-001359A
PLATE-STOPPER_TOP_SMC-CYL;SS400
1 J70531050A
29 J70531029B STOPPER_POST 1 J70531029A
30 J70531014B SUPPORT_FIX_RAIL_LEFT 1 J70531014A
31 J70531013A SUPPORT_FIX_RAIL_RIGHT J70531013A 1
32 J70531012C SUPPORT_MOVE_RAIL_TL 1 J70531012B
33 J70531011A SUPPORT_MOVE_RAIL_TR J70531011A 1
34 J70531028A TENSION_BEARING_PIN J70531028A 2
35 J70531027A TENSION_BRACKET J70531027A 2
36 J66021007A TIMMING_BELT_WIDTH 180-3GT-9 1
37 J71531008A PULLEY_W_MOTOR J71531008A 1
38 J71531024A WIDTH_PULLEY J71531024A 8
39 J70531066A WORK_WIDTH_SENSOR_DOG J70531066A 1
40 J66021006A BELT_WORK MAM-5P-1550-6W 2
41 J71531013B
WORK_FRONT_FRAME
2
42 EP03-000170 CABLE_VEYOR HSP0130-1B-18R-28LINK 1 J65041004A
43 J6073010136H C-RING DIA11(HOLE) 8 J6073000036H
44 J70531103A CV_SUPPORT_M_RAIL J70531103A 1
45 EP08-000203 SERVO_MOTOR_PB PBM423DXC24 1 J31081004A
46 J31041014A STEP_MOTOR 2S56Q-01842SR2 1
47 J3211048A PHOTO SENSOR[E3S-LS3N] 2
48 HP03-000094 CYLINDER-CXSJM10-30-A93 1 J6701018B
49 2
50 1
51 J70531027A
TENSION_BRACKET J70531027A
2
