Page SAMSUNG TECHWIN 38 SM471 B ase Frame Ass’y 1 2 2 9 3 4 5 7 6 8 10
Page
SAMSUNG TECHWIN
37
SM471
Backup Table Ass’y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
Page
SAMSUNG TECHWIN
38
SM471

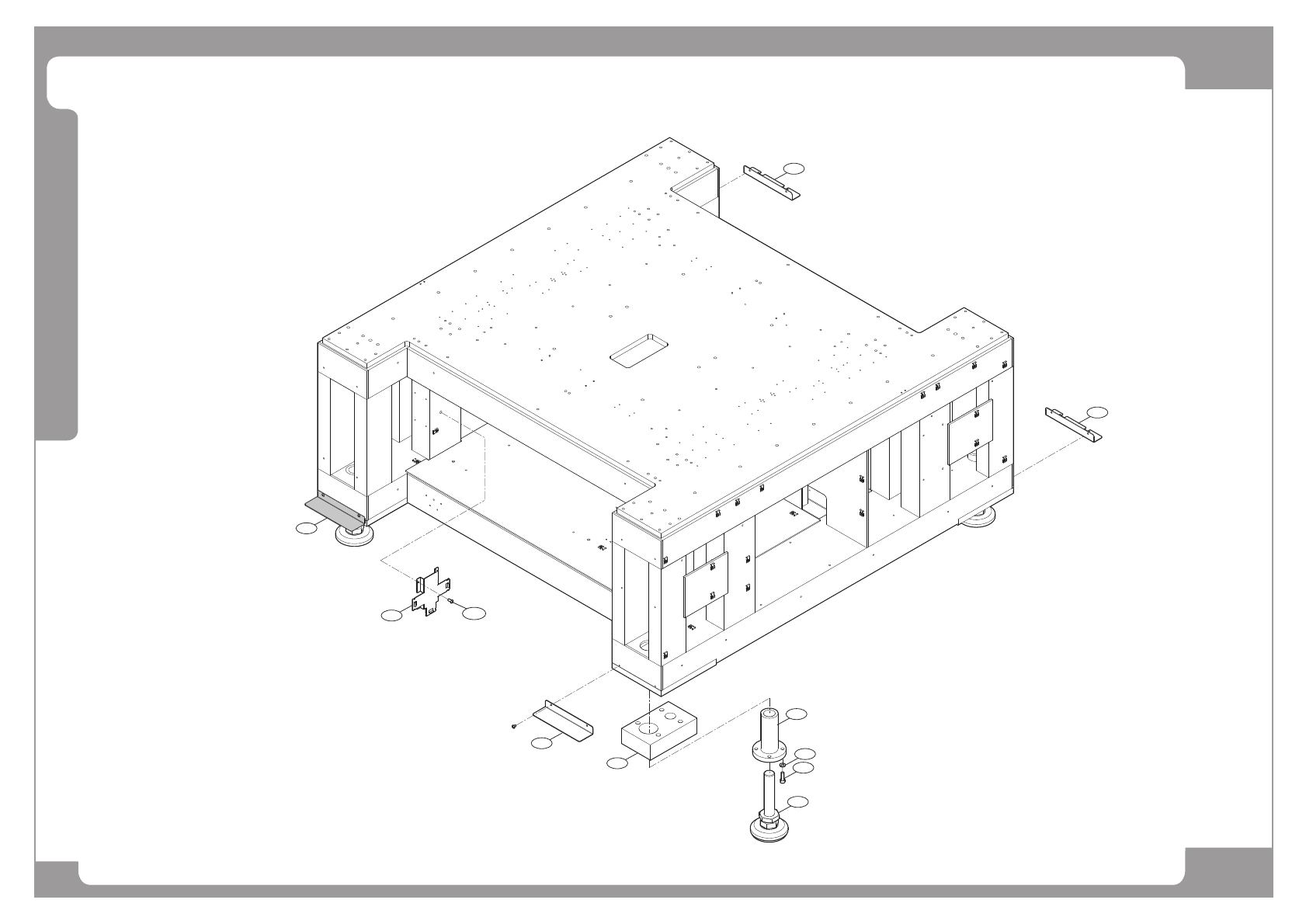

Base Frame Ass’y
1
2
2
9
3
4
5
7
6
8
10
Page
SAMSUNG TECHWIN
39
SM471
Base Frame Ass’y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70511046A
VIDEO_SPLITER_BKT J70511046A
1
2 FC15-000983A COVER BOTTOM FR 2
3 FC15-000985A COVER BOTTOM RR 1
4 FC15-000986A COVER BOTTOM RL 1
5 J7051010D
HOUSING-FOOT[J7051010D]
4
6 FC28-000176
FOOT-MFPU-98
4
7 FC15-000262A BASE-SPACER_FOOT_2 4
8 16
9 4
10 8
