Page SAMSUNG TECHWIN 42 SM471 H ead Ass’y (2/5)
Page
SAMSUNG TECHWIN
41
SM471
Head Ass’y (1/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-000963B
COVER-HEAD_TOP_COVER
1 FC15-000963A
2 AM03-005337B
ASSY,BOARD-SM471 HEAD IF BOARD VER1.0
1 AM03-005337A
3 FC09-001574B
BRACKET-HEAD_BOARD_BRACKET
1 FC09-001574A
4 J6103003A HEX SUPPORT 8
5 AM03-005341A
ASSY,BOARD-SM471 MOTOR IF BOARD VER1.0
1
6 FC09-001568A
BRACKET-FLAT_CABLE_BKT
1
7 FC09-001573A
BRACKET-HEAD_BKT_PANEL
1
8 J6119056A
HANDLE BG-10
1
9 FC09-001575A
BRACKET-HARNESS_PLATE
1
10 FC09-001690A
BRACKET-HEAD_BKT_FIX
1
11 FC09-001576A MOTOR_IF_BOARD_BKT 2
12 J1301070 STRAIGHT_CONNETOR_FITTING 6
13 J6719025A
GREASE NIPPLE [M6*1.0-STRAIGHT]
5
14 J67111015A
ELBOW_UNION_FEMALE KQ2LF04-M6
5
15 J71541016A HARNESS_SUPPORT 2
16 J70541016A
3-NIPPLE_BRACKET J70541016A
1
17 J70541017A
2-NIPPLE_BRACKET J70541017A
1
18 FC30-000990A
PLATE-IO_BOARD_SHEET
1
19 FC30-000991A
PLATE-MOTOR_IF_BOARD_SHEET
1
20 2
21 2
22 J6004002038
BUTTON_HEAD_CAP_SCREW M10*20 (NI/ZN)
1
23 2
24 2
25 J6103003A HEX_MOTOR IF BOARD SHEET 4
26 FC09-001847A
BRACKET-FITTING_BKT
1
Page
SAMSUNG TECHWIN
42
SM471

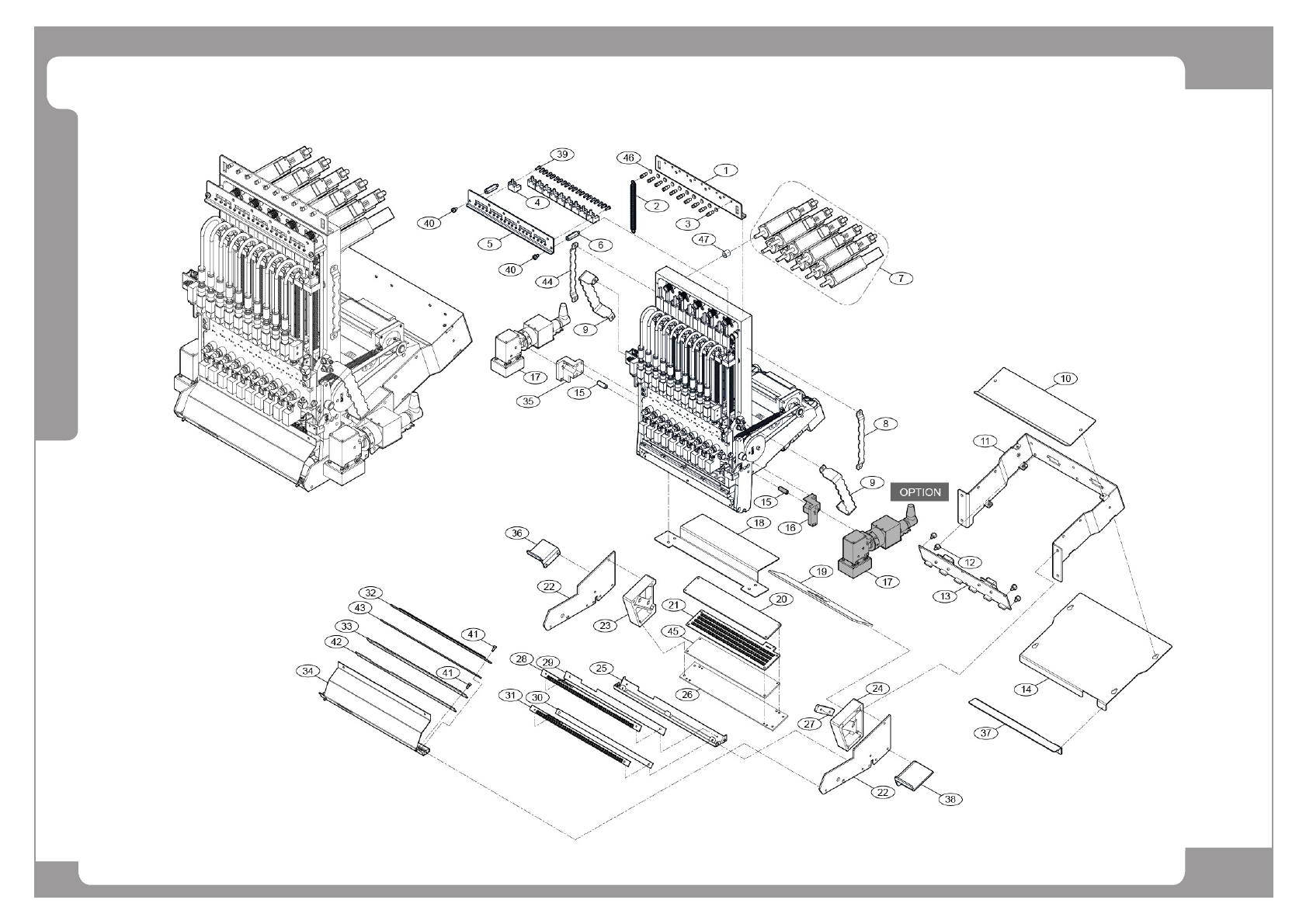

Head Ass’y (2/5)
Page
SAMSUNG TECHWIN
43
SM471
Head Ass’y (2/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-001505A
BRACKET-Z_SPRING_BKT
1
2 FC38-000072A
SPRING-Z_SPRING
10
3 J7155541A
PIN[J7155541A]
10
4 AM03-005580A
CABLE ASSY-Z1-Z5_HOME_SEN
5 J3212027A
AM03-005581A
CABLE ASSY-Z6-Z10_HOME_SEN
5 J3212027A
5 FC09-001506A
BRACKET-Z_SENSOR_BKT
1
6 J6103023A
HEX SUPPORT [M3*20 (BOLT-NUT)]
2
7 AM03-005601B CABLE ASSY-Z1_MOTOR 1 AM03-005601A
AM03-005602A CABLE ASSY-Z2_MOTOR 1
AM03-005603A CABLE ASSY-Z3_MOTOR 1
AM03-005604A CABLE ASSY-Z4_MOTOR 1
AM03-005605A CABLE ASSY-Z5_MOTOR 1
AM03-005606A CABLE ASSY-Z6_MOTOR 1
AM03-005607A CABLE ASSY-Z7_MOTOR 1
AM03-005608A CABLE ASSY-Z8_MOTOR 1
AM03-005609A CABLE ASSY-Z9_MOTOR 1
AM03-005610A CABLE ASSY-Z10_MOTOR 1
8 J71551021A
TIE_MOUNT_2 J71551021A
2
9 FC09-001558A
BRACKET-TIE_MOUNT_1
2
10 FC09-001562A
BRACKET-FLY_IO_TOP_COVER
1
11 FC09-001561A
BRACKET-FLY_CAM_COVER
1
12 J6103003A HEX SUPPORT 6
13 AM06-000358B
ASSY,PCB SMD-SM400_CAMERA_IO_BD
1 AM06-000358A
14 FC09-001563A
BRACKET-FLY_IO_BOTTOM_COVER
1
15 FC09-001524A
BRACKET-S_STOPPER
2
16 FC09-001555A
BRACKET-FID_BRACKET_1
1
17 J91851019A
FIDUCIAL_CAMERA_ASSY J91851019A
1
