Page SAMSUNG TECHWIN 53 SM471 H ead Ass’y (5/5) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply S upply L T Reference 1 EP08-0000 07 MOTOR,STEP;5 PHASE,ET1:ETC. 5 2 FC09-0014 93A BRACKET -Z_SENSOR_DOG 1 3 J715554…
Page
SAMSUNG TECHWIN
52
SM471

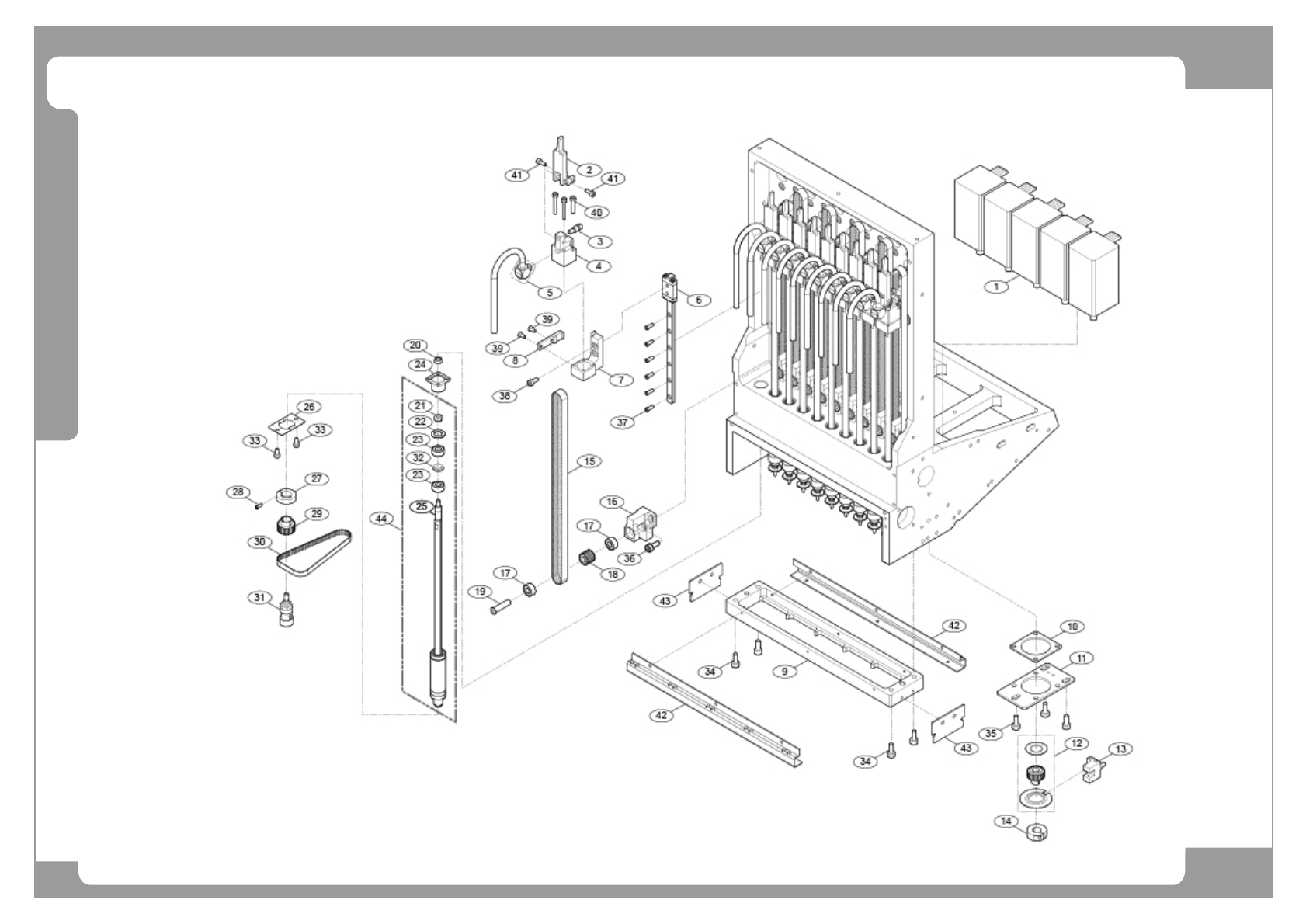

Head Ass’y (5/5)
Page
SAMSUNG TECHWIN
53
SM471
Head Ass’y (5/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP08-000007
MOTOR,STEP;5 PHASE,ET1:ETC.
5
2 FC09-001493A
BRACKET-Z_SENSOR_DOG
1
3 J7155541A
PIN[J7155541A]
1
4 FC09-001491A Z_CAP 1
5 J6711046A
BOB ELBOW FITTING M-5ALU-4
1
6 MC13-000268
LM GUIDE-SEBS5BYUU1-115P;115,12,1,P
1 MC13-000116
7 FC29-001047C
HOUSING-Z_ROD_HOUSING
1 FC29-001047A/ FC29-001047B
8 FC09-001492B
BRACKET-Z_BELT_CLAMP;STS304
1 FC09-001492A
9 FC09-001504A
BRACKET-REF_PLATE
1
10 FC30-000797A
PLATE-INSULATION_PLATE
1
11 FC30-000798A
PLATE-STEP_MOTOR_PLATE
5 FC30-000927A
12 MC19-000340A
PULLEY-R_MOTOR_PULLEY
1
13 AM03-005582
CABLE ASSY-R_HOME_SENSOR
1 J32121021A
14 MC05-000117
TIMING BELT;1.5GT,360,1.5,6,1,240,0.56
1 FC09-001501A Z1.3.5.7.9
15 MC05-000119
TIMING BELT;1.5GT,324,1.5,6,1,216,0.56
1 MC05-000117 Z2.4.6.8.10
16 FC09-001502B
BRACKET-Z_IDLE_BODY
1 FC09-001502A
17 J6601140
BALL BEARING[684ZZ]
2 J66011095A
18 J71551848A
Z_IDLER_PULLEY J71551848A
1 MC19-000341A
19 J70551874A
Z_IDLE_SHAFT J70551874A
1
20 HP07-000094A Y_PACKING 1
21 FC09-001490A
BRACKET-LOCK_NUT_Z
1
22 FC18-000960
COVER-OPEN_DOOR_A
1
23 J6601140A
BALL BEARING[684ZZ]
2
24 FC09-001489A
BRACKET-Z_TOP_HOUSING
1
25 MC13-000172
SPLINE,BALL-LT5XLCSS+186LPM
1 MC13-000124
26 FC30-000927A
PLATE-BEARING_P_PLATE;SPCC
1
27 FC09-001494A
BRACKET-S_PULLEY_CLAMP
1
Page
SAMSUNG TECHWIN
54
SM471
Head Ass’y (5/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
28 FC18-000967
COVER-COVER PUMP
1
29 MC19-000339A
PULLEY-SPINDLE_PULLEY
1
30 MC05-000120
TIMING BELT;1.5GT,160.5,1.5,4,1,107,0.56
1 J66021183A
31 J90551225A
431_NOZZLE_HOLDER_ASSY J90551225A
1
32 FC29-000176
SHIM-SHIM_RING
1
33 2
34 4
35 3
36 1
37 6
38 1
39 2
40 3
41 2
42 FC09-001513A
BRACKET-SM411_PLUS_FLY_SIDE_BRACKET
2
43 FC09-001514A
BRACKET-SM411_PLUS_MIRROR_BRACKET
2
44 AM03-014140A HEAD_BALL_SPLINE_SUB_ASSY 1
