Page SAMSUNG TECHWIN 79 SM471 F ixed ANC Ass’y NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply S upply L T Reference 1 AM03-001510A ANC_ASSY J90561 001A 1 J9056 1001A 2 J71561004 A ANC_SUPPOR T J71561004A 1 3 J71…
Page
SAMSUNG TECHWIN
78
SM471
Fixed ANC Ass’y
Page
SAMSUNG TECHWIN
79
SM471
Fixed ANC Ass’y

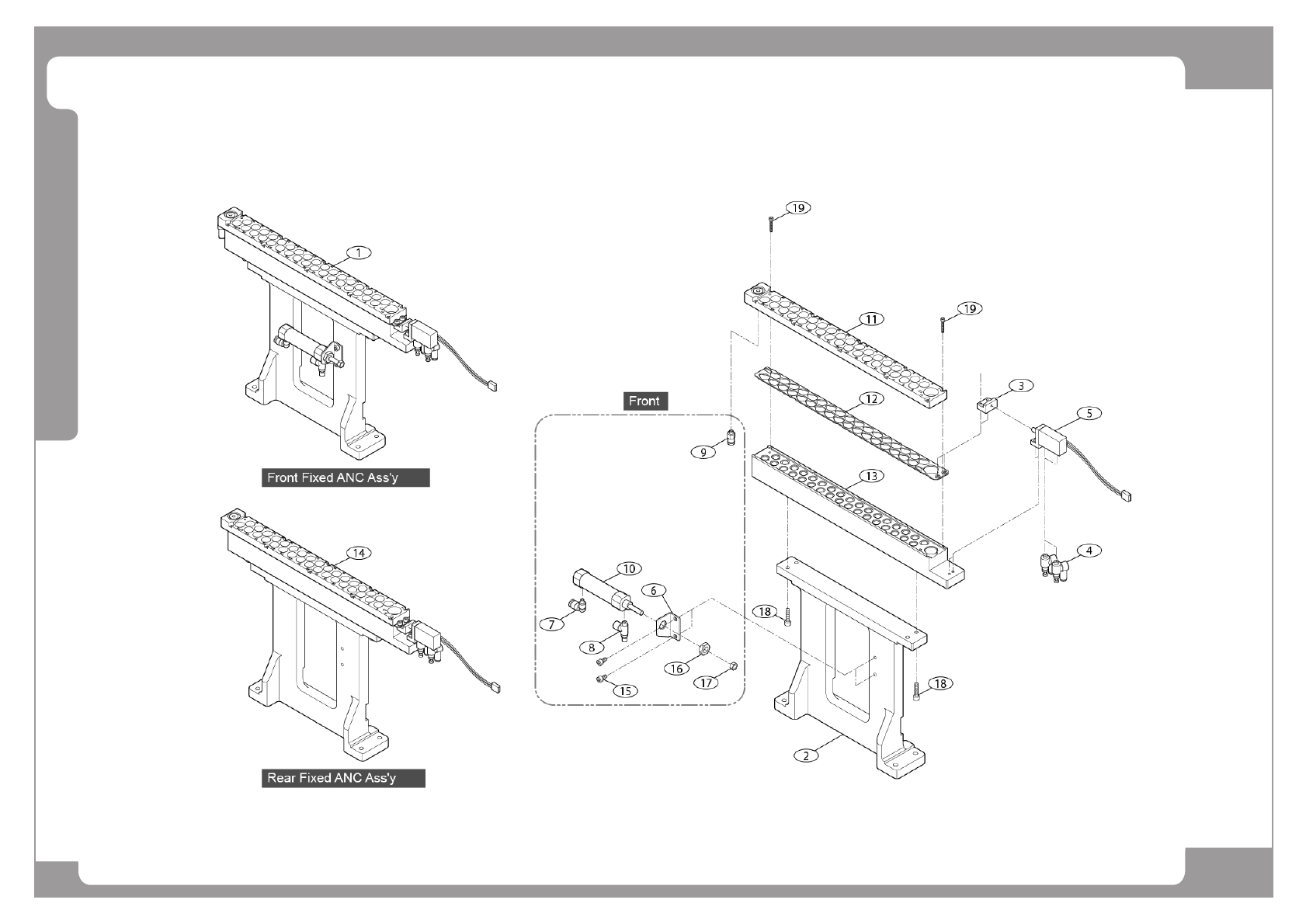

NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-001510A ANC_ASSY J90561001A 1 J90561001A
2 J71561004A ANC_SUPPORT J71561004A 1
3 J7156043B SHUTTER BRACKET[J7156043B] 1
4 J6703028A SPEED CONTROLLER [SS4-M5MA] 2
5 J6701029A
AIR CYLINDER BDAS 6X5-1A-ZC153A2
1
6 J70561001A CYLINDER_BRACKET J70561001A 1
7 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1
8 J6703031A SPEED CONTROLLER[AS1211F-M5-04] 1
9 J6711147A
STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W
1
10 J67011016B AIR_CYLINDER 1
11 J71561001B ANC_PLATE_1 1 FC30-000241A
12 J71561002B ANC_NOZZLE_SHUTTER 1 FC30-000242A
13 J71561003B ANC_MAIN_BODY 1 FC03-000014A
14 AM03-001511A
BRACKET-PANEL CON Y
1 J90561002A
15 2
16 1
17 J6025500036 HEX NUT 1
18 J1300434 SOCKET HEAD SCREW M4*15 8
19 J1301378 SOCKET HEAD SCREW M2.5*15 20
Page
SAMSUNG TECHWIN
80
SM471

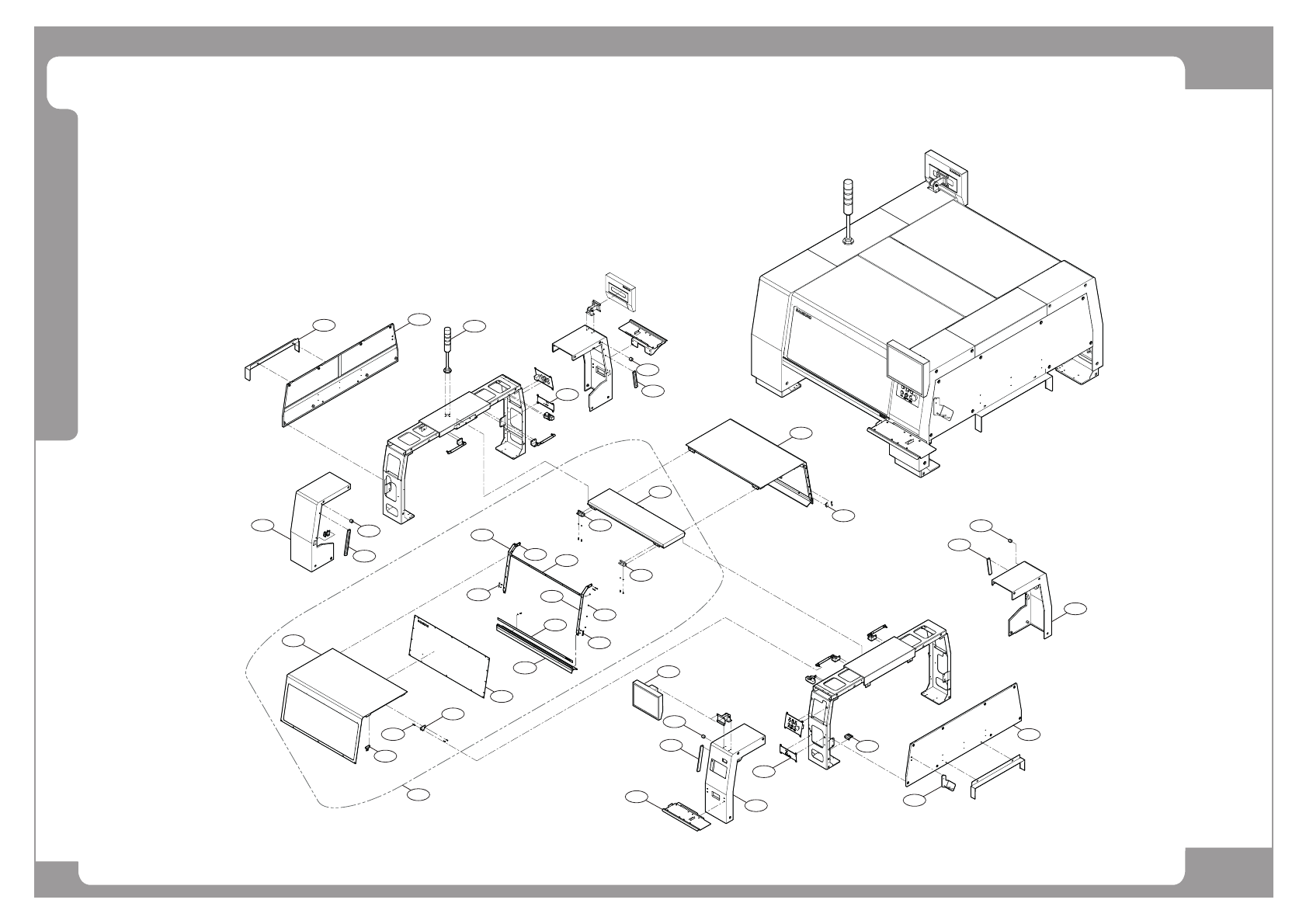

Cover Ass’y (1/3)
3
27
26
20
24
18
19
21
15
12
14
1
7
9
5
23
4
11
16
10
13
6
25
8
22
25
9
C
E
27
27
3
3
8
3
28
15
17
2
F
F
