KJF_d-YTF(YGR)_PL - 第16页
1 8 Station Station KJF-1005 32 22 23 18 15 16 17 16 15 40 47 7 20 39 47 30 51 51 31 21 8 37 12 44 50 52 33 34 51 52 26 29 28 40 36 35 40 45 39 9 26 46 10 34 42 5 53 43 49 27 48 25 40 6 4 24 38 13 14 1 3 41 39 2 19 33 No…
3
7
Pulley Assy
Traverser
KJF-0804
5
27
24
24
24
27
7
12
10
7
11
24
27
7
12
10
7
11
24
27
27
9
28
6
2
2
7
7
4
27
26
28
8
6
25
3
7
27
7
4
6
2
7
7
2
6
1
24
24
27
7
6
15
7
13
14
24
18
18
17
19
23 23
22
22
20
21
27
7
6
15
7
16
14
3
3
3
27

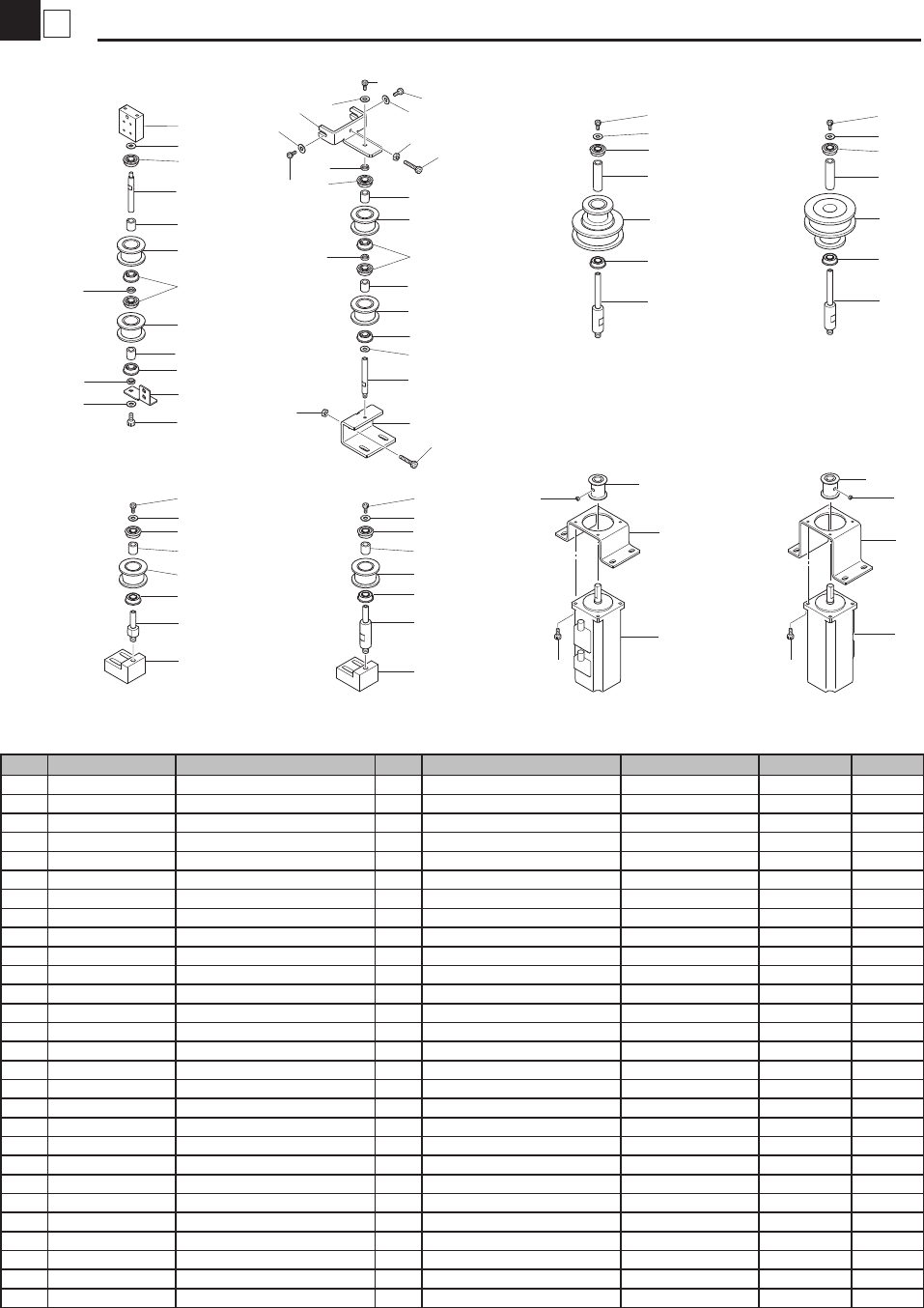

Pulley ASSY F Pulley ASSY R Pulley ASSY 1 Pulley ASSY 2
TENSIONER ASSY 1 TENSIONER ASSY 2 MOTOR R ASSY MOTOR L ASSY
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M781F-00 PULLEY FIX 1
2 KJF-M7821-01 PULLEY 1 4
3 KJF-M7823-01 COLLAR 4
4 KJF-M7824-01 TOP SHAFT 2
5 KJF-M7825-02 BLOCK PULLEY 1 1
6 KJF-M7826-01 COLLAR 1 6
7 90933-03J696 BEARING 14
8 KJF-M7825-11 SHAFT STAY 1
9 KJF-M7828-00 TEISION FIX 1
10 KJF-M7822-01 PULLEY 2 2
11 KJF-M7824-11 SHAFT PULLEY 1 2
12 KJF-M7826-11 COLLAR 2 2
13 KJF-M7824-41 SHAFT PULLEY 4 1
14 KJF-M7825-20 BLOCK PULLEY 3 2
15 KJF-M7827-01 TENSION PULLEY 1
16 KJF-M7824-21 SHAFT PULLEY 2 1
17 KJF-M781C-00 BRACKET MOTOR 1 1
18 KC0-M1751-00 PULLEY,1 :P16S3M0150 2
19 90K63-201529 AC SERVO MOTOR 1
20 KJF-M781D-00 BRACKET MOTOR 2 1
21 90K63-201528 AC SERVO MOTOR 1
22 90152-04J03 SCREW,SET M4X3 4
23 91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8
24 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
25 91312-04016 BOLT,HEX.SOCKET HEAD 1 M4X16
26 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
27 92902-04200 WASHER PLAIN 8
28 95302-04600 NUT HEXAGON 3
1
8
Station
Station
KJF-1005
32
22
23
18
15
16
17
16
15
40
47
7
20
39
47
30
51
51
31
21
8
37
12
44
50
52
33
34
51
52
26
29
28
40
36
35
40
45
39
9
26
46
10
34
42
5
53
43
49
27
48
25
40
6
4
24
38
13
14
1
3
41
39
2
19
33

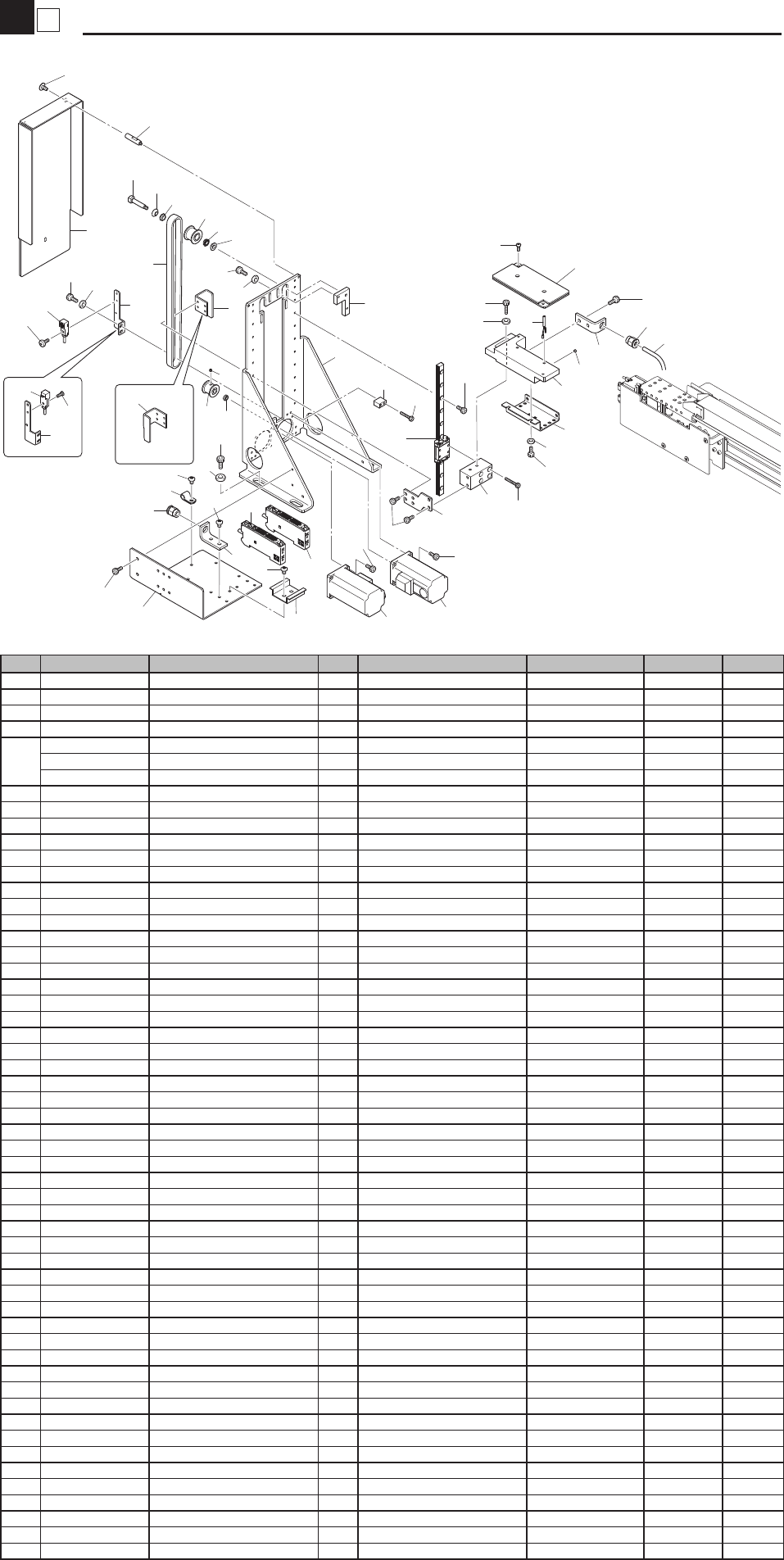

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M7101-00 BRACKET LS 1
2 KGW-M7102-00 STAGE,GUIDE 2
3 KJF-M7103-00 STOPPER 1 2
4 KGW-M7104-01 BLOCK,GUIDE 2
5
KJF-M7105-00 PLATE,WORK 1 Adhesive strength 1800g
KJF-M7105-10 PLATE,WORK 800 1 Adhesive strength 800g (2008/6/3) ME40232
KJF-M7105-20 PLATE,WORK 100 1 Adhesive strength 100g (2008/6/3) ME40232
6 KJF-M7106-00 BRACKET,STAGE 2
7 KGW-M7107-01 DOG1,SENSOR 1
8 KGW-M7108-01 DOG2,SENSOR 1
9 KJF-M7109-00 BLOCK,FIBER 2
10 KJF-M7110-00 FIBER UNIT 4
11
12 90990-28J050 WASHER,PLAIN 2
13 KGW-M7113-00 DRIVEN PULLEY1 2
14 KGW-M7114-00 PLATE,PULLEY 2
15 KGW-M7115-00 COLLAR1 4
16 90933-03J085 BEARING 4
17 KGW-M7117-00 DRIVEN PULLEY2 2
18 KGW-M7118-00 HINGE PIN 2
19 KGW-M7119-00 TIMING BELT 2
20 KGW-M7120-L1 SENSOR BRACKET1 1
21 KGW-M7120-R1 SENSOR BRACKET2 1
22 KGW-M7123-01 POST 3
23 KGW-M7124-01 COVER 1
24 KJF-M7131-00 BRACKET,AMP FIBER 1
25 KJF-M7132-00 COVER,FIBER 2
26 KJF-M7133-00 BRACKET,JOINT 4
27 KJF-M7134-00 TUBE 2
28 KJF-M652F-00 SENSOR,ST1.2 ASSY 1
29 KJF-M652F-10 SENSOR,ST3.4 ASSY 1
30 KW6-M717G-B0 SENSOR,LS1 LOWER 1
31 KW6-M717G-C0 SENSOR,LS2 LOWER 1
32 K16-90103-00 BOLT: TP-M4X8 3
33 $BAA1000 DIN RAIL 30
34 $TS6-01M JOINT 4
35 90K55-3U0738 AC SERVO MOTOR 1
36 90K55-3U0739 AC SERVO MOTOR 1
37 90990-02J007 SET,SCREW 4
38 91312-03005 BOLT HEX.SOCKET HEAD 4 M3X5
39 91312-03006 BOLT HEX.SOCKET HEAD 28 M3X6
40 91312-03008 BOLT HEX.SOCKET HEAD 24 M3X8
41 91312-03014 BOLT,HEX.SOCKET HEAD 4 M3X14
42 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
43 91312-04014 BOLT HEX.SOCKET HEAD 4 M4X14
44 91312-06016 BOLT HEX.SOCKET HEAD 4 M6X16
45 91380-03018 BOLT HEX.SOCKET HEAD 8 M3X18
46 92A90-03103 SCREW,SET 4
47 92902-03600 WASHER PLAIN 8
48 92990-03200 WASHER PLAIN 4
49 92990-04200 WASHER PLAIN 4
50 92990-06600 WASHER PLAIN 4
51 98502-03008 SCREW PAN HEAD (+) 2
52 98502-04006 SCREW PAN HEAD 6
53 98580-03008 SCREW,PAN HEAD (+) 4
1
9
Conveyor
Conveyor
KJF-0804
50
50
65
65
53
53
9
69
52
68
43
30
52
58
53
54
31
27
10
10
33,34,35
5
6
7
38
38
38
23 15
70
76
70
40
62
28
29
70
57
63
66
71
36
67
74
26
67
59
57
57
26
28
25
75
68
46
44
58
45
65
65
58
58
44
18
56
37
32
54
17
61
59
58
39
59
70
57
24
7
2
4
30
57
38
57
38
3
57
38
58
8
58
58
53
13
58
47
64
72
1
41
60
30
4
54
53
58
30
9
5
11
12
55
19
19
48,49
48,49
6
14
52
61
52
21
60
69
61
59
52
7
7
58
58
42
22
51
58
58
16
Back S.T.D(330)
Back S.T.D
77
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M91A1-00 BASE,CONVEYOR 1
2 KGW-M91A2-02 SIDE BASE,CONV. 1
3 KGW-M91A2-12 SIDE BASE,CONV. 1
4 KGW-M91A3-01 CONVEYOR FRAME 2
5 KGW-M91A4-01 GUIDE A-1 12
6 KGW-M91A5-00 SPACER,GUIDE A 6
7 KGW-M91A6-00 DAMPER 1,W 4
8 KGW-M91A8-00 BRACKET,CONV. 2
9 KGW-M91A9-00 GUIDE, BLOCK 4
10 KV5-M9105-00 BALL SCREW 2
11 KGW-M9105-00 PULLEY 1,SPLINE 1
12 KGW-M9108-00 COLLAR CONVEYOR 1
13 KJF-M9110-00 HNS,COVER 1
14 KGW-M9111-00 BRKT.,COLLAR 1
15 KV5-M9112-01 CUPPLING CONV. 1
16 KGW-M9116-03 PLATE,BALL SCREW 1 F.R>L,B. L>R (400)(330)
17 KGW-M9116-12 PLATE,BALL SCREW 1 F.L>R,B. R>L (400)(330)
18 KV5-M9117-00 MOTOR BRACKET 1 1
19 KGW-M9117-00 SPACER GUIDE 2
20 KGW-M9118-00 MOTOR BRACKET 2 1
21 KV5-M9119-00 BRACKET,DOG 1
22 KV5-M9120-00 BRACKET SENSOR 1
23 90990-41J087 COLLAR 1
24 KGW-M9122-00 BELT SPLINE 1
25 KV5-M9124-00 COUPLING SCREW 1
26 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
27 KGW-M9129-00 BELT 1,CONVEYOR 2
28 KGW-M9131-00 SPACER 2
29 KGW-M9132-00 PLATE,TENSOIN IDLER 1
30 KGW-M9140-A1 PULLEY CONV.ASSY 10
31 KGW-M9142-00 PULLEY 1,MOTOR 1 Front S.T.D
32 KGW-M9142-10 PULLEY 2 1 Back S.T.D
33 KGW-M9143-00 SPLINE 1 1 Front S.T.D
34 KGW-M9143-10 SPLINE 1 1 Back S.T.D (400)
35 KGW-M9143-20 SPLINE 2 1 Back S.T.D (330)
36 KV7-M9149-00 COLLAR,BRG. 1
37 KGW-M9145-00 JOINT,PULLEY 2 1 Back S.T.D
38 KH2-M9121-00 BEARING 6
39 90K63-001527 AC SERVO MOTOR 1
40 KGK-M9170-00 DC MOTOR ASSY. 1
41 KV5-M7114-B0 SENSOR(PM-Y44P) 1
42 KM7-M912A-00 BRACKET SENSOR 1
43 KGW-M655F-00 SENSOR,ENT(L=1400) 1
44 KGW-M91B1-00 BRKT.,COVER 2
45 KGW-M91B3-00 BRKT.,SWITCH 1
46 KGW-M91B4-00 COVER MAIN 1
47 KGW-M91B5-00 COVER UNDER 1
48 90K71-3L0450 LM RAIL,15 2 Front S.T.D Back S.T.D(400)
49 90K71-3L0345 LM RAIL,15 2 Back S.T.D (330)
50 KGW-M9134-00 BRKT.,COVER CONV. 2 Back S.T.D (330)
51 KGW-M9135-00 COVER,CONVEYOR 1 Back S.T.D (330)
52 91312-03005 BOLT HEX.SOCKET HEAD 7 M3X5
53 91312-03006 BOLT HEX.SOCKET HEAD 26 M3X6
54 91312-03008 BOLT HEX.SOCKET HEAD 25 M3X8
55 91312-03010 BOLT HEX.SOCKET HEAD 14 M3X10
56 91312-03012 BOLT,HEX.SOCKET HEAD 4 M3X12
57 91312-04005 BOLT HEX.SOCKET HEAD 14 M4X5
58 91312-04006 BOLT HEX.SOCKET HEAD 73 M4X6
59 91312-04008 BOLT HEX.SOCKET HEAD 19 M4X8
60 91312-04012 BOLT,HEX.SOCKET HEAD 16 M4X12
61 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
62 91312-04055 BOLT,HEX.SOCKET HEAD 4 M4X55
63 91312-05018 BOLT HEX.SOCKET HEAD 1 M5X18
64 91312-08016 BOLT HEX.SOCKET HEAD 8 M8X16
65 90990-12J001 SCREW BIN.HEAD W/W 14
66 92A08-04305 SET SCREW M4X5 4
67 92A08-04306 SET SCREW M4X6 4
68 92902-03200 WASHER PLAIN 5
69 92902-03600 WASHER PLAIN 4
70 92902-04200 WASHER PLAIN 14
71 92902-05200 WASHER PLAIN 1
72 92902-08200 WASHER,PLAIN 8
73 92903-04200 WASHER PLAIN 2
74 90933-03J608 BEARING 2
75 95302-03600 NUT HEXAGON 4
76 95302-04600 NUT HEXAGON 4
77 90K80-S15RV0 LM BLOCK,SSR15V-R 2
* F.: FRONT S.T.D B.: BACK S.T.D
