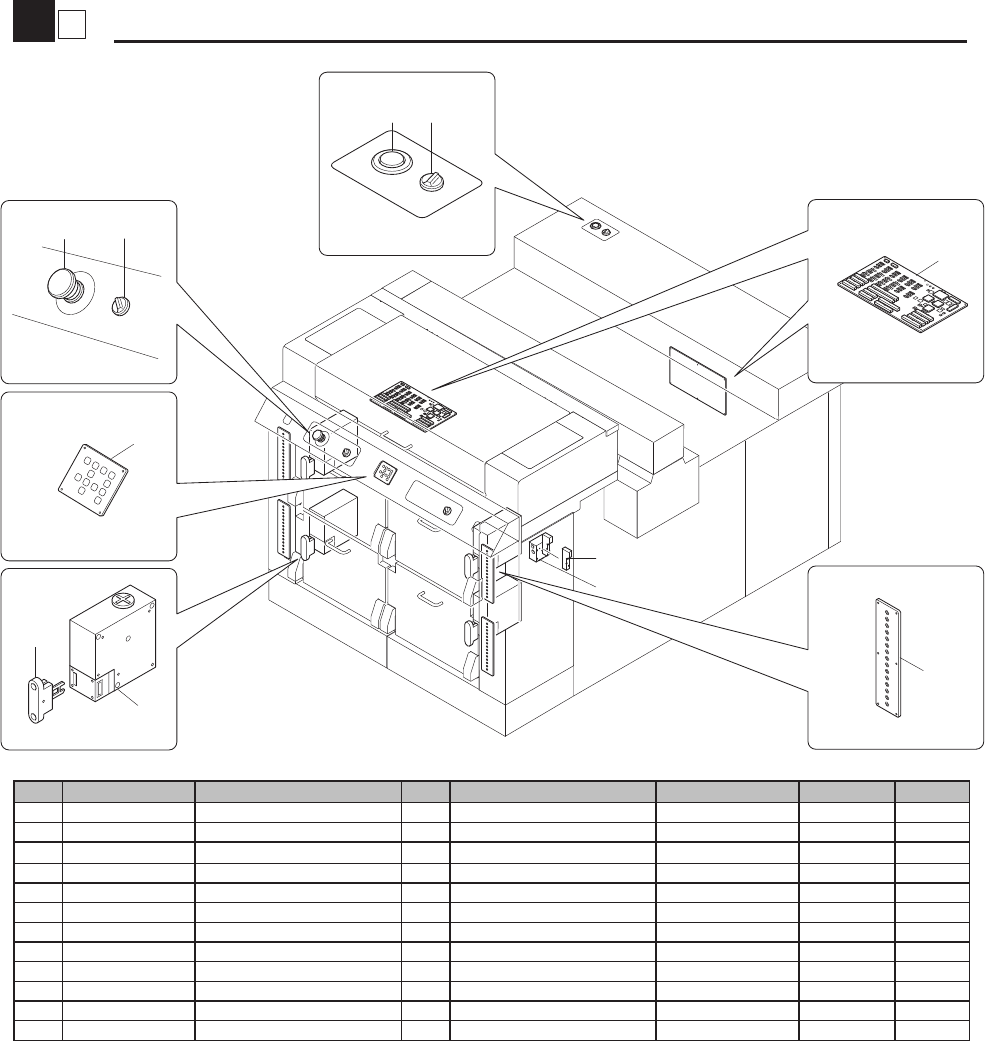

1 10 System Parts System Parts KJF-100107 1 2 4 5 9 8 3 7 6 10 1 1 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KW7-M5127-00 SAFETY SWITCH KEY 4 2 KGW -M5126-00 SWITCH SAFETY 4 2-1 KGW -…
1
9
Conveyor
Conveyor
KJF-0804
50
50
65
65
53
53
9
69
52
68
43
30
52
58
53
54
31
27
10
10
33,34,35
5
6
7
38
38
38
23 15
70
76
70
40
62
28
29
70
57
63
66
71
36
67
74
26
67
59
57
57
26
28
25
75
68
46
44
58
45
65
65
58
58
44
18
56
37
32
54
17
61
59
58
39
59
70
57
24
7
2
4
30
57
38
57
38
3
57
38
58
8
58
58
53
13
58
47
64
72
1
41
60
30
4
54
53
58
30
9
5
11
12
55
19
19
48,49
48,49
6
14
52
61
52
21
60
69
61
59
52
7
7
58
58
42
22
51
58
58
16
Back S.T.D(330)
Back S.T.D
77
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJF-M91A1-00 BASE,CONVEYOR 1
2 KGW-M91A2-02 SIDE BASE,CONV. 1
3 KGW-M91A2-12 SIDE BASE,CONV. 1
4 KGW-M91A3-01 CONVEYOR FRAME 2
5 KGW-M91A4-01 GUIDE A-1 12
6 KGW-M91A5-00 SPACER,GUIDE A 6
7 KGW-M91A6-00 DAMPER 1,W 4
8 KGW-M91A8-00 BRACKET,CONV. 2
9 KGW-M91A9-00 GUIDE, BLOCK 4
10 KV5-M9105-00 BALL SCREW 2
11 KGW-M9105-00 PULLEY 1,SPLINE 1
12 KGW-M9108-00 COLLAR CONVEYOR 1
13 KJF-M9110-00 HNS,COVER 1
14 KGW-M9111-00 BRKT.,COLLAR 1
15 KV5-M9112-01 CUPPLING CONV. 1
16 KGW-M9116-03 PLATE,BALL SCREW 1 F.R>L,B. L>R (400)(330)
17 KGW-M9116-12 PLATE,BALL SCREW 1 F.L>R,B. R>L (400)(330)
18 KV5-M9117-00 MOTOR BRACKET 1 1
19 KGW-M9117-00 SPACER GUIDE 2
20 KGW-M9118-00 MOTOR BRACKET 2 1
21 KV5-M9119-00 BRACKET,DOG 1
22 KV5-M9120-00 BRACKET SENSOR 1
23 90990-41J087 COLLAR 1
24 KGW-M9122-00 BELT SPLINE 1
25 KV5-M9124-00 COUPLING SCREW 1
26 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
27 KGW-M9129-00 BELT 1,CONVEYOR 2
28 KGW-M9131-00 SPACER 2
29 KGW-M9132-00 PLATE,TENSOIN IDLER 1
30 KGW-M9140-A1 PULLEY CONV.ASSY 10
31 KGW-M9142-00 PULLEY 1,MOTOR 1 Front S.T.D
32 KGW-M9142-10 PULLEY 2 1 Back S.T.D
33 KGW-M9143-00 SPLINE 1 1 Front S.T.D
34 KGW-M9143-10 SPLINE 1 1 Back S.T.D (400)
35 KGW-M9143-20 SPLINE 2 1 Back S.T.D (330)
36 KV7-M9149-00 COLLAR,BRG. 1
37 KGW-M9145-00 JOINT,PULLEY 2 1 Back S.T.D
38 KH2-M9121-00 BEARING 6
39 90K63-001527 AC SERVO MOTOR 1
40 KGK-M9170-00 DC MOTOR ASSY. 1
41 KV5-M7114-B0 SENSOR(PM-Y44P) 1
42 KM7-M912A-00 BRACKET SENSOR 1
43 KGW-M655F-00 SENSOR,ENT(L=1400) 1
44 KGW-M91B1-00 BRKT.,COVER 2
45 KGW-M91B3-00 BRKT.,SWITCH 1
46 KGW-M91B4-00 COVER MAIN 1
47 KGW-M91B5-00 COVER UNDER 1
48 90K71-3L0450 LM RAIL,15 2 Front S.T.D Back S.T.D(400)
49 90K71-3L0345 LM RAIL,15 2 Back S.T.D (330)
50 KGW-M9134-00 BRKT.,COVER CONV. 2 Back S.T.D (330)
51 KGW-M9135-00 COVER,CONVEYOR 1 Back S.T.D (330)
52 91312-03005 BOLT HEX.SOCKET HEAD 7 M3X5
53 91312-03006 BOLT HEX.SOCKET HEAD 26 M3X6
54 91312-03008 BOLT HEX.SOCKET HEAD 25 M3X8
55 91312-03010 BOLT HEX.SOCKET HEAD 14 M3X10
56 91312-03012 BOLT,HEX.SOCKET HEAD 4 M3X12
57 91312-04005 BOLT HEX.SOCKET HEAD 14 M4X5
58 91312-04006 BOLT HEX.SOCKET HEAD 73 M4X6
59 91312-04008 BOLT HEX.SOCKET HEAD 19 M4X8
60 91312-04012 BOLT,HEX.SOCKET HEAD 16 M4X12
61 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
62 91312-04055 BOLT,HEX.SOCKET HEAD 4 M4X55
63 91312-05018 BOLT HEX.SOCKET HEAD 1 M5X18
64 91312-08016 BOLT HEX.SOCKET HEAD 8 M8X16
65 90990-12J001 SCREW BIN.HEAD W/W 14
66 92A08-04305 SET SCREW M4X5 4
67 92A08-04306 SET SCREW M4X6 4
68 92902-03200 WASHER PLAIN 5
69 92902-03600 WASHER PLAIN 4
70 92902-04200 WASHER PLAIN 14
71 92902-05200 WASHER PLAIN 1
72 92902-08200 WASHER,PLAIN 8
73 92903-04200 WASHER PLAIN 2
74 90933-03J608 BEARING 2
75 95302-03600 NUT HEXAGON 4
76 95302-04600 NUT HEXAGON 4
77 90K80-S15RV0 LM BLOCK,SSR15V-R 2
* F.: FRONT S.T.D B.: BACK S.T.D
2
9
Stopper
Conveyor
KJF-0804
24
SUB STOPPER EXIT STOPPER
24
24
15
14
29
1
3
3
9
30
12
10
16
5
2
25
25
6
17
13
7
25
25
11
31
19
32
18
20
33
21
23
24
34
22
2
26
12
4
12
8
27
28
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M9221-00 PLATE,PUSH IN 1
2 KV8-M9222-00 PLATE,BRACKET 2
3 KV8-M9223-00 PLATE,LINK 2
4 KV8-M9224-00 JOINT,CYLINDER 1
5 KV8-M9225-00 SPACER 1 1
6 KV8-M9226-00 SPACER 2 1
7 KV8-M9227-00 BRACKET,CYLINDER 1
8 KV8-M9228-00 PIN 1 1
9 KV8-M9229-00 PIN 2 1
10 KV8-M922A-00 PIN 3 1
11 KGW-M922C-00 BLOCK,BRACKET 1
12 KV8-M922D-00 DRY,MET(80B-0403) 4
13 KV8-M922E-00 CYLINDER NDA10-30 1
14 KGW-M655F-10 SENSOR,POS 1 L=1400
15 KGW-M922G-00 BRACKET,SENSOR 1
16 90933-03J684 BEARING 4
17 $SC4-M5A SPEED CONTROLLER 2
18 KGW-M9271-00 BRKT.,EXIT STOPPER 1
19 KGW-M9272-00 BRACKET,SENSOR 1
20 KV7-M9282-00 STOPPER,SUB 1
21 KV7-M9283-00 CYL.,YMDA16X35 1
22 KGW-M655F-20 SENSOR,EXIT 2 L=1400
23 $SL4-M5 JOINT 1
24 91317-03006 BOLT HEX.SOCKET HEAD 7 M3X6
25 91317-03008 BOLT HEX.SOCKET HEAD 10 M3X8
26 91317-03025 BOLT HEX.SOCKET HEAD 2 M3X25
27 92907-03600 WASHER PLAIN 4
28 92A08-03303 SET SCREW M3X3 1
29 92A08-03304 SET SCREW 2
30 99009-03600 CIRCLIP : 2
31 91317-03012 BOLT HEX.SOCKET HEAD 2 M3X12
32 91314-04005 BOLT HEX.SOCKET HEAD 2 M4X5
33 91317-04008 BOLT HEX.SOCKET HEAD 2 M4X8
34 92907-03200 WASHER PLAIN 1
1
10
System Parts
System Parts
KJF-100107
1
2
4 5
9 8
3
7
6
10
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KW7-M5127-00 SAFETY SWITCH KEY 4
2 KGW-M5126-00 SWITCH SAFETY 4
2-1
KGW-M5126-M0 SAFETY SW LOCK ASSY
4
(2009/12/1) MFX0093 OK
3 KGW-M4578-01 IND ICATE BORAO 4
4 KGK-M5138-00 SWITCH, EMG ASSY 1
5 KGB-M3992-00 SWITCH,SELECT 2
6 KGW-M4566-00 TEACHING BOARD ASSY 1
7 KGK-M4590-01 I/O TF BOARD ASSY 2
8 KGW-M3992-10 SWITCH,SELECT 1B 1
9 KGW-M6558-00 SWITCH,PUSH BUTTON 1
10 KH2-M7101-00 VALVE 1 1
11 KHW-M8582-40 VALVE 1
