1 Installation

1-7

ACTION:

① Locate the machine to the specified place.

② Remove the followings: the bolt that locks the head in the X-axis beam, the metal fitting that locks the

Scan Camera and the nylon ties that prevent X-axis beam movement to the Y direction. Check to see

that the head and the Scan Camera can move to the X direction and the X-axis beam can move to the

Y direction manually.

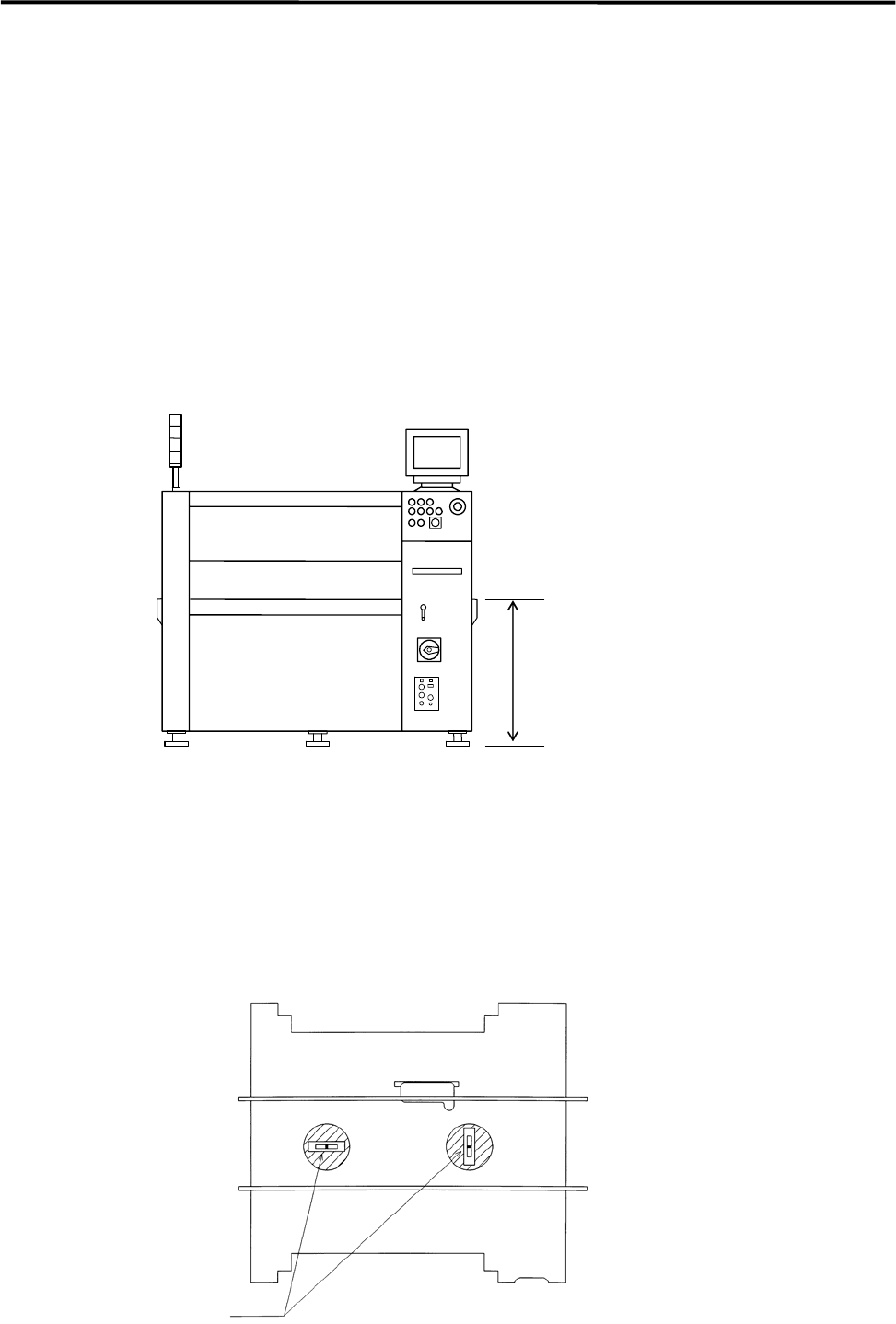

③ When the machine is installed stand alone, turn the adjust feet so that the PCB transfer height is the

same as the conveyor height (900±20mm (see Note)) of the reference equipment.

When the machine is connected to the Pre-process on production line, adjust the PCB transfer height

to the conveyor rail height of the Pre-process.

)

Production Line

In the case of SMEMA interface spec, the height must be 950±20mm.

900＋/－20mm

950＋/－20mm(SMEMA)

NOTE: The height must be 890 to 920mm in the case of CFB wagon spec.

NOTE: The adjust feet must be turned using a M30 single-head wrench (nominal: 46mm).

④ Place a leveler on the base of the machine. Set the position to the conveyor of the Pre-process finely

until the machine is leveled.

) Supplementary Explanation for Installation

Leveler

1 Installation

1-8

⑤ After the machine is positioned, make sure that a board runs smoothly between upstream and

downstream conveyor.

⑥ Place a leveler on the X-axis beam and make a fine adjustment so that the difference in indicator when

the X-axis beam moves forward and backward will be within 1 division. ( To prevent a X-axis beam

distortion. )

Viewed from the front

Viewed from the rear

⑦ Lock the adjust foot nut lastly.

NOTE: The adjust foot nuts must be locked with a closed wrench (nominal: 46mm) or a single-head wrench.

⑧ Connect the power cable and ground line independently of other machines which may be a noise

source, such as a compressor, welding machine.

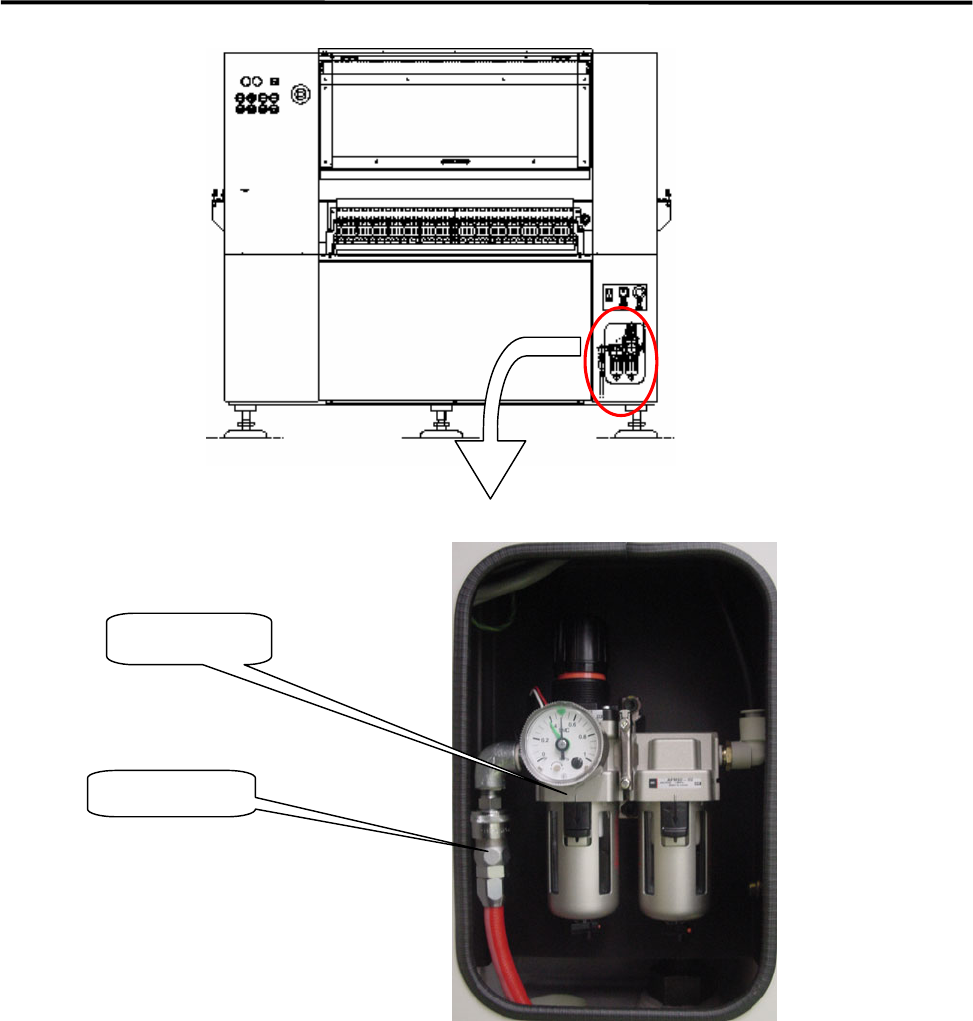

⑨ Connect an intake-side air coupler 65SN or 85SN (Nitto Kohki) or equivalent to the air regulator

coupler located on the rear of the machine. After the coupler is connected, make sure that the air

regulator’s reading is 0.5MPa(5.1 ㎏ f/c ㎡).

1 Installation

1-9

Intake-side air coupler

65SN/85SN (Nitto Kohki) or equivalent

Air coupler

ir regulato
