Backup Table L810
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC29-000414 CAP-PACK-SGLC6 4
2 FC30-002622A PLATE-BACK_UP_460L 1 PCB L810 Type
FC30-002621A PLATE-BACK_UP_400N 1 PCB L610 Type
3 FC09-004951A BRACKET-TOP SPACER 4
4 FC29-004515A DOG-BUT_UP_SENSOR 1
5 J70531080A PLATE_EXTENSION 2
6 FC29-004299A HOLDER-LOWER_BEARING_BUT 8
7 MC03-900098 BALL_BEARING 24
8 J7053793A LOWER LINK PIN 8
9 J70530797B LOWER LINK END 8
10 MC19-001123A SHAFT-LOWER_LINK_BUT 4
11 FC29-004298A HOLDER-UPPER_BEARING_BUT 8
12 J7053792A UPPER LINK PIN 16
13 FC30-002536A PLATE-UPPER_FREE_LINK 2
14 FC30-002532A PLATE-UPPER_DRIVING_LINK 2
15 FC18-901994 SHOULDER SCREW 1
16 FC29-004429A STOPPER-URETHAN_CUSHION 1
17 J61071108A BUT_SPRING 1
18 FC30-002620A PLATE-LOWER_BUT 1
19 J3212002A PHOTO SENSOR 1
20 FC09-004804A BRACKET-BUT_UP_SENSOR 1
Page
+$1:+$
106
DECAN
L2

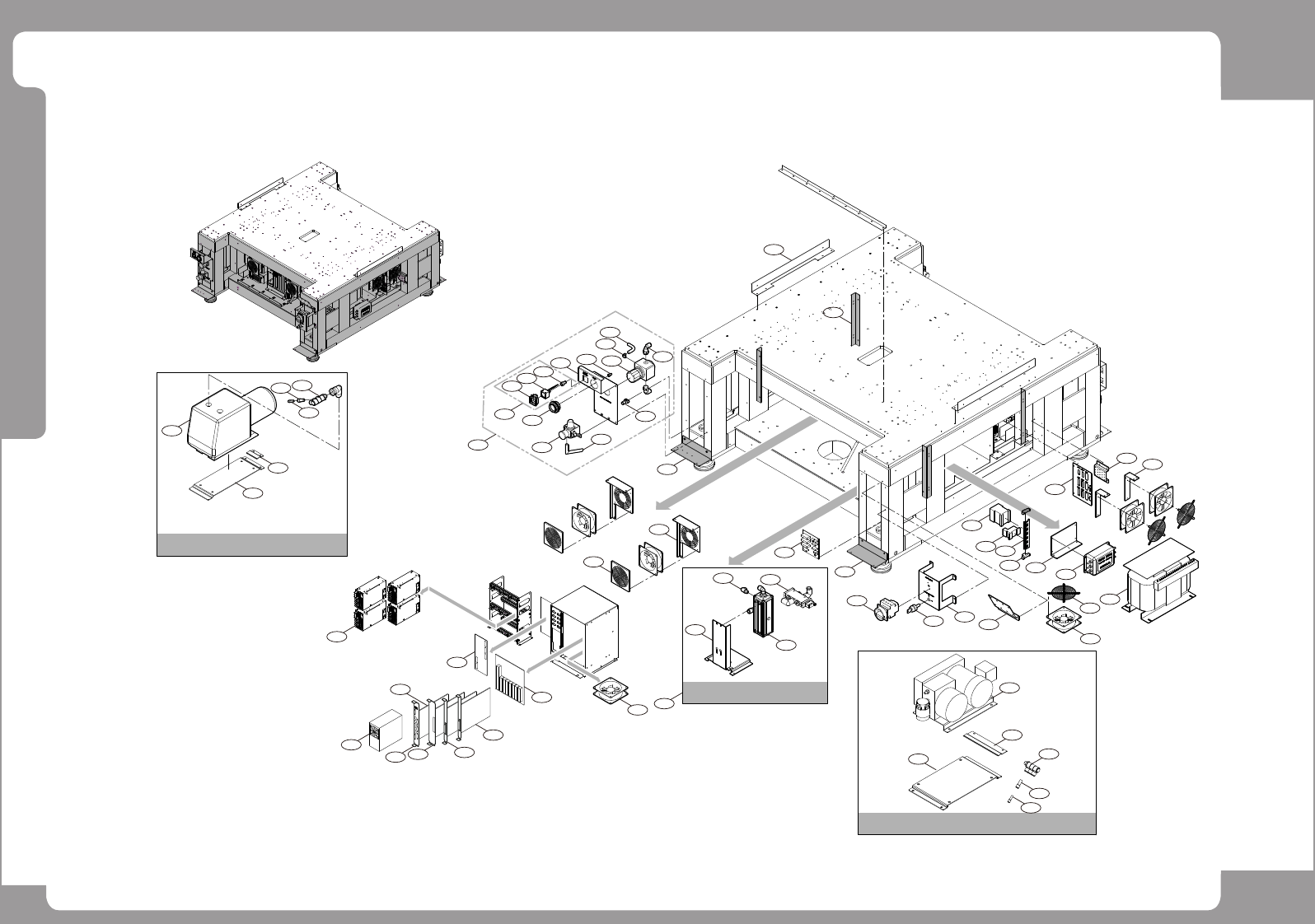

Base Frame (Front)
25
39
34
55
23
22
21
18
15
16
13
70
53
10
29
24
1
26
38
21
61
62
19
42
47
48
49
37
64
73
44
45
43
46
50
51
52
27
40
41
17
14
5
5
6
7
A
B
Vaccum Generator
69
3
2
72
8
4
63
36
37
30
71
33
35
Vaccum Pump (To #407)
Vaccum Pump (From #408)
31
35
36
32
Page
+$1:+$
107
DECAN
L2
Base Frame (Front)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 CD03-001030 HARD DRIVE 1 CD03-000060/ CD03-001020
2 EP06-000384 SUPPLY,POWER,AC-DC 1
3 CD05-000059 MOTHERBOARD 1
4 AM03-011927D ASSY,BOARD-DEVICENET MASTER BOARD REV.D 1 J9060364A / AM03-011927C
5 EP06-000338 PROCESSOR BOARD 2
6 EP10-900170 BACKPLANE 1 EP10-001013A
7 AM03-014333A CABLE ASSY-CPU-BOX FAN 1
8 AM06-000359C ASSY,PCB SMD-SM400_VISION_IF BD 1
10 FC09-003434A INLET FAN BKT 2
A AM03-011162A ASSY,AIR-FRONT AIR PANEL 1
13 HP06-900043 JOINT 1
14 HP06-900026 ELBOW FITTING 2
15 HP06-900191 ELBOW_MIN I_FITTING 1
16 HP09-900108 REGULATOR 1
17 HP06-900195 UNION_Y_FITTING 1
18 FC09-003398A FRONT AIR PANEL 1
19 HP09-900123 REGULATOR 1
20 TE07-900096 GAUGE 1
B AM03-008872A ASSY,AIR-DIGITALGAUGEFLEX 1
21 HP06-000278 FITTING 1
22 HP09-000150 DIGITAL GAUGE 1
23 FC09-000043 BRACKET SAMHT-P4-F+G 1
24 FC09-001657D BRACKET-BKT VAC_GEN;2.0 1 FC09-001657B/ FC09-001657C
25 HP06-900204 FITTING 1
26 AM03-005245A ASSY,AIR-VACUUM ASSY 1
27 HP11-000058 VACUUM GENERATOR 1
29 HP14-000978 SOL-VALVE 1 HP14-900045
30 HP11-000193 PUMP 1
31 EP07-901508 COOLING FAN 5
32 HP04-900011 FINGER_GUARD 3
33 FC05-001127A BASE-DECAN_AIR_PUMP-2 1
