Page +$1:+$ 134 DECAN L2 X Frame (2/2) 20 35 37 45 26 25 22 29 16 23 5 42 43 6 7 8 1 2 17 18 30 21 4 12 10 13 38 39 40 3 14 24 15 19 36 41 11 9 44 27 28 38 39 46 47 48 33 31 32 34 A A 49 50 51
Page
+$1:+$
133
DECAN
L2
Page
+$1:+$
134
DECAN
L2

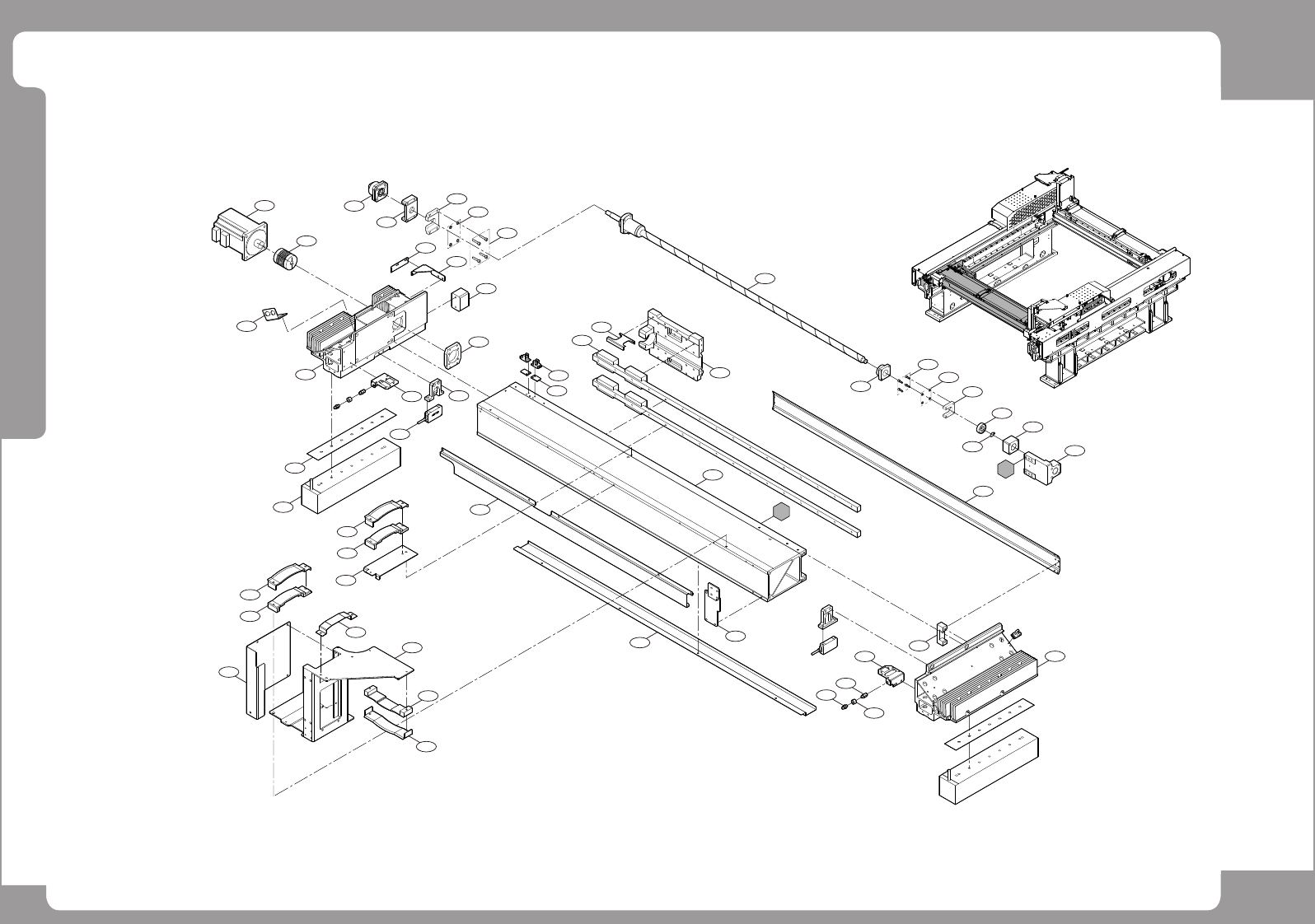

X Frame (2/2)
20
35
37
45
26
25
22
29
16
23
5
42
43
6
7
8
1
2
17
18
30
21
4
12
10
13
38
39
40
3
14
24
15
19
36
41
11
9
44
27
28
38
39
46
47
48
33
31
32
34
A
A
49
50
51
Page
+$1:+$
135
DECAN
L2
X Frame (2/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP08-000185 SERVO_MOTOR 1
2 MC22-000092 COUPLING 1
3 FC09-004585A SERVO CONNECTOR BKT 1 J70530690B
4 FC30-001671E PLATE-Y1 PROFILE 1 FC30-001671A/ FC30-001671B/ FC30-001671C/
FC30-001671D
5 FC29-002665B DOG2_SENSOR_Y 1 FC29-002665A
6 FC09-003449B DOG2_BKT 1
7 FC29-001212B CUSHION CRASH 1 FC29-001212A
8 FC09-003189A BRACKET_SPACER 1
9 FC09-003179A BKT_ENCODER_Y 2
10 FC28-000159 LINEAR_SCLAE(ENCODER HEAD) 2
11 FC30-001829B CONNECT_PLT_L-T 1 FC30-001829A
12 FC36-000080A SHEET-COIL_SPACER 2
13 EP08-000198 LINEAR-MOTOR 2
14 EP19-900114 PHOTO_SENSOR 3
15 J70541295A X_LIMIT_SENSOR_PLATE 2
16 FC39-001351A X_FRAME 1
17 FC15-002046A COVER_CABLE_X 1
18 FC36-000074A SHEET_X-LOWER 1
19 FC09-003388A CHAIN_Y_SUPPORT 1
20 FC30-001674B CONNECT_PLT_R 1 FC30-001674A
21 FC07-001225A BLOCK_B-SCREW_CV 1
22 FC30-001672D PLATE-Y2 PROFILE 1 FC30-001672A/ FC30-001672B/ FC30-001672C
23 FC36-000092A SHEET_B-SCREW_CV 1
24 FC05-000514A BASE HEAD CARRIER 1 FC05-000336A
25 FC29-002632B DOG_SENSOR_X 1 FC29-002632A
26 MC13-900032 LM GUIDE 2
27 MC04-900012 SUPPORT_UNIT 1
28 FC29-004428A CUSHION_X_FRONT 1 J72541003A
29 MC13-000125 BALL SCREW 1
30 FC29-004430A CUSHION X REAR 1 J72541005B
