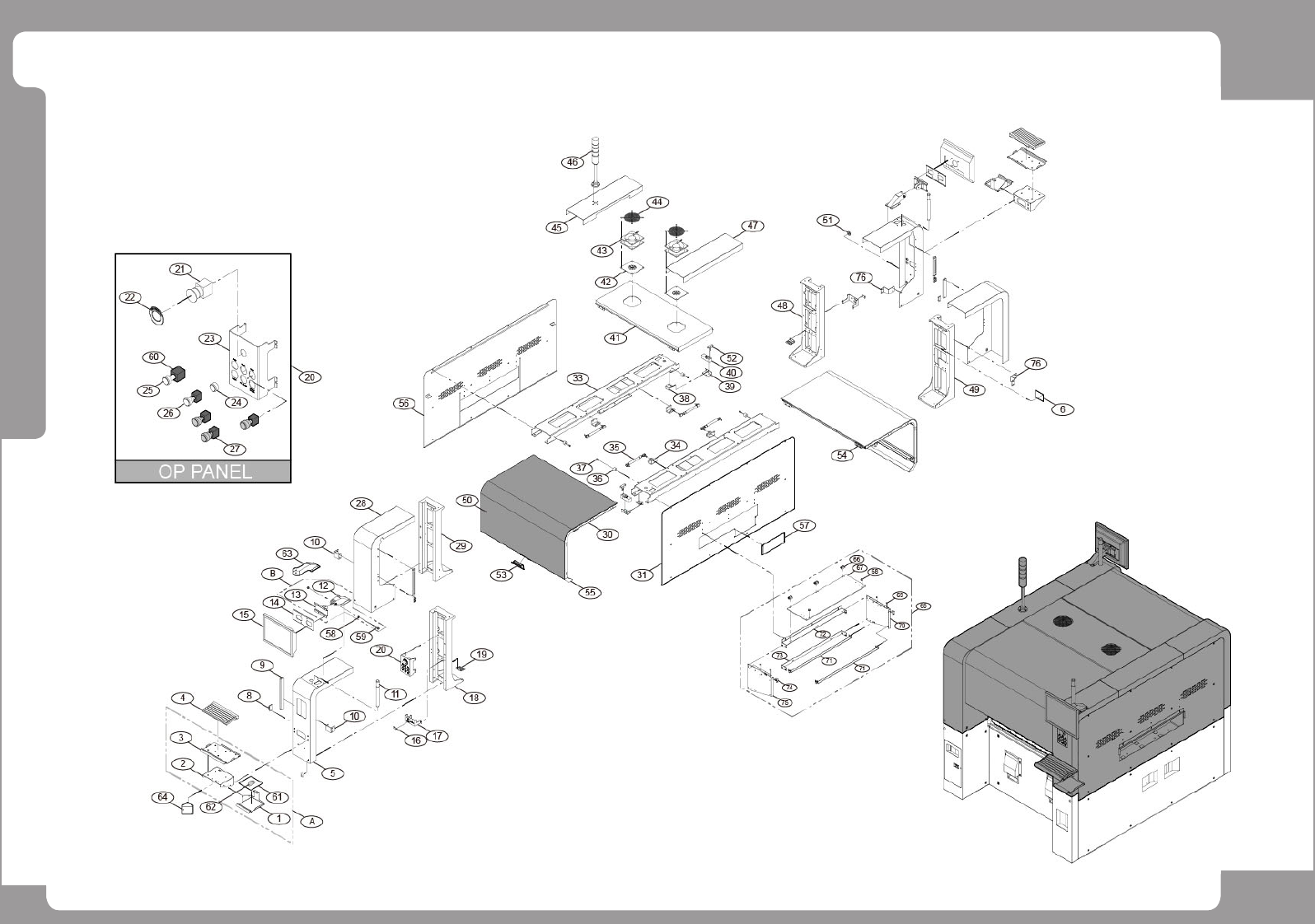

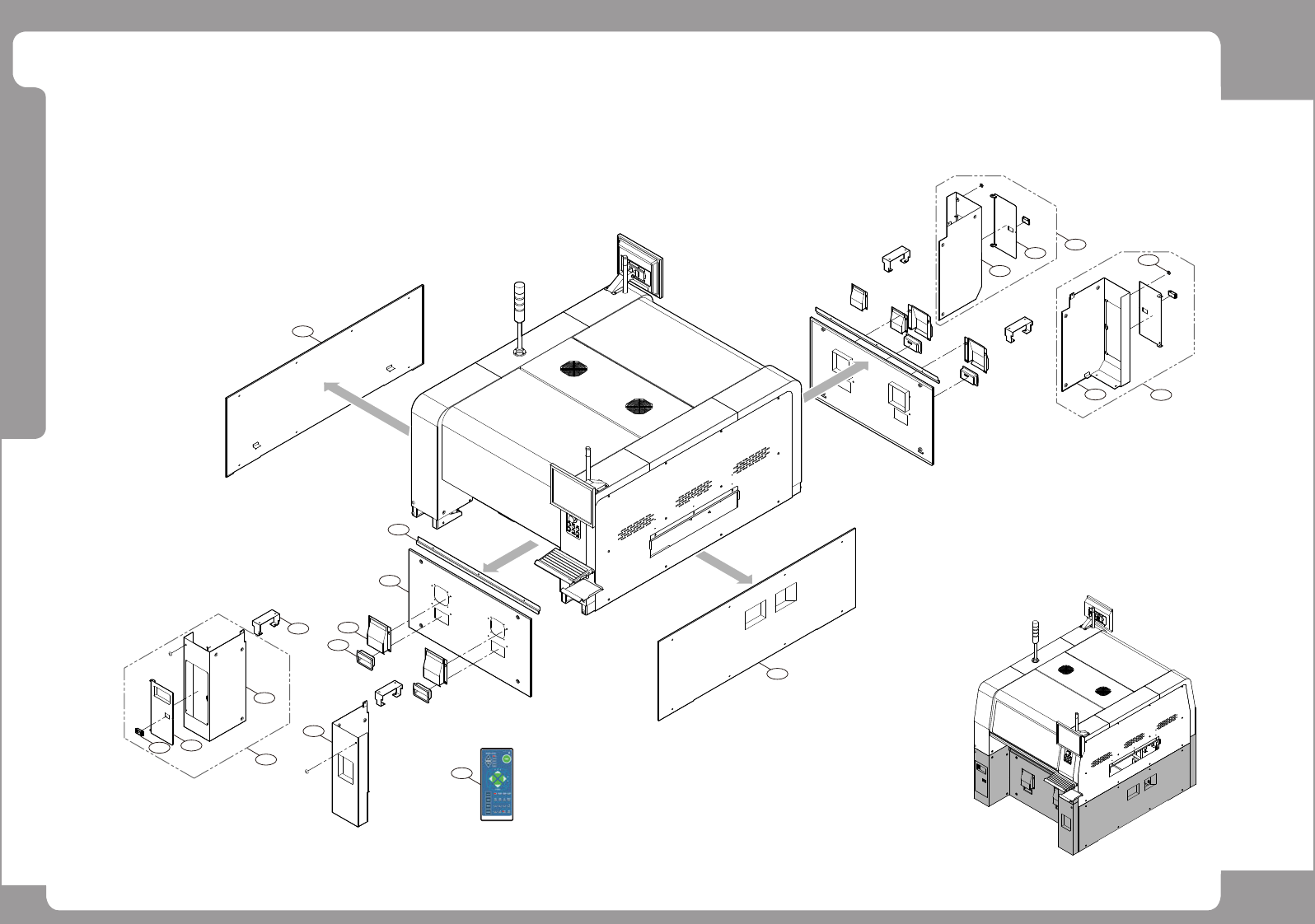

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-010723A ASSY,COVER-COVER TOTAL 1
B AM03-011036A ASSY,COVER-LOWER FL 1
1 FC29-900217 SLIDE_LATCH 3
2 FC15-002083A DOOR FRONT 1
3 FC15-002082A LOWER FL 1
4 FC15-002066A LOWER FR 1
5 FC15-001147B FB SIDE COVER 4 FC15-001147A
6 FC29-900144 DRAWER_PULL_HD 4
7 FC15-002184B INLET FAN COVER 4
8 FC15-002183B LFM COVER 2
9 J70521088B FB COVER 2
10 FC15-002062A SIDE LOWER L 1
11 FC15-002061A SIDE LOWER R 1
C AM03-018772A ASSY,COVER-LOWER RR 1 AM03-011033A(~#22)
12 FC15-002079B LOWER RR 1 FC15-002079A
13 FC15-002080A DOOR REAR 2
D AM03-018773A ASSY,COVER-LOWER RL 1 AM03-011034A(~#22)
14 FC15-002081B LOWER RL 1 FC15-002081A
15 FC29-900019 SET_CAP 4
16 AM03-022731A TEACHING BOX ASSY 2
