Page +$1:+$ 19 DECAN L2 Feeder Base NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference A AM03-014087 A FEEDER BASE ST AGE T OT AL 1 AM03-012402A 1 FC09-001200C TOP _PLA TE_BACK_HOLE 1 FC09-001200A 2 F…
Page
+$1:+$
18
DECAN
L2
Feeder Base
9
7
16
15
5
3
1
2
6
12
14
8
5
5-1
15-1
15-1
15-2
5-2
15-3
15-2
5-2
15-3
5-2
A
11
13
16-1
10
Retrofit A-type
Retrofit B-type
17
Bowl Feeder Adaptor
Page
+$1:+$
19
DECAN
L2
Feeder Base
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-014087A FEEDER BASE STAGE TOTAL 1 AM03-012402A
1 FC09-001200C TOP_PLATE_BACK_HOLE 1 FC09-001200A
2 FC09-000901C TOP-PLATE-S 1 FC09-000901A
3 FC07-000033B VERTICAL LOCATOR 1
4 J70570262C CAP_TOP_PLATE 5
5 AM03-014393A ASSY,COVER_FEEDER_T_SLOT_SUB 2 FC15-002403A STANDARD
5-1 FC15-002954A COVER_NOCE_STAGE_C 1
5-2 FC07-001595A BLOCK_GUIDE_B_NONE_STAGE 17
6 HP06-900027 FITTING 2 HP06-900047
7 FC05-000469A FEEDER_BASE_STAGE 1
8 J7057213A SIDE CABLE COVER-FB 2
9 FC18-901830 BUTTON HEAD CAP SCREW 6
10 FC14-000876 COUPLER 60 HP06-900169
11 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
12 AM03-000694A ASSY,BOARD-FBLN 1
13 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1
14 AM03-000693A ASSY,BOARD-FBRN 1
15 AM03-014391A ASSY,COVER-RETROFIT_A_TYPE 1 1 STAGE CAMERA OPTION
15-1 FC15-002834A COVER_NONE_STAGE_SUB 1
15-2 FC15-002832A COVER_NONE_STAGE 1
15-3 FC07-001594A BLOCK_GUIDE_B_NONE_STAGE 9
16 AM03-014392A ASSY,COVER-RETROFIT_B_TYPE 1 NO STAGE CAMERA OPTION
16-1 FC15-002833A COVER_NONE_STAGE-2 1
17 AM03-025263A ASSY,ETC,IMS-BF ADAPTOR ASSY 1 Bowl Feeder Adaptor (Adapter)
Page
+$1:+$

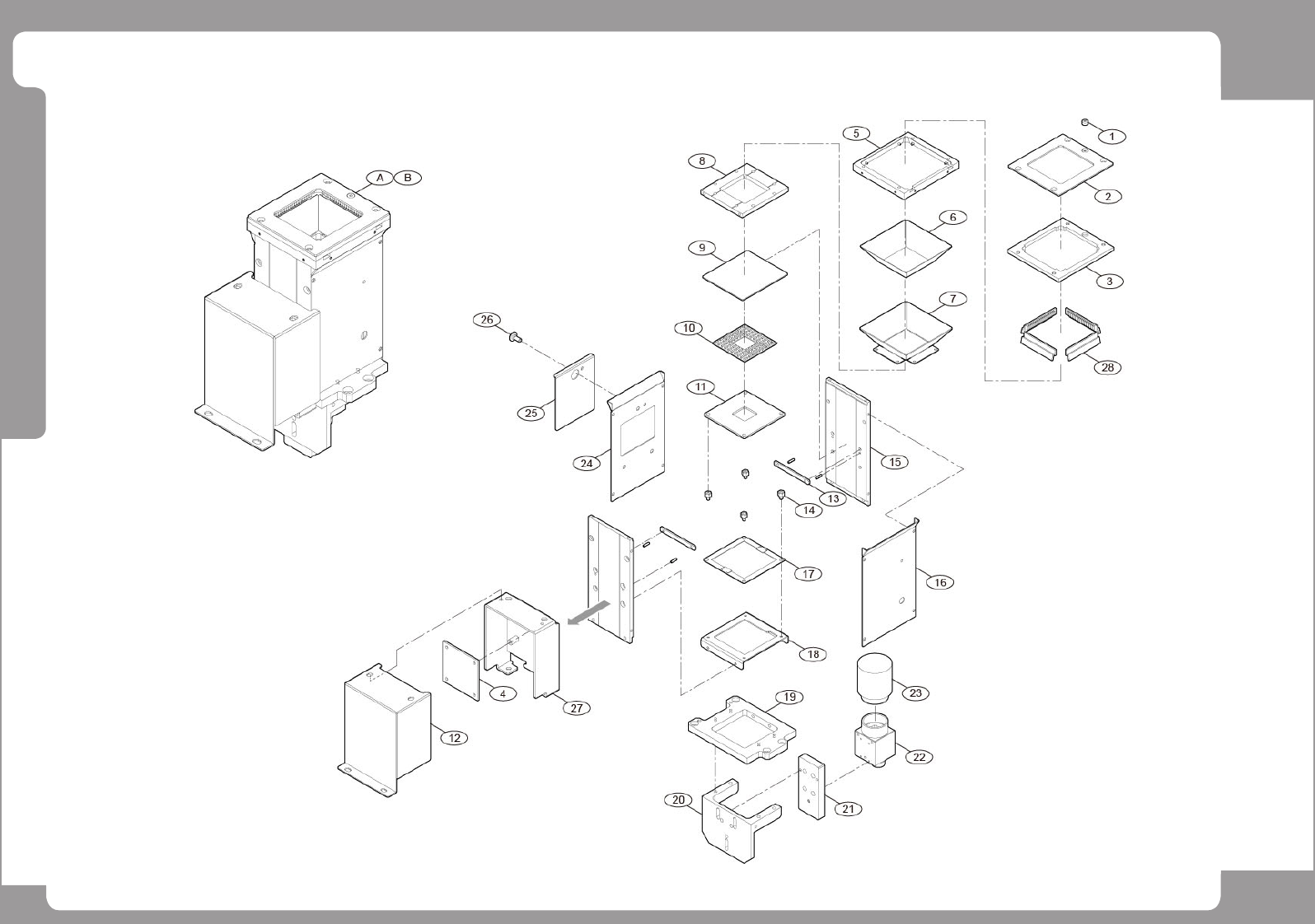

20
DECAN
L2
Stage CAM Ass’y
