Page +$1:+$ 22 DECAN L2 Docking Cart (1/4) 4 11 13 18 21 3 2 1 4 19 19 14 4 5 6 8 9 7 17 18 21 20 12 10 A-1 15 16 22 Bowl Feeder Adaptor
Page
+$1:+$
21
DECAN
L2
Stage CAM Ass’y
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-015218A ASSY,OPTICS-STAGE_MEGA_35_ASSY 1 AM03-007707B
B AM03-015217A ASSY,OPTICS-STAGE_MEGA_45_ASSY 1 AM03-007727B
1 J7153373A FIDUCIAL_DISK 1
2 FC15-001295B LIGHT_COVER 1
3 FC09-002220A LIGHT_G_1 1
4 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1
5 J90600075B STAGE SIDE LIGHT BOARD ASSY 1
6 EP15-000010A REFLECT_SHEET 4
7 FC09-002223A LIGHT GUIDE 4
8 FC15-001294A PROFILE_2 1
9 EP12-000044A GLASS 1
10 J90600073C LED98-9 BOARD ASSY STAGE INNER 1
11 PT02-000048A DIFFUSER 1
12 FC15-002395B COVER-STAGE_CAM_BOARD 1 FC15-002395A
13 FC09-002218A GLASS_STOP 2
14 FC29-900610 HEX SUPPORT 4
15 FC15-001293A PROFILE_1 1
16 FC15-001291A COVER_2 1
17 FC09-002222A PCB_BASE_2 1
18 FC09-002221A PCB_BASE_1 1
19 FC05-000225A BASE 1
20 J7159120D CAMERA_STAND 1
21 JS759001A CAMERA_HOLDER 1
22 J90600074B STAGE OUTER LIGHT BOARD ASSY 4
23 FC09-003893A BKT_S_CAM_BOARD 1
24 FC15-00 1290A COVER_1 1
25 FC15-001292A COVER_COMP 1
26 J7066008D LINK_SHAFT_1 1
Page
+$1:+$
22
DECAN
L2

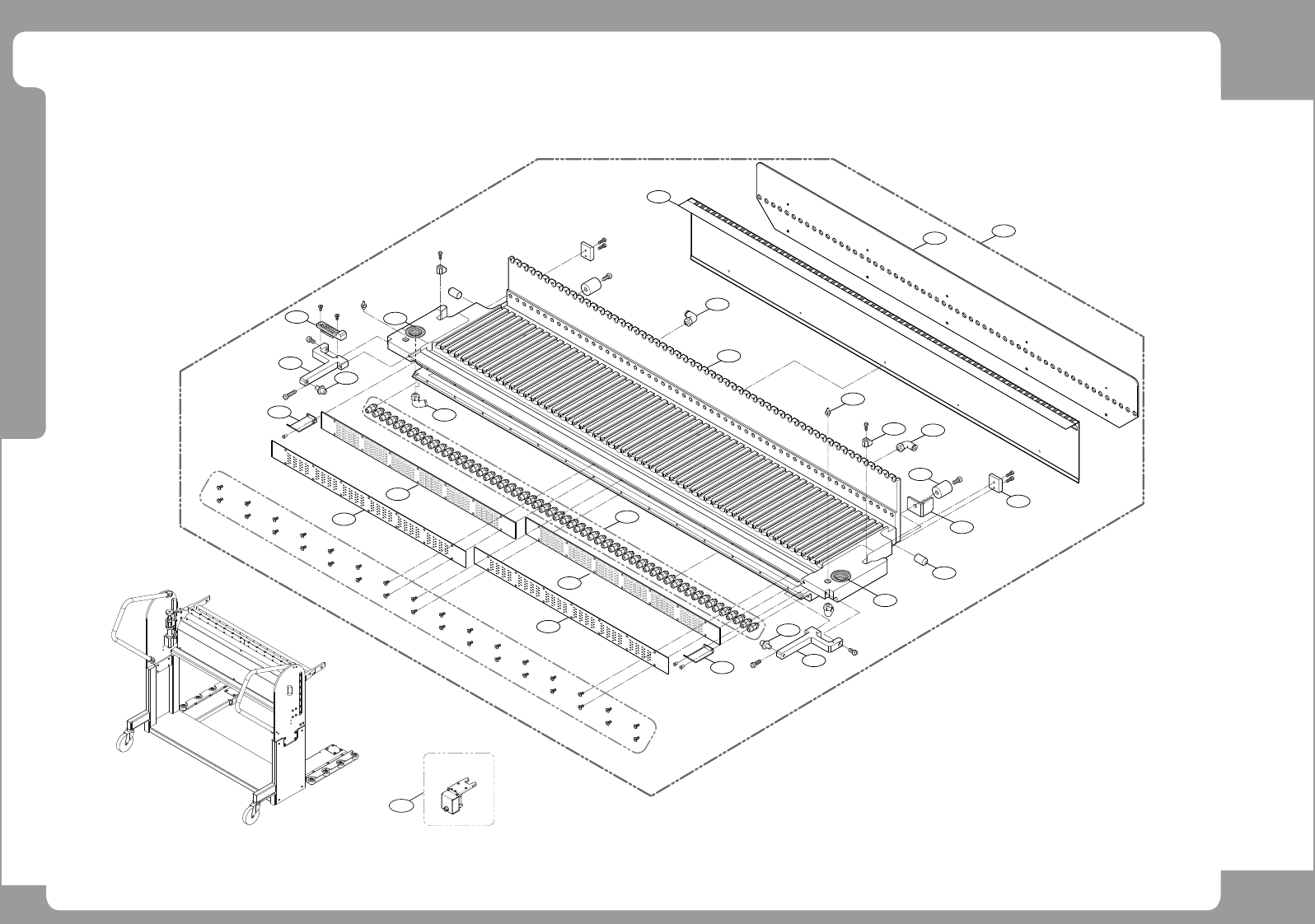

Docking Cart (1/4)
4
11
13
18
21
3
2
1
4
19
19
14
4
5
6
8
9
7
17
18
21
20
12
10
A-1
15
16
22
Bowl Feeder Adaptor
Page
+$1:+$
23
DECAN
L2
Docking Cart (1/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90571015A FEEDER_BASE_ASSY_FRONT-DC 1
1 J90600354B FEEDERBASE_RIGHT_COVER_PCB_ND 1
2 J90600353B FEEDERBASE_LEFT_COVER_PCB_ND 1
3 FC14-000876 COUPLER 56 HP06-900169
4 HP06-900027 FITTING 4
5 AM03-0006345A ASSY,BOARD-FBLN 1
6 AM03-0006346A ASSY,BOARD-FBRN 1
7 FC30-001081A TOP PLATE S DCN 1
8 J90571009A DC-FEEDER_BASE_MODULE 1
9 FC09-002060A BRACKET-SME_DC_BKT 2
10 FC30-001080A TOP PLATE B DCN 1
11 J7257009A CUSHION-Y 2
12 FC29-900535 URETHANS 2
13 HP15-900008 BALL PLUNGERS 2
14 J7257013A CUSHION-LOCATION PIN 2
15 HP06-900300 PLUG 2
16 J7057236A SLOT BUSH 1
17 MC06-900001 CIRCULAR BUSH 1
18 J7057237C ANTI-PITCH ARM 2
19 J7057238B ANTI-PITCH PIN 2
20 J7257014A PROBE HOLDER 1
21 J7057239B CABLE HOLDER 2
AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 1 AM03-001731B
22 AM03-025263A ASSY,ETC,IMS-BF ADAPTOR ASSY 1 Bowl Feeder Adaptor (Adapter)
