Page +$1:+$ 320 DECAN L2 Safety Contro l Board (2/8)
Page
+$1:+$
319
DECAN
L2
Safety Control Board (1/8)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010953B CABLE ASSY-CONV_SUB_IF_EXT 1
2 AM03-010952B CABLE ASSY-CONV_SUB_IF 1
3 AM03-011245B CABLE ASSY-CV_RDF_PWR_EXT 1 AM03-011245A
4 AM03-010841C CABLE ASSY-CONV_I-F_R_FDR_PWR_J2R 1
Page
+$1:+$
320
DECAN
L2
Safety Control Board (2/8)

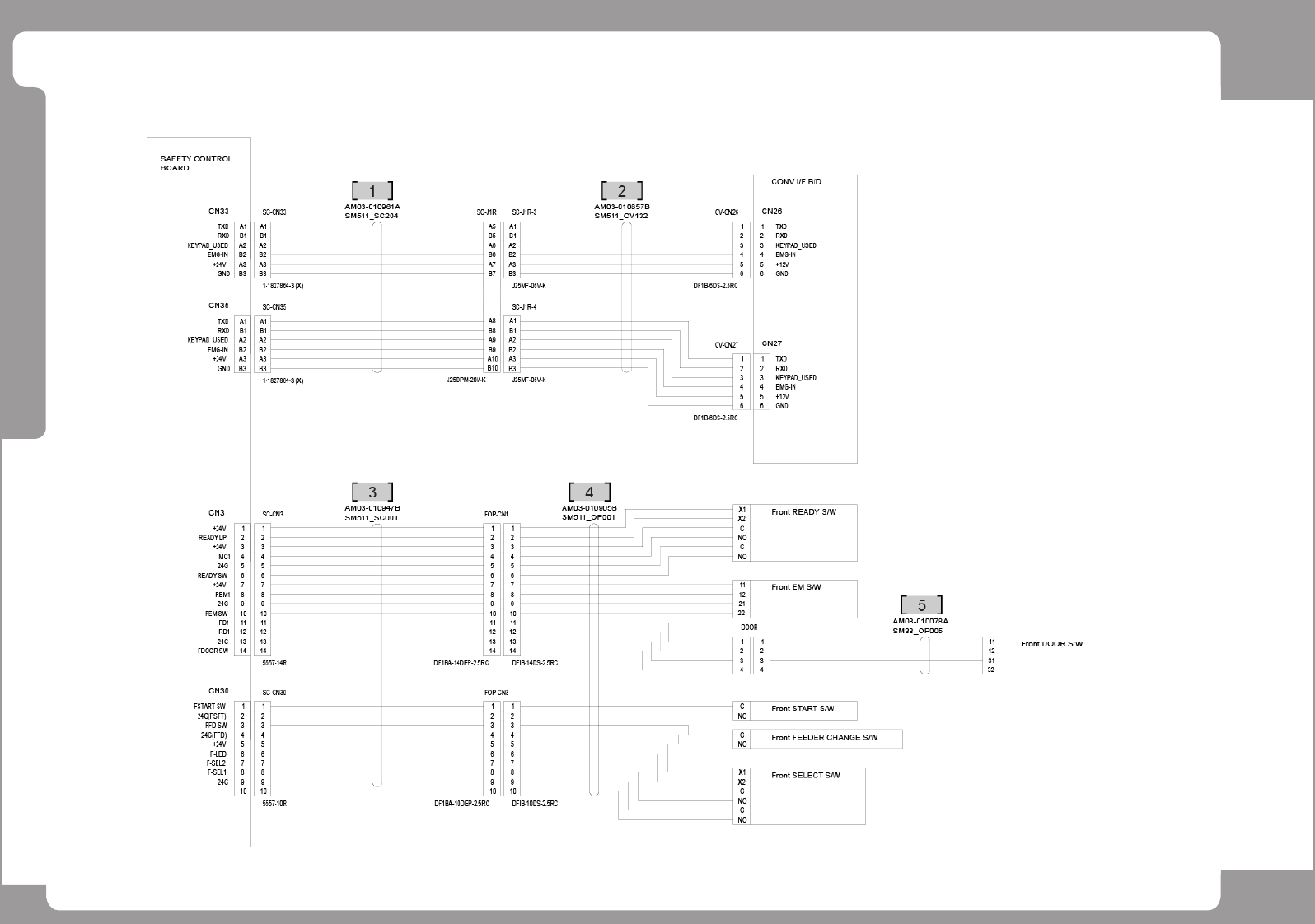

Page
+$1:+$
321
DECAN
L2
Safety Control Board (2/8)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010961A CABLE ASSY-BD_PW_SC_J1R 1
2 AM03-010857C CABLE ASSY-T_BOX_HOST_J1R 1
3 AM03-010947B CABLE ASSY-F_OP_PANEL_IF 1
4 AM03-010905B CABLE ASSY-OP_PANEL_ASSY 1
5 AM03-010078A CABLE ASSY-FRONT_REAR_DOOR_SW 1
