Page +$1:+$ 365 DECAN L2 Motor IF Board (16/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-014690A CABLE ASSY -RSW_DR V_COMMAND 5 AM03-010981A 2 AM03-014687A CABLE ASSY -RSW_MOT OR_PWR …
Page
+$1:+$
364
DECAN
L2
Motor IF Board (16/18)
Page
+$1:+$
365
DECAN
L2

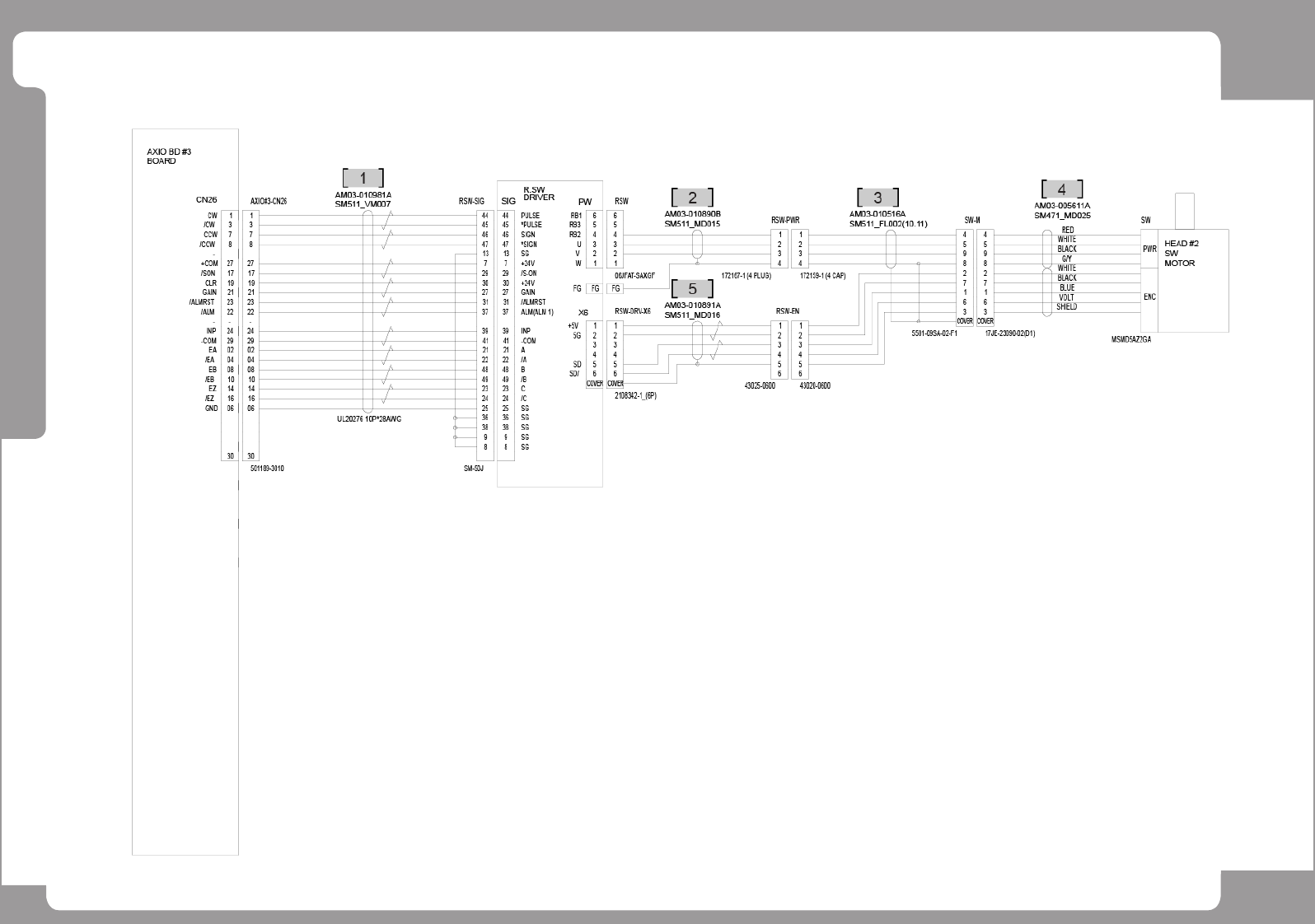

Motor IF Board (16/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-014690A CABLE ASSY-RSW_DRV_COMMAND 5 AM03-010981A
2 AM03-014687A CABLE ASSY-RSW_MOTOR_PWR 1 AM03-010890B
3 AM03-026274A CABLE ASSY-FLAT 2 1 AM03-010516C
4 AM03-015237A CABLE ASSY-SWING MOTOR 1
5 AM03-010891A CABLE ASSY-RSW_MOTOR_ENC 1
Page
+$1:+$
366
DECAN
L2
Motor IF Board (17/18)
