Page +$1:+$ 60 DECAN L2 Full Dual Conveyor (1/12)
Page
+$1:+$
59
DECAN
L2
Page
+$1:+$
60
DECAN
L2

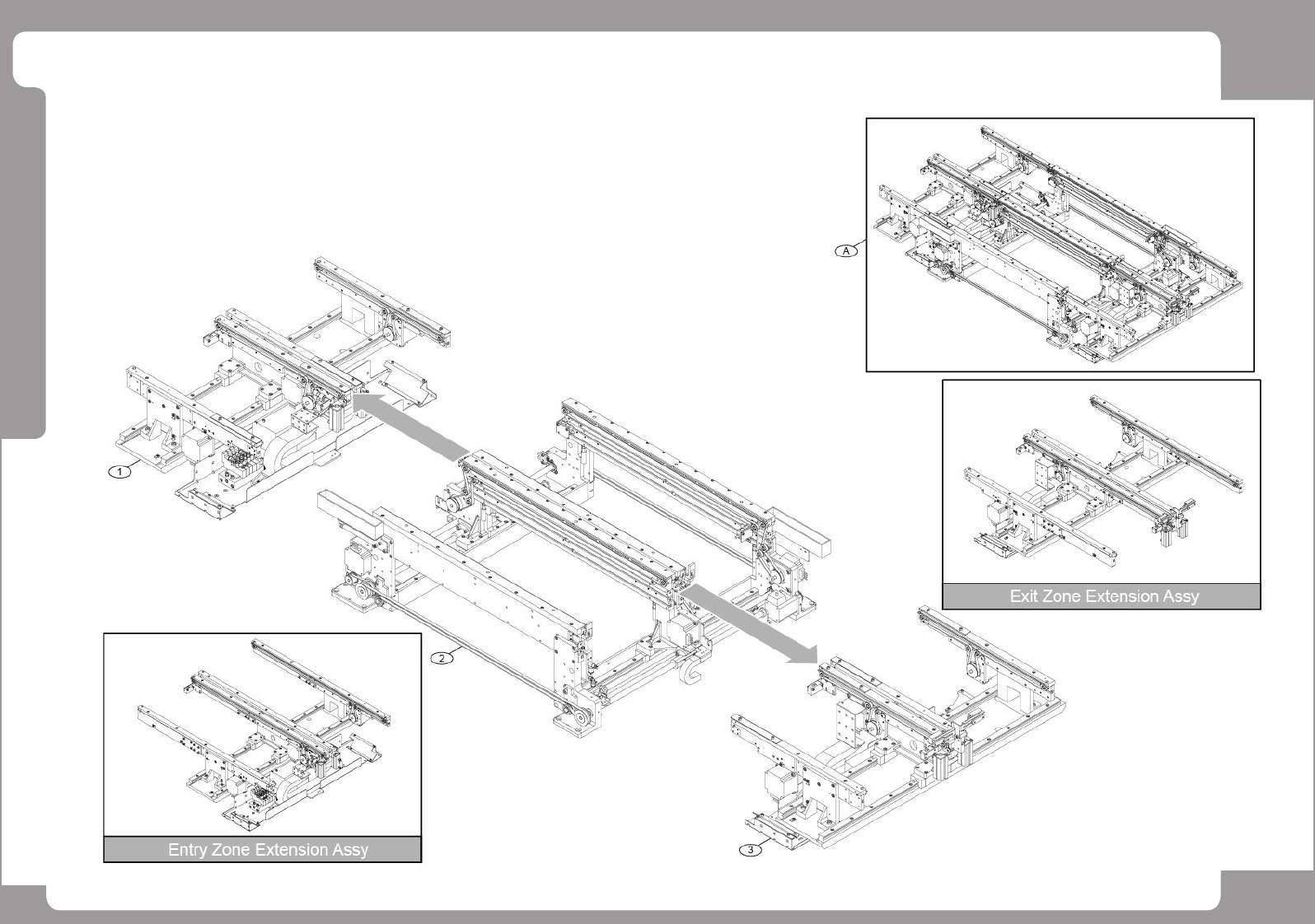

Full Dual Conveyor (1/12)
Page
+$1:+$
61
DECAN
L2
Full Dual Conveyor (1/12)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-011121A CONVEYOR-FD_LR_ASSY 1
AM03-011693A ASSY,CONVEYOR-FD_LR_EX_PT 1
AM03-011391A CONVEYOR-FD_LR_EX_ASSY 1
AM03-011695A ASSY,CONVEYOR-FD_RL_EX_PT 1
AM03-011397A CONVEYOR-FD_RL_EX_ASSY 1
1 AM03-011700A ASSY,CONVEYOR-FD_ENTRY_ZONE_PT 1
AM03-011123A CONVEYOR-FD_ENTRY_ZONE_LR_ASSY 1
AM03-011702A ASSY,CONVEYOR-FD_ENTRY_ZONE_EX_PT 1
AM03-011393A CONVEYOR-FD_ENTRY_ZONE_LR_EX_ASSY 1
2 AM03-010588A WORK_ZONE_ASSY_LR 1
AM03-011604A WORK_ZONE_ASSY_RL 1
3 AM03-011701A ASSY,CONVEYOR-FD_EXIT_ZONE_PT 1
AM03-011122A CONVEYOR-FD_EXIT_ZONE_LR_ASSY 1
AM03-011703A ASSY,CONVEYOR-FD_EXIT_ZONE_EX_PT 1
AM03-011392A CONVEYOR-FD_EXIT_ZONE_LR_EX_ASSY 1
